Description

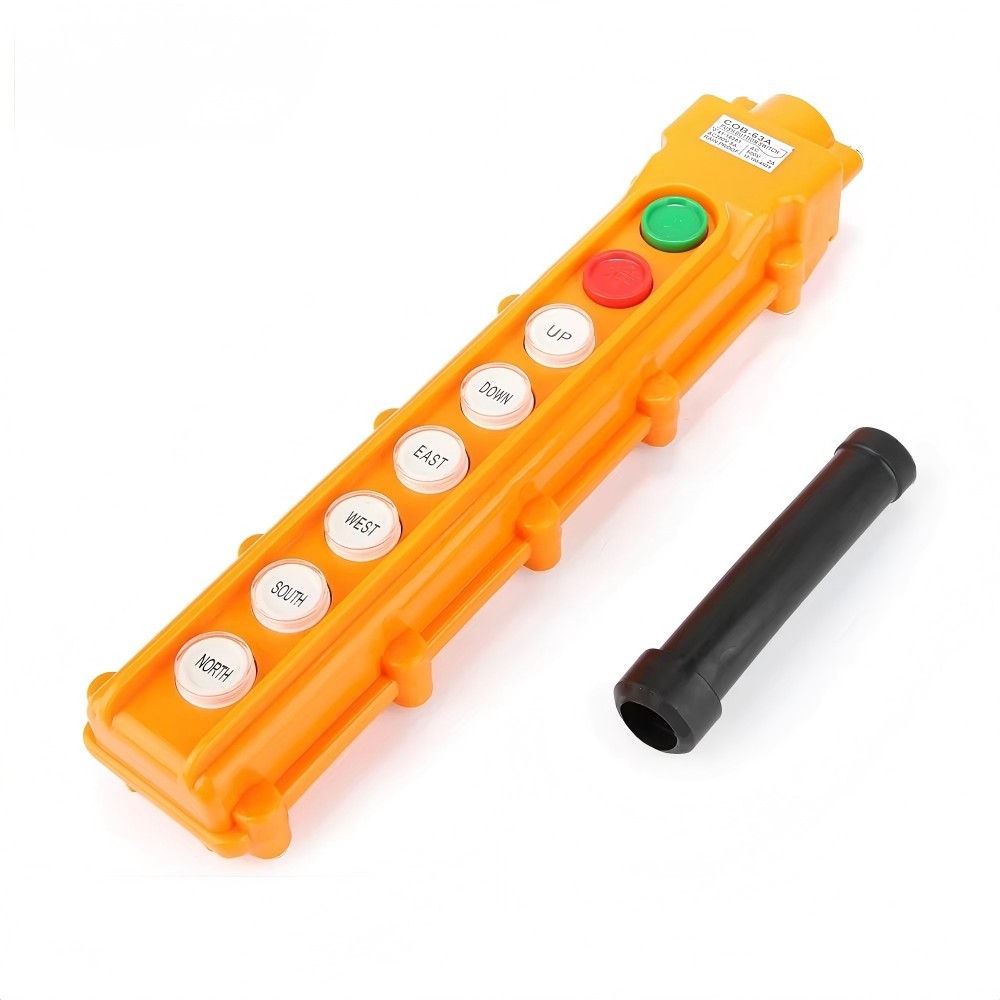

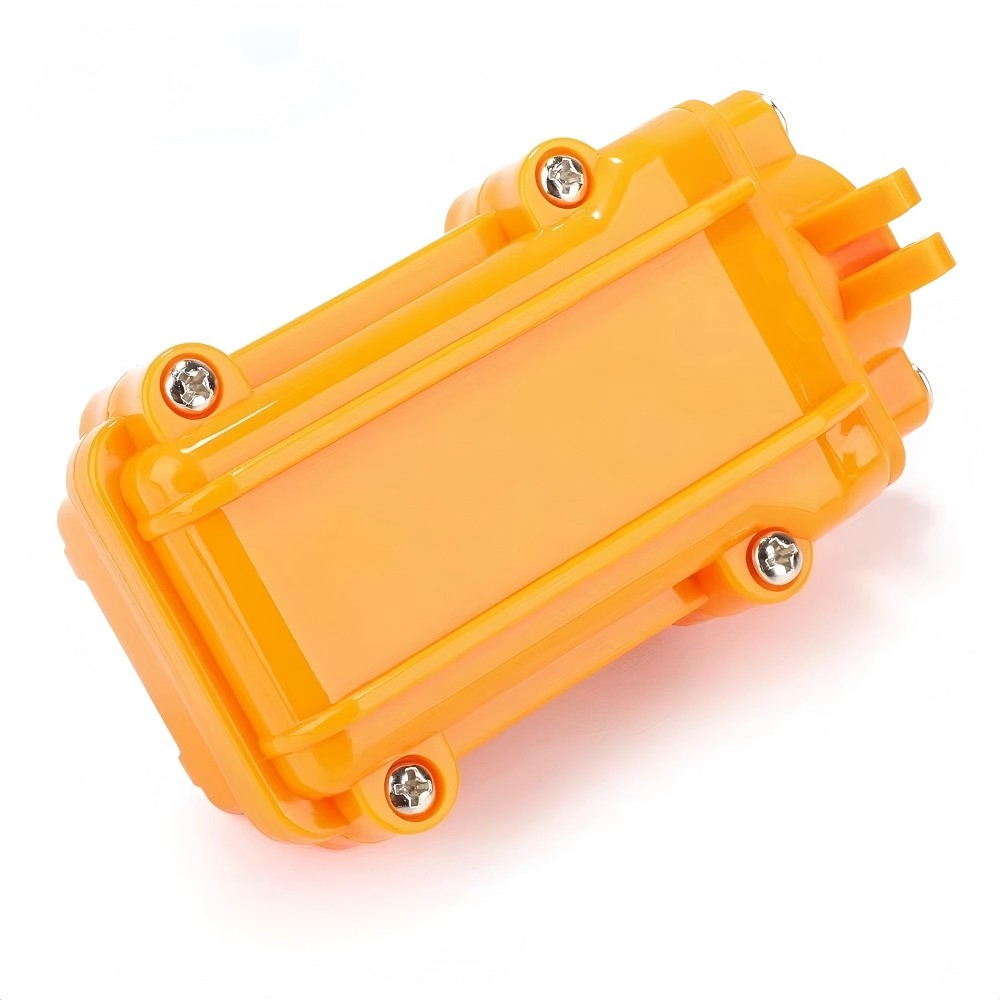

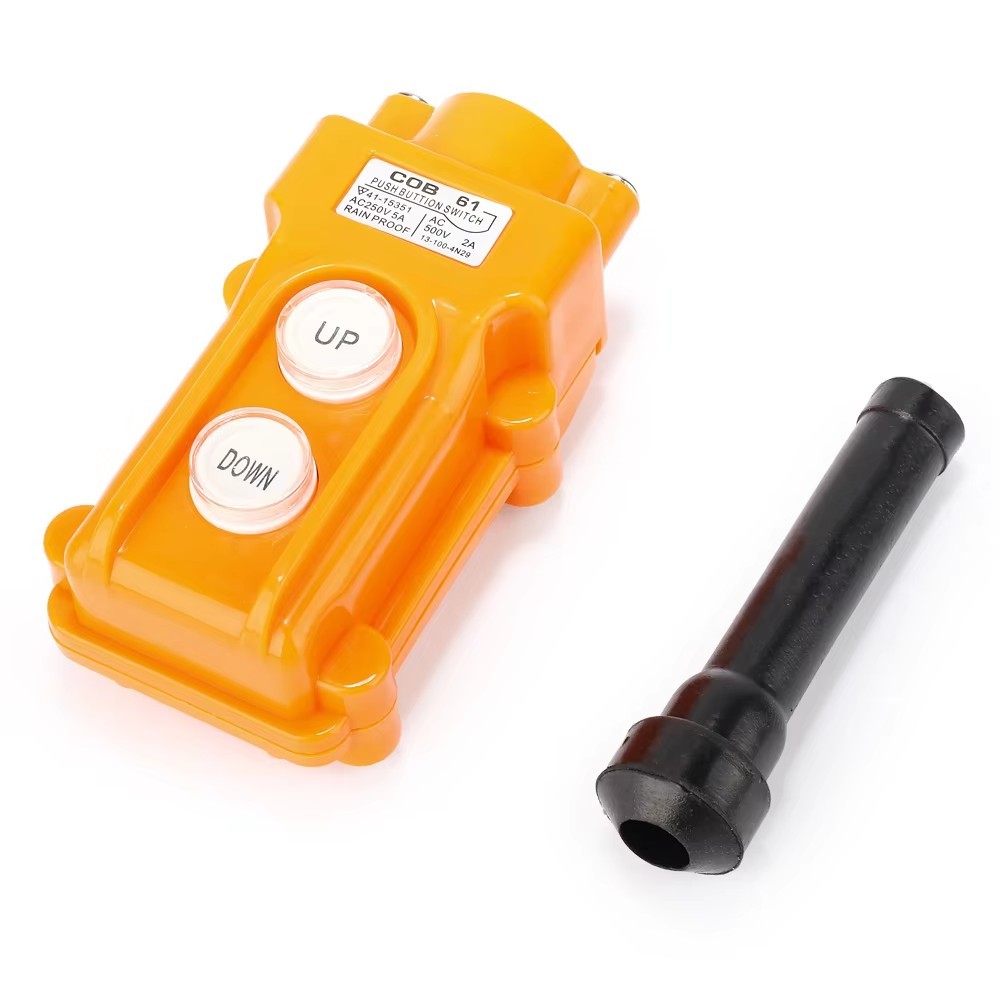

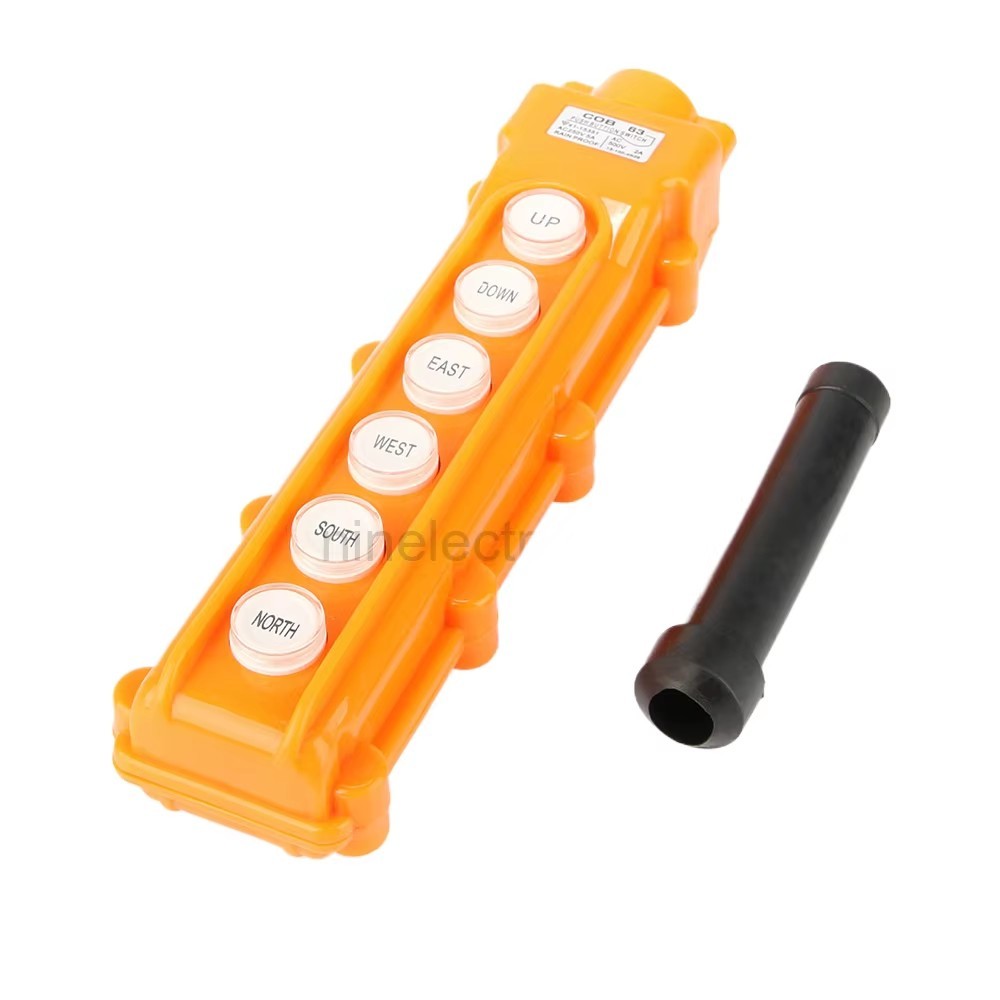

COB Push-button Switch
COB series is suitable for using in the circuit that frequency 50/60Hz, rated voltage up to AC380V or DC250V.
It is mainly used outdoor, and could be used in snowy, dusty environment, for the remote controlling of the crane, hoist and other equipment.
Technical data
Contact capacity
| Using category | Rated | working voltage Ue(V) |
Rated working current Ie(A) |
| AC-15 | 380 | 2.5 | |
| 220 | 4.5 | ||
| DC-13 | 220 | 0.3 | |
| 110 | 0.6 | ||
Overall and mounting dimensions(mm)
| Model | a | b | H1 | H2 | Φ |
| COB-61 | 68 | 50 | 127 | 224 | 2 or 15 |
| COB-62 | 68 | 50 | 197 | 308 | 2 or 15 |
| COB-63 | 68 | 50 | 257 | 368 | 2 or 15 |
| COB-64 | 68 | 50 | 317 | 428 | 18 |
| COB-65 | 68 | 50 | 377 | 488 | 18 |
