Description

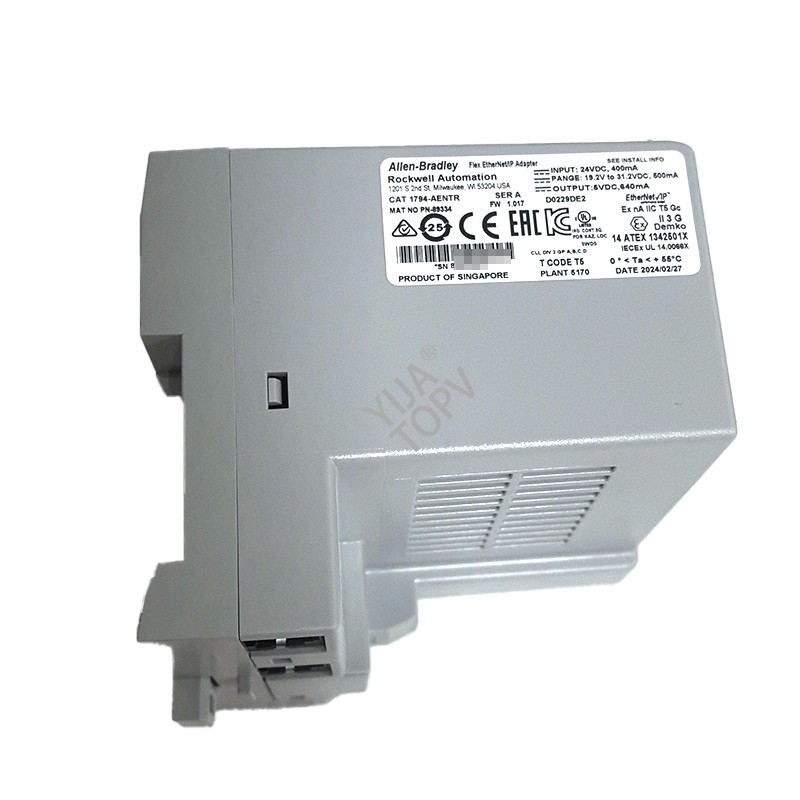

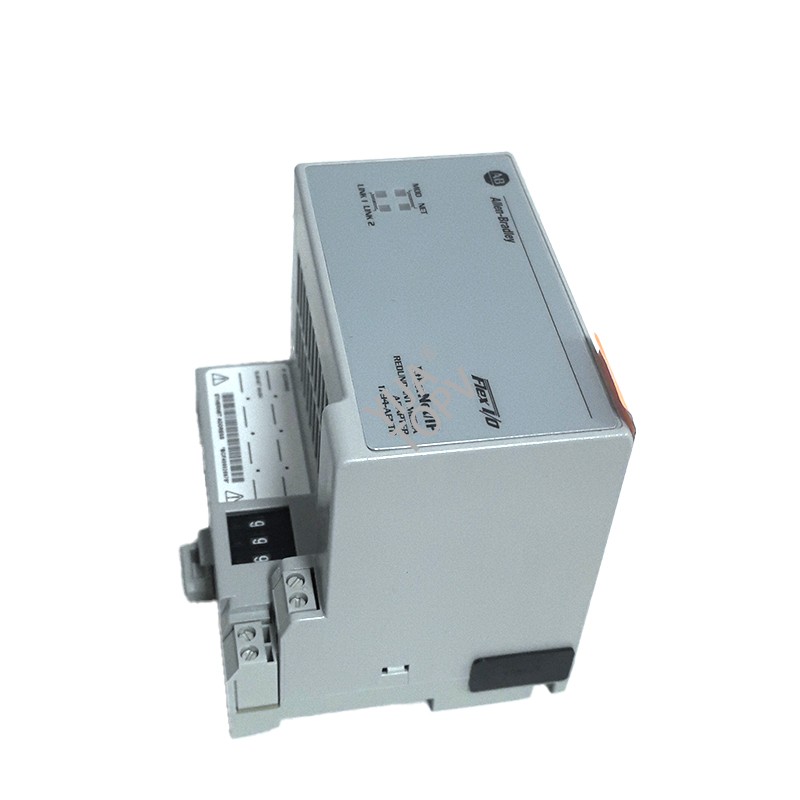

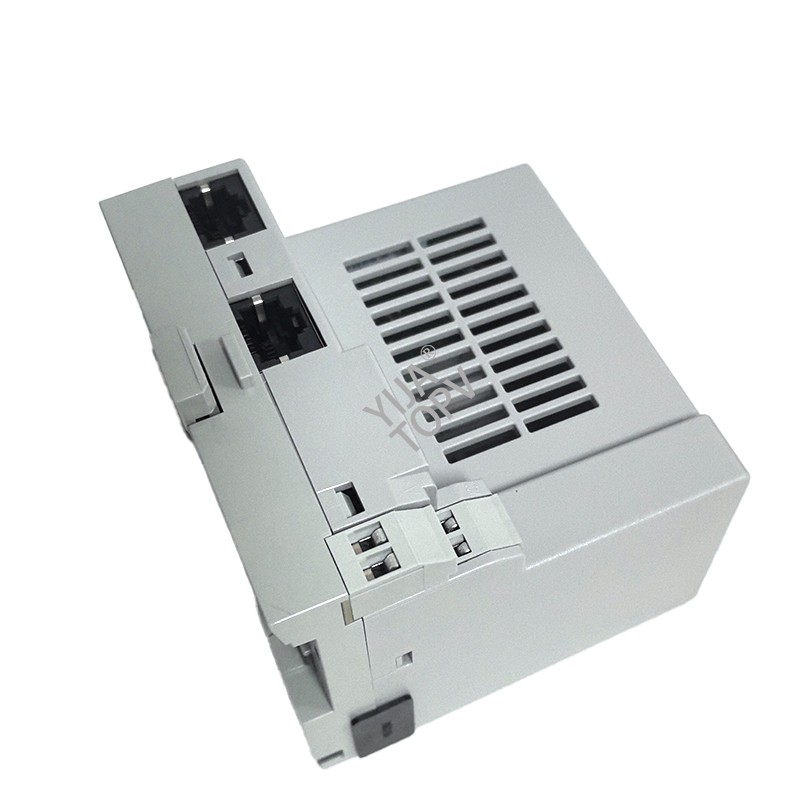

1794-AENTR ALLEN BRADLEY Flex EtherNet/IP Adapter
The 1794-AENTR is an Ethernet/IP adapter designed by Allen Bradley that is part of the Flex I/O 1794 series.
This adapter facilitates communication for up to eight I/O modules and offers dual communication rates of 10 and 100 Mbps for efficient data transfer.
Technical specifications for 1794-AENTR
| Manufacturer | Allen Bradley |
|---|---|
| Product Type | Ethernet/IP Adapter |
| Product Line | Flex I/O 1794 |
| Part Number | 1794-AENTR |
| UPC | 885630106144 |
| Weight | 0.56 lbs (0.26 kg) |
| I/O Module Capacity | 8 Modules |
| Communication Rates | 10 and 100 Mbps |
| Status Indicators | Included |
| Nominal Input Voltage | 24V DC |
| Input Voltage Range | 19.2-31.2V DC |
| Inrush Current | 18 Amps for 2 ms |
| Continuous Isolation Voltage | 50 Volts |
| Ethernet Connectors | 2 RJ45 Category 5 Connectors |
| Terminal Screw Torque | 0.8 Nm |
| Operating Temperature | 0 to 55 degrees Celsius |
