Allen-Bradley PanelView Plus 7 Terminal 2711P-T10C22D9P

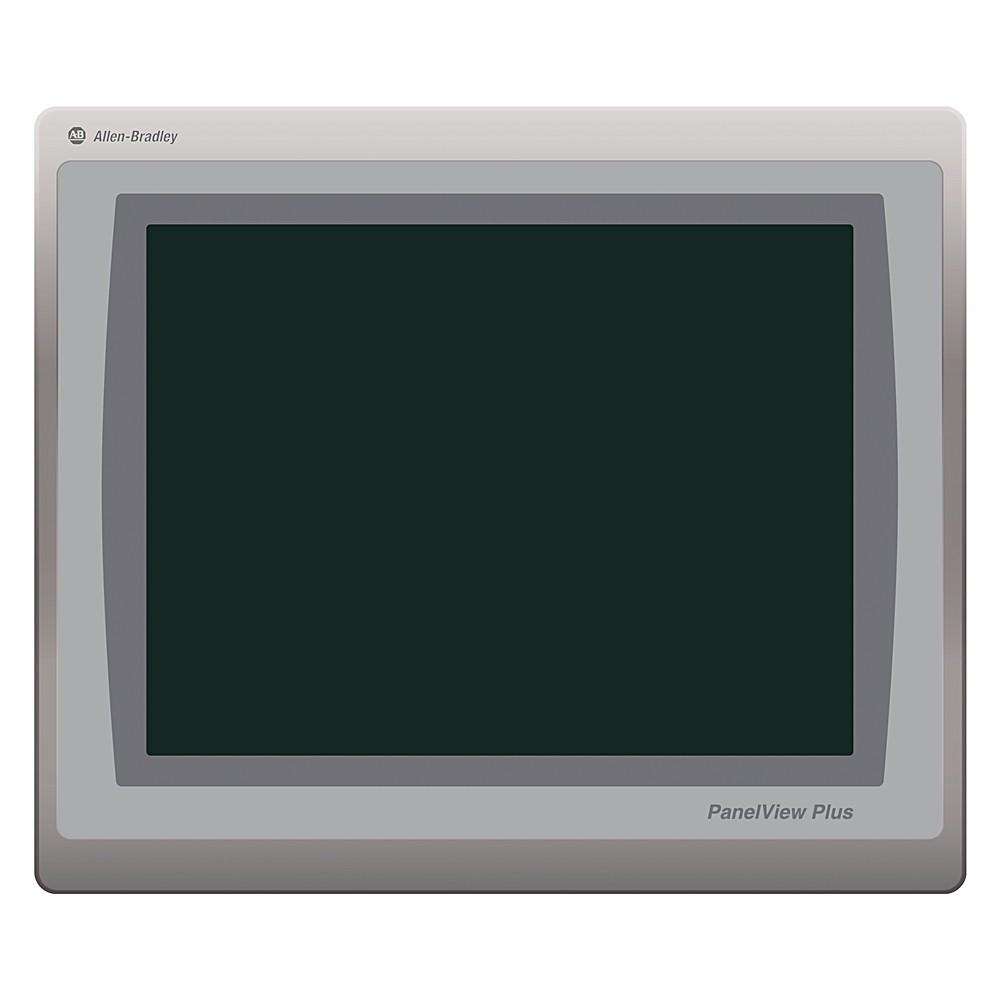

The Allen-Bradley 2711P-T10C22D9P is a PanelView Plus 7 Performance Graphic Terminal featuring a 10-inch SVGA TFT color touchscreen display.
Equipped with Ethernet DLR, 24V DC power, and running Windows 10 IoT OS, this terminal delivers robust and intuitive HMI performance for industrial automation applications.
· Offers display sizes from 7 to 19" with wide screen and keypad options
· Includes video playback support which provides advanced user help capabilities
· Includes RDP client feature to create thin client terminals
· Features Ethernet ports that support DLR, linear, or star network topologies
SPECIFICATIONS
Panel View Plus 7 Performance
Product Series
Integrated Operator Panel
Component Type Operator Panel
18-30 V DC
Power Supply
50 W(DC) / VA(AC)
Power Consumption (Max.)
Touch
Operator Input Method(s)
10.4 inches
Display Size
TFT (Thin Film Transistor)
Display Technology
800x600 pixels
Display Resolution
262 k
Display Colours
300 cd/m2
Display Brightness
LED
Display Backlight
50000 hours
Display Backlight Life
Resistive
Touch Screen Type
Integrated
Real Time Clock
Lithium
Battery Type
4 years
Service Life, Battery
1 GB
RAM, Installed
512 MB
Non-Volatile Memory
1 x SD/MMC
Memory Card Slots
2 x USB Host
Peripheral I/O Interface(s)
2 x 10/100Mbps
Ethernet Interfaces
1xUSB Device Port
Communications Ports (On Board)
2 x Ethernet RJ-45
Communications Protocols
EtherNet/IP
Operating Force, Touch Screen
EtherNet/OCPP
Height, Cutout
0.98 N
Width, Cutout
224 mm
Weight
269 mm
