Description
Product characteristics
1. 0-5VDC analog output;
2. 2 switching output;
3. It is suitable for edge tracking application of
transparent, opaque and airtight film materials;
4. There is no need to adjust the calibration manually;
5. 0.5ms reaction time :
6. Sensing range 6mm，detection accuracy 0.05mm
7. With offset display;
8. High grade aluminum alloy shell, solid and beautiful;

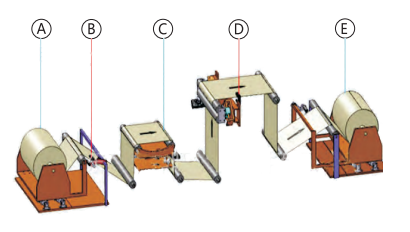

Correct offset principle
A: unwinding correct offset
B: sensor
C: DF Guiding mechanism
D: SF Guiding mechanism
E: Roll up correct offset
