Description

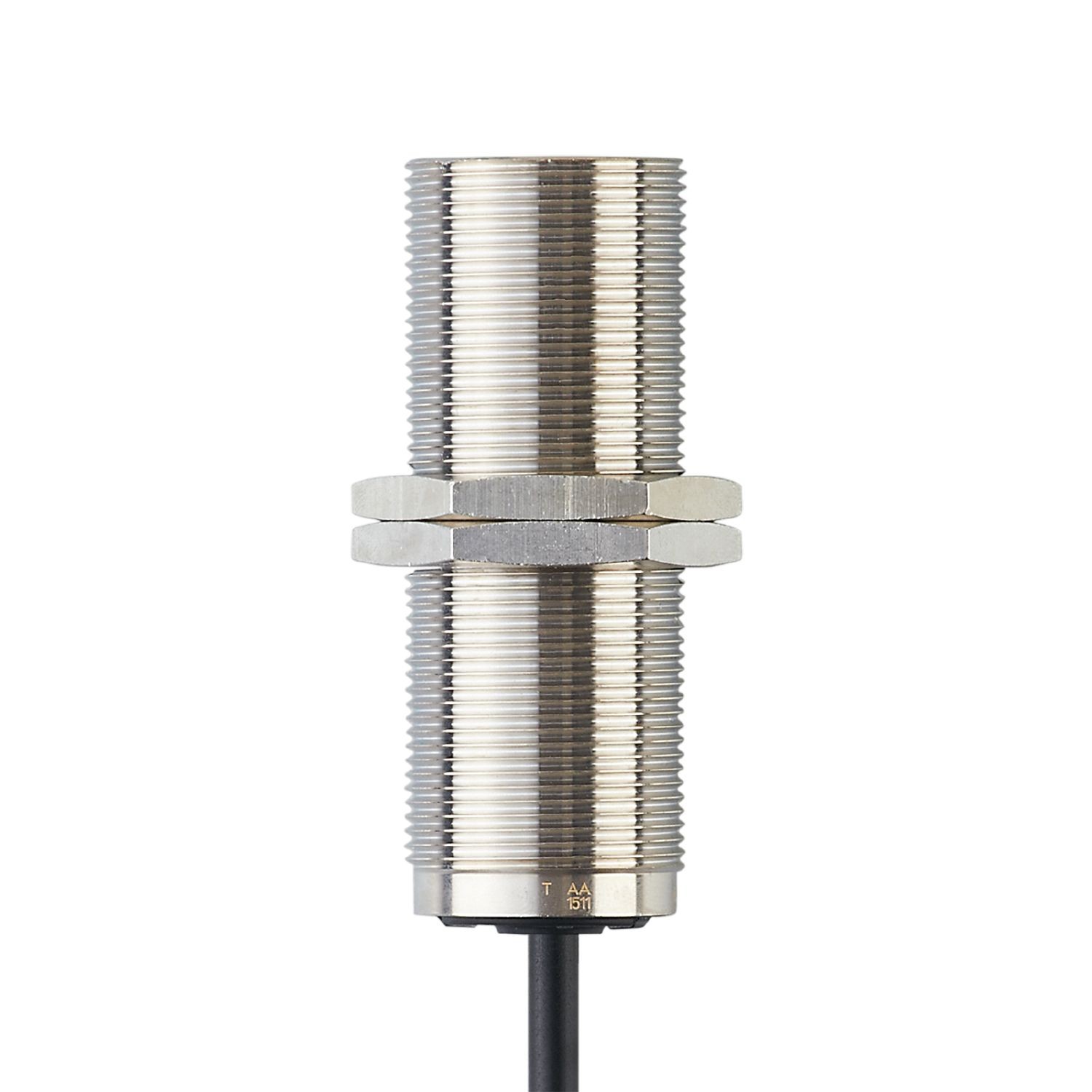

Compact evaluation unit for speed monitoring DI0101
Part no. :DIA2010-ZROA/5-3600 I/MIN
Easy setting of the switch point via potentiometer
For direct connection to a PLC
Part no. :DIA2010-ZROA/5-3600 I/MIN
Reliable non-contact monitoring of the rotational speed with regard to underspeed
2 in 1: speed sensor and evaluation in one compact housingEasy setting of the switch point via potentiometer
For direct connection to a PLC
Reduced installation complexity
Product characteristics
Output function
normally open
Sensing range[mm]
10
Housing
threaded type
Dimensions[mm]
M30 x 1.5 / L = 80
Application
Application
simple evaluation of rotating and linear movement with regard to underspeed; blocking
Electrical data
Nominal voltage AC[V]
20...250
Nominal voltage DC[V]
20...250
Nominal frequency AC[Hz]
45...65
Protection class
II
Reverse polarity protection
yes
Outputs
Total number of outputs
1
Output function
normally open
Max. voltage drop switching output DC[V]
8.5
Minimum load current[mA]
6
Max. leakage current[mA]
1.5
Permanent current rating of switching output AC[mA]
350
Permanent current rating of switching output DC[mA]
100
Short-time current rating of switching output[mA]
2200; (20 ms / 0,5 Hz)
Short-circuit proof
no
Overload protection
no
Detection zone
Sensing range[mm]
10
Sensing range adjustable
no
Real sensing range Sr[mm]
10 卤 10 %
Operating distance[mm]
0...8.1
Measuring/setting range
Setting range[Imp/min]
5...3600
Measuring聽principle
inductive
Accuracy / deviations
Correction factor
steel: 1 / stainless steel: 0.8 / brass: 0.5 / aluminium: 0.5 / copper: 0.4
Hysteresis[% of Sr]
10
Response times
Start-up delay[s]
12
Max. damping frequency[Imp/min]
4800
Software / programming
Adjustment of the switch point
multiturn potentiometer
Operating conditions
Ambient temperature[掳C]
-25...80
Storage temperature[掳C]
-25...80
Protection
IP 65; IP 67
Tests / approvals
EMC
EN 60947-5-2
MTTF[years]
435
Mechanical data
Weight[g]
281.6
Housing
threaded type
Mounting
flush mountable
Dimensions[mm]
M30 x 1.5 / L = 80
Thread designation
M30 x 1.5
Materials
housing: brass special coating; PA; TPE-U
Tightening torque[Nm]
50
Displays / operating elements
Display
switching status 2 x LED, yellow
Electrical connection
Required protection
miniature fuse to IEC60127-2 sheet 1; ≤ 2 A; fast acting
Accessories

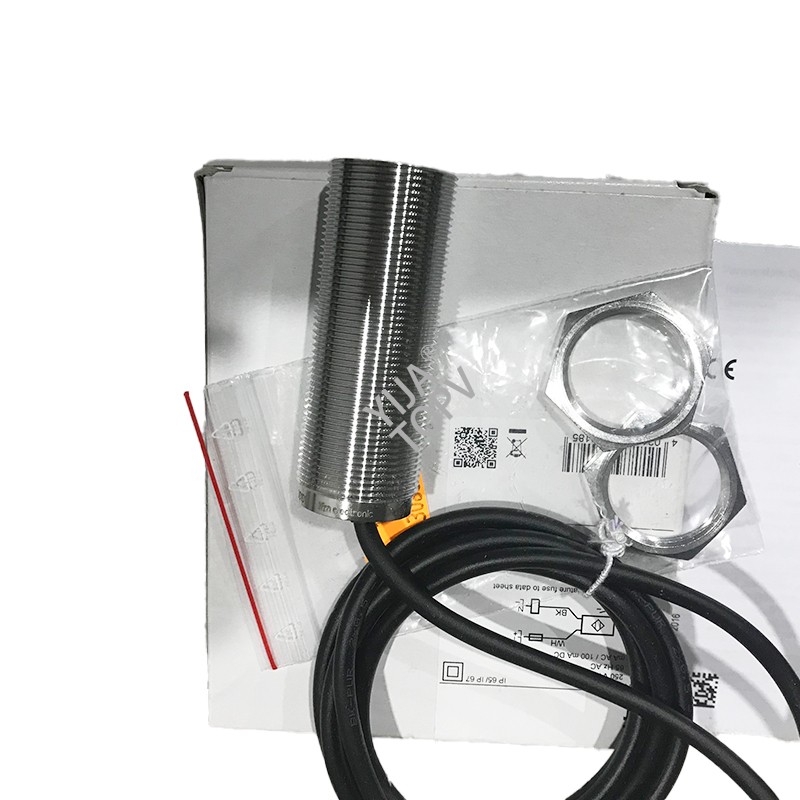

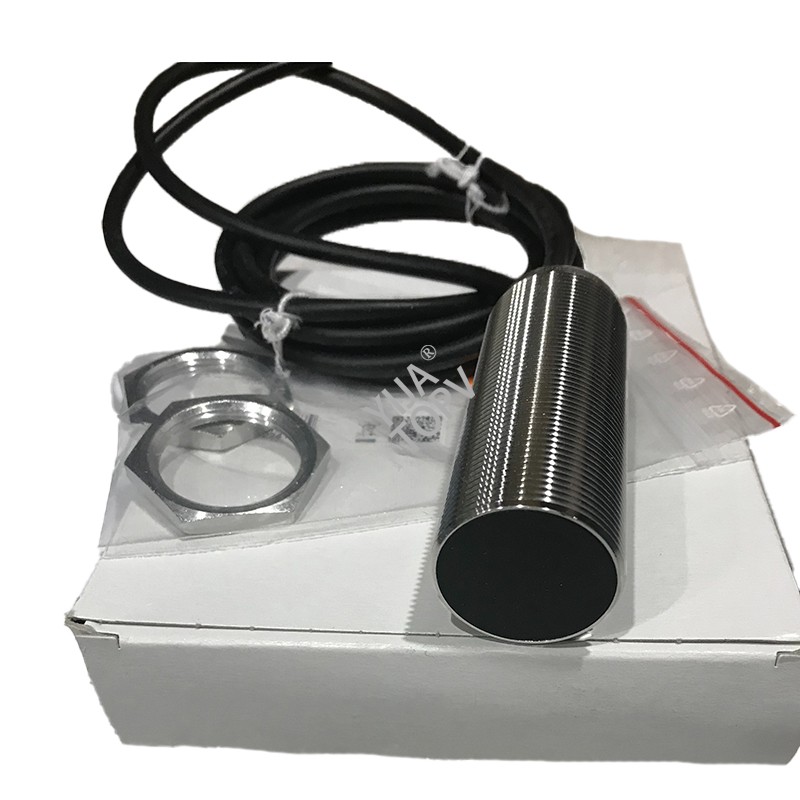

Items supplied
lock nuts: 2
Remarks
Remarks
Recommendation Check the safe functioning of the unit after a short circuit.
Pack quantity
1 pcs.
Electrical connection
Cable
2 m, PUR; 2 x 0.5 mm²
