Description

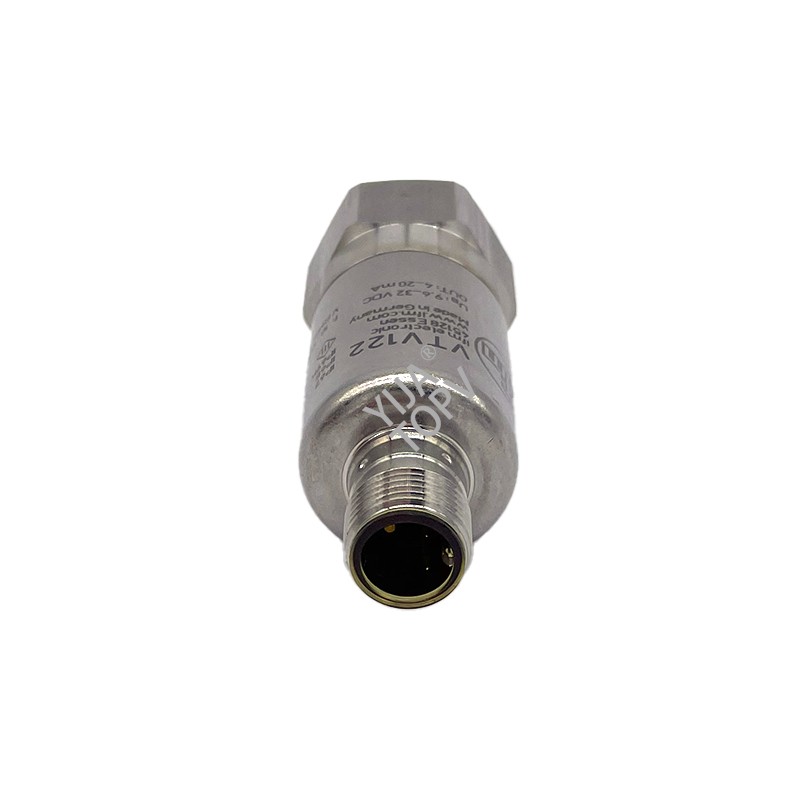

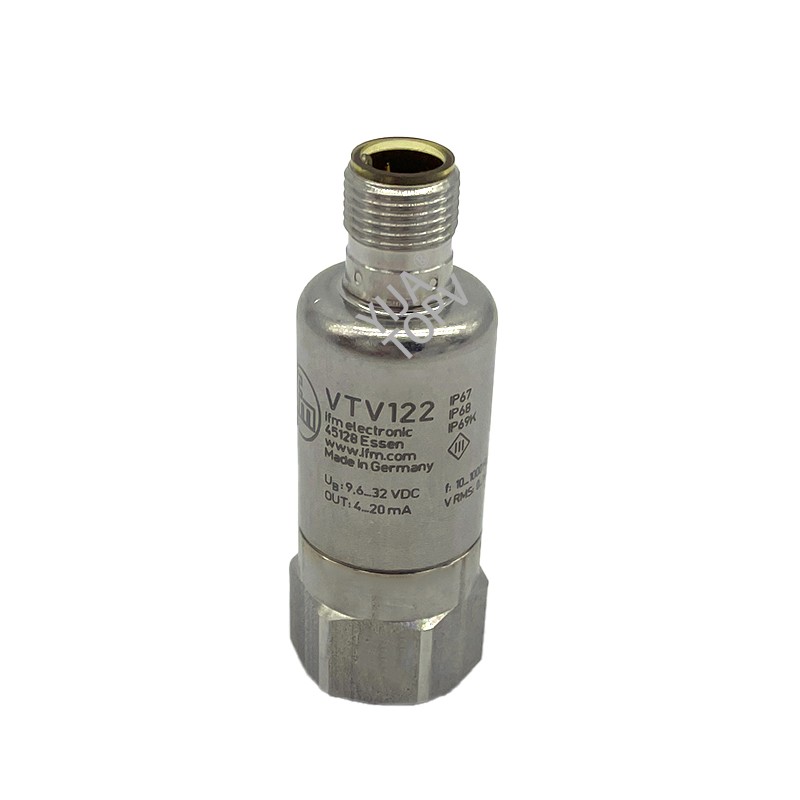

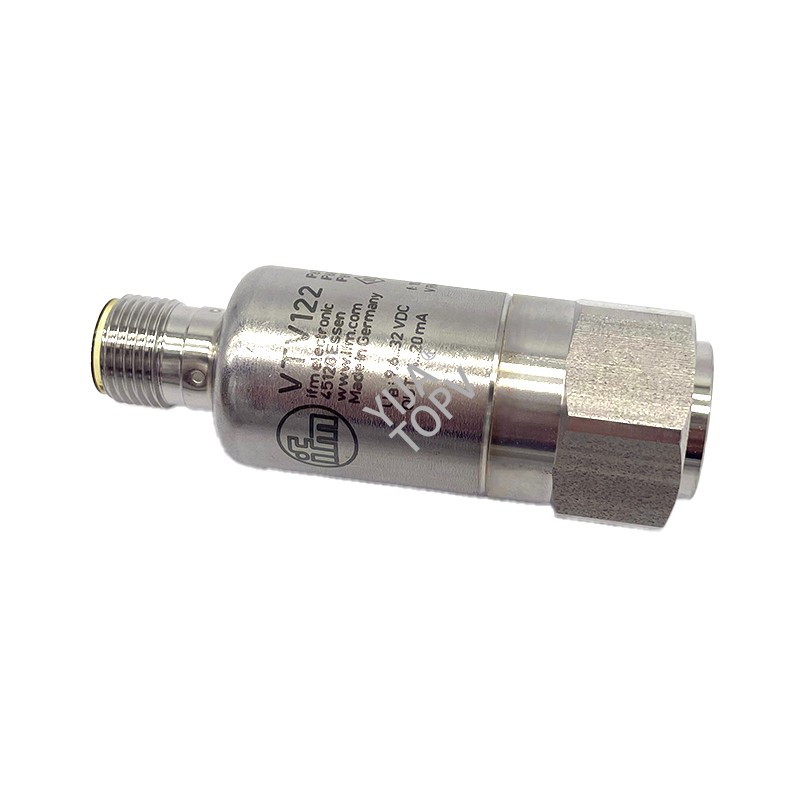

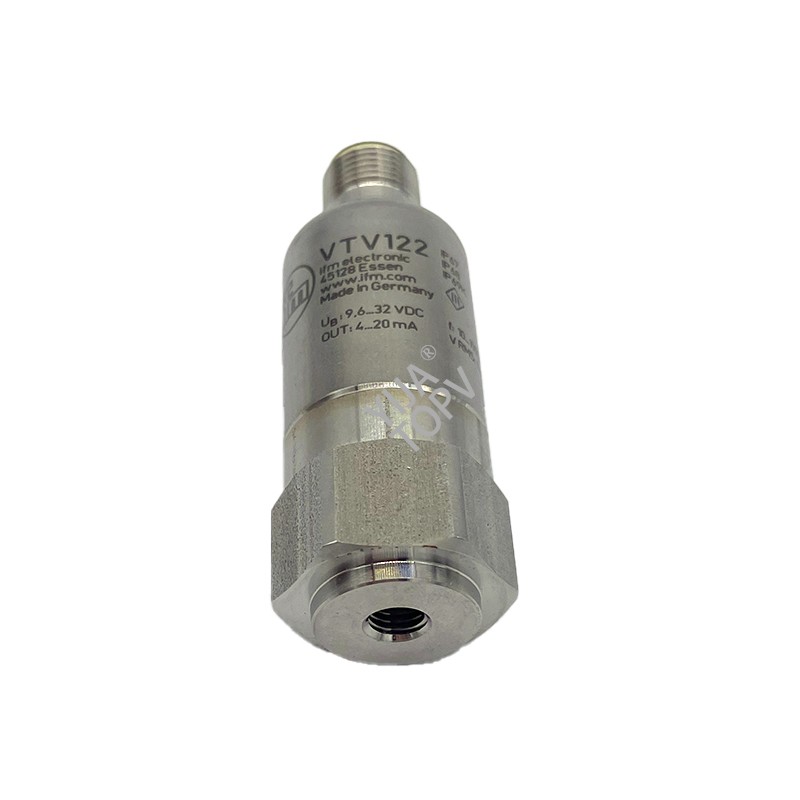

IFM Vibration transmitter
VTV122
VIBRATION TRANSMITTER
- Reliable permanent monitoring of the overall vibration to DIN ISO 10816
- Two-wire technology
- Precise linearized analogue output
- Large operating temperature range and high protection rating
- Compact and robust housing for the requirements of harsh industrial environments
-
Product characteristics Measuring range of vibration[mm/s] 0...25; (RMS) Frequency range[Hz] 10...1000 Application vibration transmitter to ISO 10816 Operating voltage[V] 9.6...32 DC Protection class III Sensor type microelectromechanical system (MEMS) Total number of inputs and outputs 1 Analogue current output[mA] 4...20 Max. load[惟] < (Ub - 9,6 V) x 50; Ub = 24 V: 720 Measuring range of vibration[mm/s] 0...25; (RMS) Frequency range[Hz] 10...1000 Number of measurement axes 1 Measuring error[% of the final value] < 3 Repeatability < 0,5; (% of the final value) Linearity deviation 0,25 % Ambient temperature[掳C] -30...125 Note on ambient temperature UL application: < 80 C Storage temperature[掳C] -30...125 Protection IP 67; IP 68; IP 69K EMC EN 61000-6-2 EN 61000-6-3 Shock resistance DIN EN 60068-2-27 50 g 11 ms 500 g 1 ms Vibration resistance DIN EN 60068-2-6 20 g / 10...3000 Hz Weight[g] 123.5 Type of mounting set screw Materials stainless steel (316L/1.4404) Tightening torque[Nm] 8 Items supplied set screw: 1 x (1/4"-28 UNF / M8 x 1,25 mm) set screw: 1 x (1/4"-28 UNF) Pack quantity 1 pcs. Connector 1 x M12; coding: A
