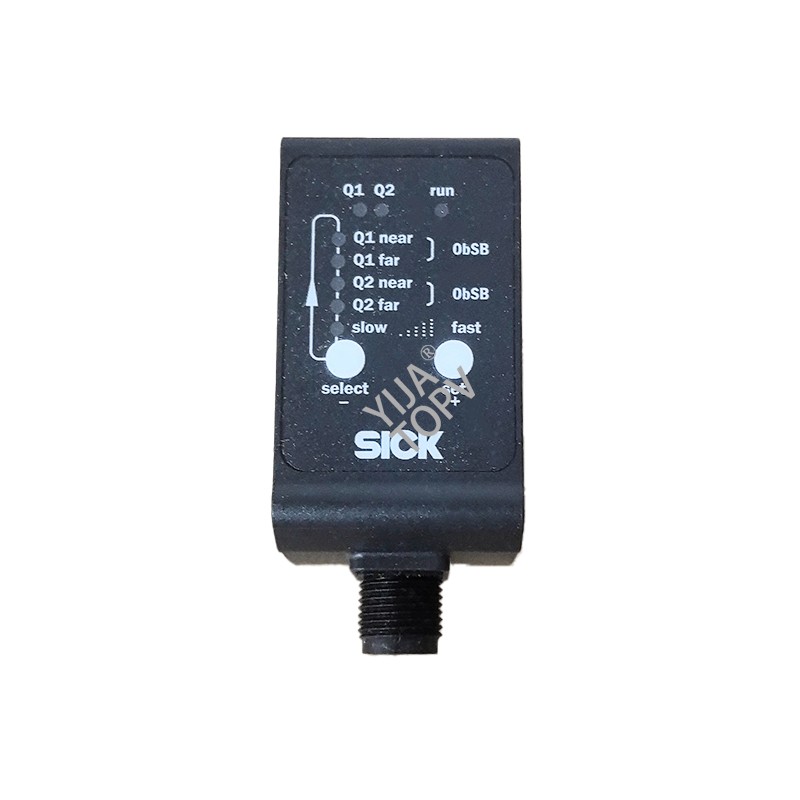

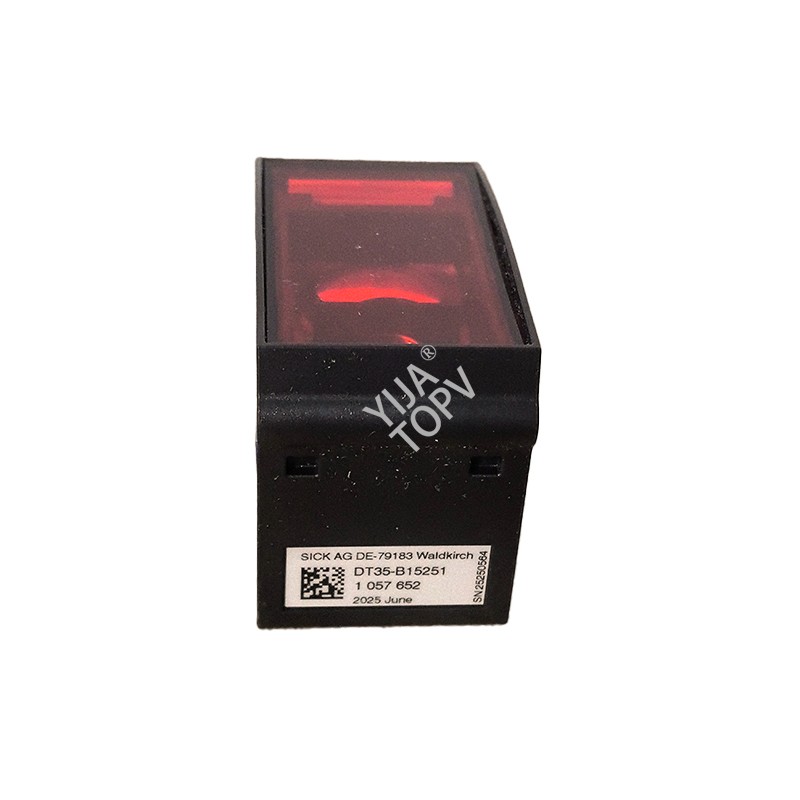

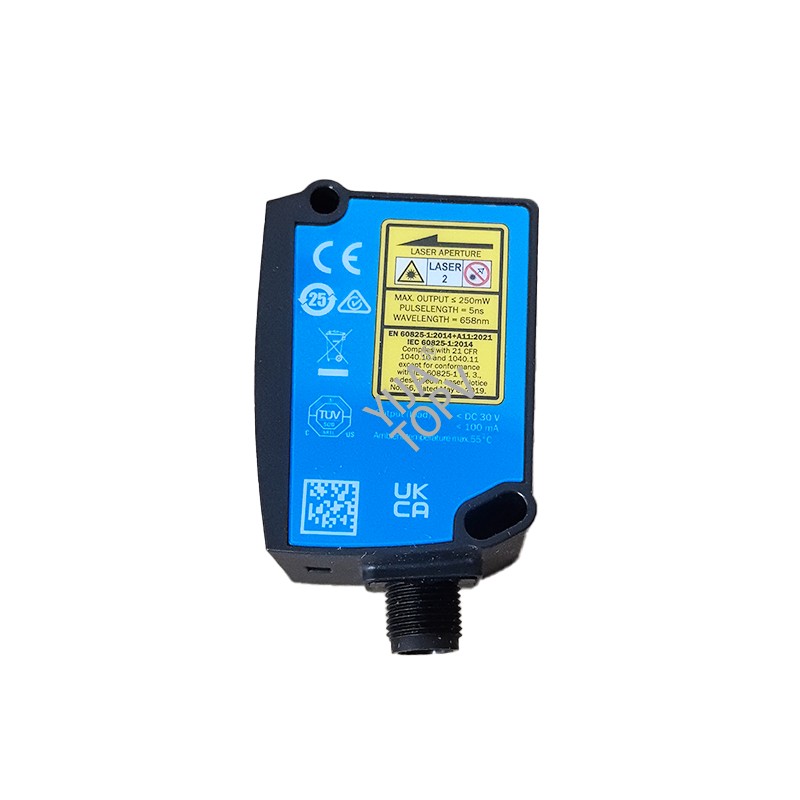

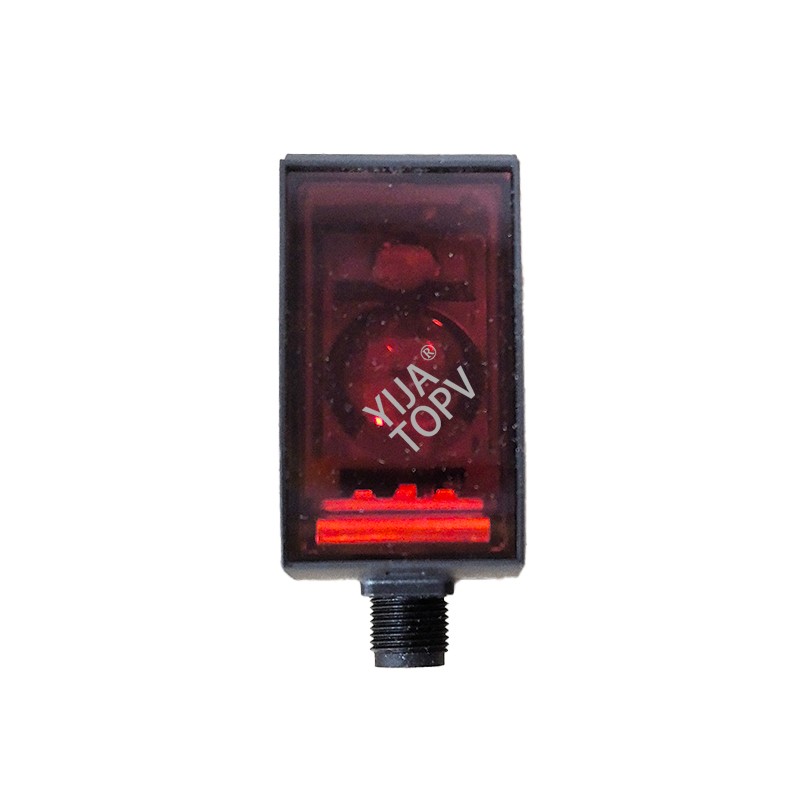

DT35-B15251 SICK Laser Distance Sensors
Dx35 All-round optical distance sensors up to 35 m The Dx35 family of distance sensors, based on HDDM™ technology, combine maximum reliability, measuring capabilities, flexibility and the perfect price-performance ratio in a very compact housing.
The Dx35 family of distance sensors, based on HDDM™ technology, combine maximum reliability, measuring capabilities, flexibility and the perfect price-performance ratio in a very compact housing.
Depending on the application, sub-product families are available for distance measurement on natural objects (DT35 and DS35) or on reflective tape (DL35 and DR35).
The sub-product families also come with different interfaces. In addition to the IO-Link function, which all the devices have, the product family also offers sensors with analog and switching output (DT and DL) or the option of two switching outputs (DS and DR).
Its final distinguishing feature when selecting the right sensor for the application is the light sender: infrared or red light in laser class 1 or 2.
Measuring range
50 mm ... 12,000 mm, 90% remission factor
50 mm ... 5,300 mm, 18% reflection factor
50 mm ... 3,100 mm, 6% remission factor
Target
Natural objects
Resolution
100 µm
Repeatability
≥ 0.5 mm
Measurement accuracy
Typ. ± 10 mm
Response time
2.5 ms ... 96.5 ms, 2.5 ms / 6.5 ms / 12.5 ms / 24.5 ms / 96.5 ms
Switching frequency
333 Hz / 100 Hz / 50 Hz / 25 Hz / 6 Hz
Output time
1 ms ... 32 ms, 1 ms/2 ms/4 ms/8 ms/32 ms
Emitted beam
Light source
Laser, red
Type of light
Visible red light
Typ. light spot size (distance)
15 mm x 15 mm (at 2 m)
Key laser figures
Normative reference
IEC 60825-1:2014, EN 60825-1:2014
Laser class
2 9)
Average laser service life (at 25 °C)
100,000 h
Additional function
Set speed: Super Fast ... Super Slow
Teach-in of analog output and invertible analog output
Output Q2 adaptable: Current output / Voltage output / Digital output
Switching mode: Distance to Object (DtO) / switching window / object between sensor and background (ObSB)
Teach-in of digital output and digital output invertible
Multifunctional input: laser off / external teach / deactivated
Reset to factory default
IO-Link
✔ , IO-Link V1.1
Function
Process data, parameterization, diagnosis
Data transmission rate
38.4 kbit/s
Digital output
Number
1 ... 2
Type
Push-pull: PNP/NPN
Function
Output Q2 adaptable: Current output / Voltage output / Digital output
Maximum output current IA
≤ 100 mA
Analog output
Number
1
Type
Current output / voltage output
Function
Output Q2 adaptable: Current output / Voltage output / Digital output
Current
4 mA ... 20 mA, ≤ 450 Ω
Voltage
0 V ... 10 V, ≥ 50,000 Ω
Resolution
12 bit
Multifunctional input (MF)
1 x
Hysteresis
0 mm ... 11,950 mm 4)
Supply voltage UB
DC 12 V ... 30 V 1) 2)
Power consumption
≤ 1.7 W 3)
Ripple
≤ 5 Vpp 4)
Initialization time
≤ 500 ms
Warm-up time
≤ 20 min
Display
LEDs
Enclosure rating
IP65
IP67
Protection class
III
Connection type
Male connector, M12, 5-pin
