Description

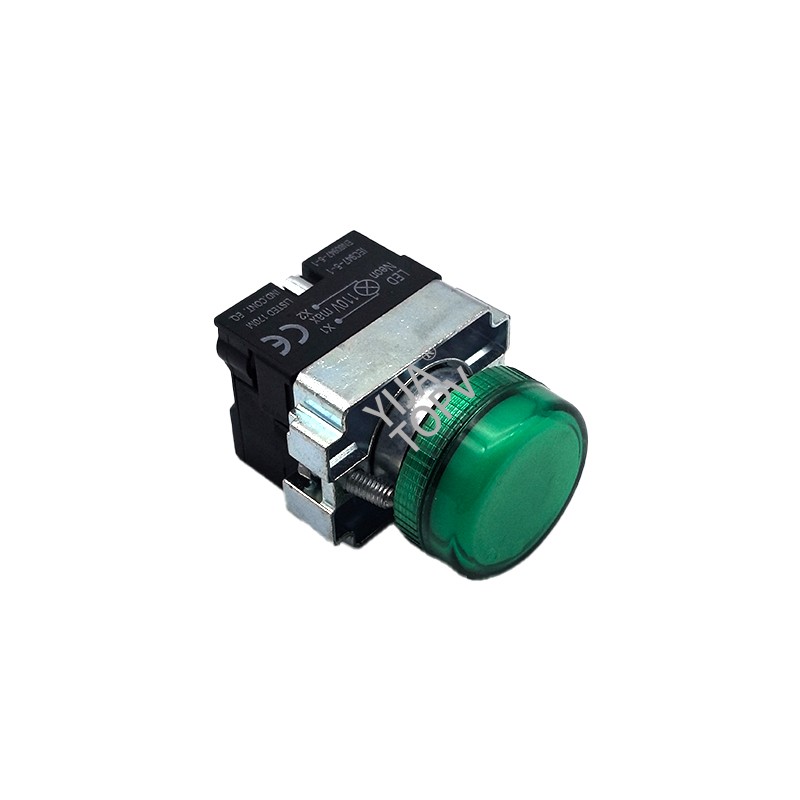

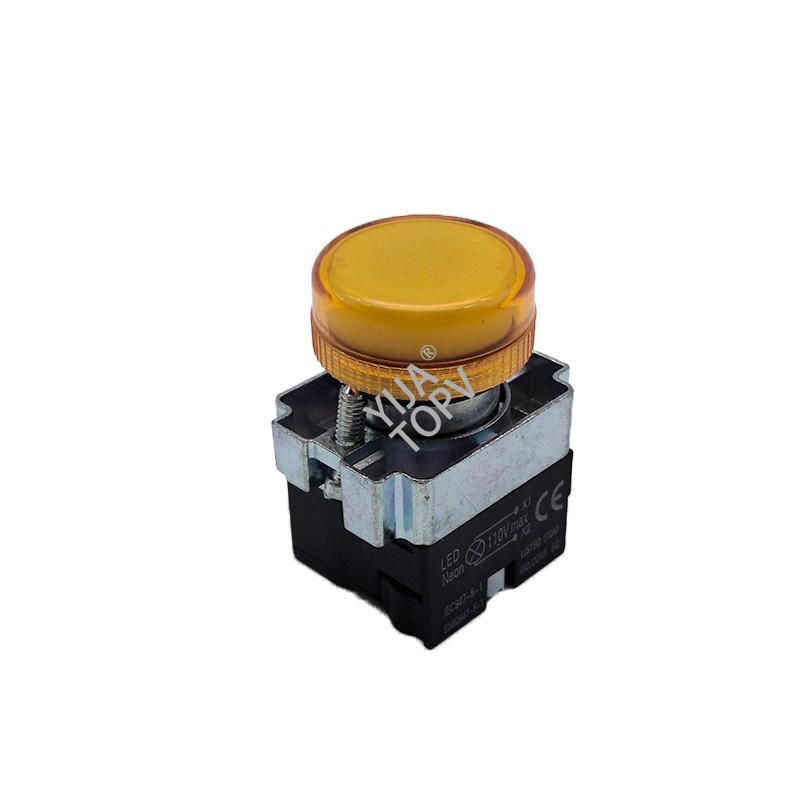

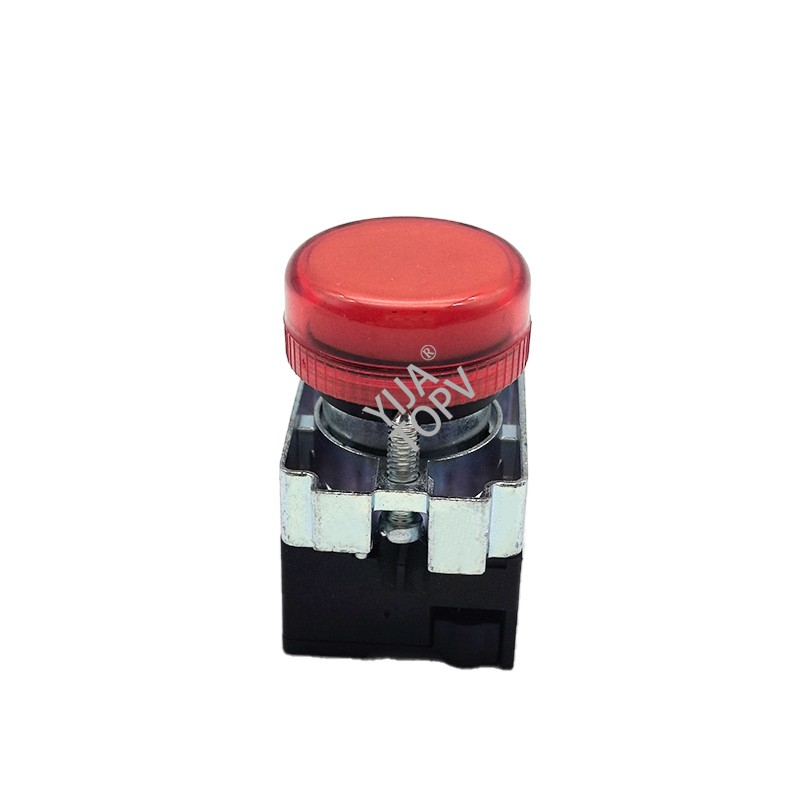

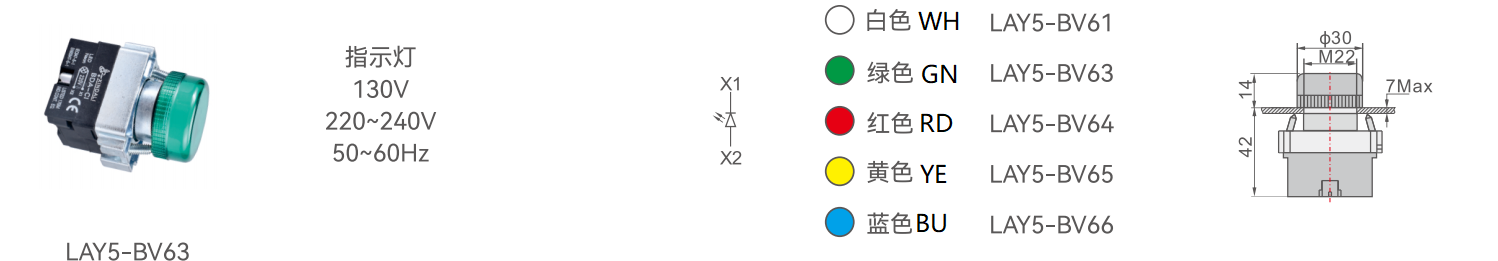

LAY5-BV series Push button switch with lamp
Rated Insulation Voltage:
AC 600V (50Hz/60Hz)
Insulation Resistance:
≥250MΩ
Conventional Heating Current:
10A
Contact Resistance:
≤25mΩ
Insulation Resistance:
≥50MΩ
Withstand Voltage:
AC 2.5KV/min
Operating Temperature Range:
-25℃ to +55℃
Humidity:
≤85%
Protection Level:
Up to IP65
Altitude:
≤2000m
Core Selling Points
Broad Compatibility: Can seamlessly replace the Schneider XB2 Series, eliminating the need for alterations to existing designs or installation configurations.
Top-notch Materials: The switch body is composed of zinc alloy and high-grade flame-retardant plastic, while the contact points are made from a special silver alloy that offers strong resistance to electrical erosion.
Varied Designs: Offered in a range of styles such as flush buttons, mushroom-shaped buttons, long-handled knobs, emergency stop buttons, etc., to meet diverse operational demands.
Customization Capabilities: Customers can choose from different colors, structures, contact types, and indicator light options to suit their specific requirements.
Exceptional Durability: Boasting a mechanical lifespan of up to 100,000 cycles and an electrical lifespan of 500,000 cycles, ensuring stable long-term performance.
Strong Environmental Adaptation: Can function effectively within a temperature range of -25℃ to +55℃ and exhibit excellent vibration resistance, making them suitable for various industrial settings.
