Description

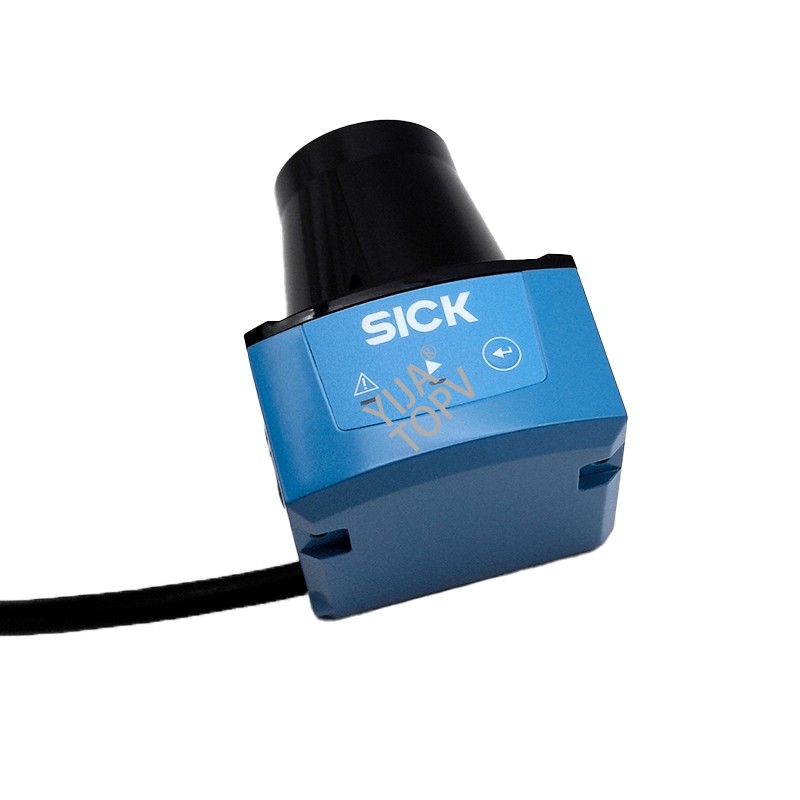

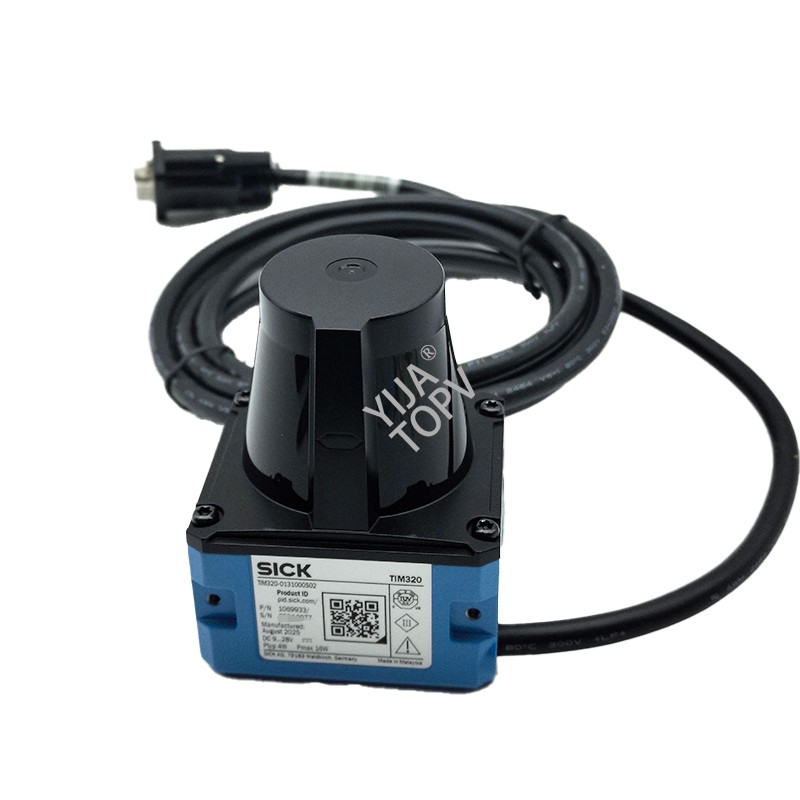

TIM320-0131000S02 1069933 Sick Safety laser scanner
2D LiDar Sensor
Feature:
- Field evaluation integrated application
- Hddm+ measurement principle
- 0.05 m to 4 m working range
- 1° angular resolution
- 16 number of field sets
- Ip65 enclosure rating
- 3 (npn, additional 1 x “device ready”) digital outputs
- Open wires (2.0 m) connection type
-
Connection type Open wires (2.0 m) 1) Supply voltage 9 V DC ... 28 V DC Power consumption Typ. 4 W, 16 W with 4 max. loaded digital outputs Output current ≤ 100 mA Housing color Light blue (RAL 5012) Enclosure rating IP65 (IEC 60529:1989+AMD1:1999+AMD2:2013) Protection class III (IEC 61140:2016-1) Weight 150 g, without connecting cables Dimensions (L x W x H) 60 mm x 60 mm x 79 mm MTBF > 100 years MTTFd 100 years -
Response time 1 scan, typ. 67 ms
2 scans, ≤ 134 ms 1)
Detectable object shape Almost any Systematic error ± 40 mm 2) Statistical error < 30 mm 2) Integrated application Field evaluation Number of field sets 16 field triples (48 fields, 1 triple (3 flexible fields) can be configured directly at the scanner) Simultaneous evaluation cases 1 (3 fields) 1) At +45° to +225° of the working range; max. 150 ms at –45° to +45°
