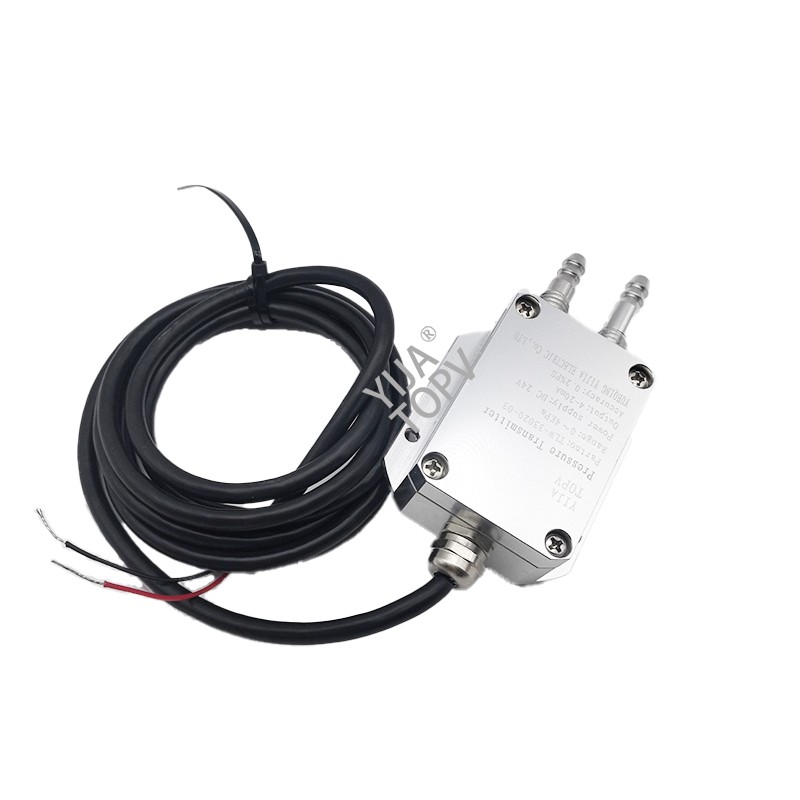

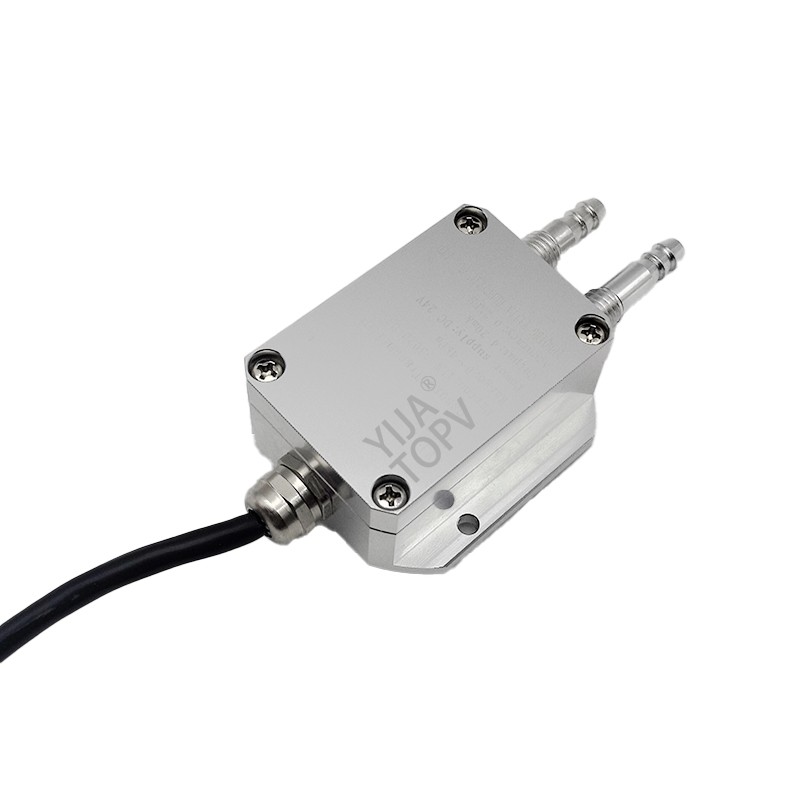

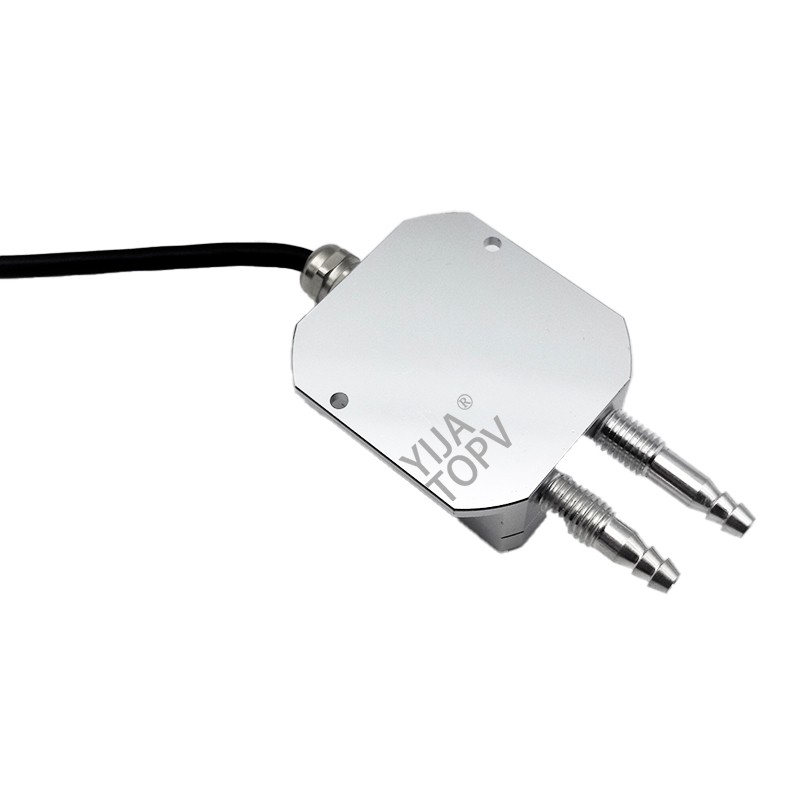

TLW-330 Wind Pressure Transmitter Differential Pressure Sensor 4-20mA Differential Pressure Transmitter
The wind pressure transmitter is assembled with a silicon piezoresistive differential pressure core, the shell is made of aluminum alloy structure, and the pressure interface is an M10 thread plus barb or quick connection structure. It can be directly installed on the measuring pipe or connected through a pressure pipe. It is easy to install and use. It is widely used in boiler air supply, underground ventilation and other power and coal industries, as well as in the field of automatic detection pressure process control in ultra-clean workshops.
Measuring range:
-100-100 kPa
Pressure type:
Differential
Power supply:
12V-36VDC
Output signal:
4-20 mA, 1-5 V, 1-10 V, 0-10 V, 0-5 V, etc.
Operating temperature:
-20-80°C (medium)
Overall accuracy:
±0.5% FS (typical)
Time drift:
≤±0.3% FS/year
Temperature drift:
≤±0.05% FS/°C
Compensated temperature:
0-50°C
Protection rating:
IP65
Overload capacity:
200% FS
Stability:
±0.1% FS/year (typical), ±0.2% FS/year (maximum)
