Description

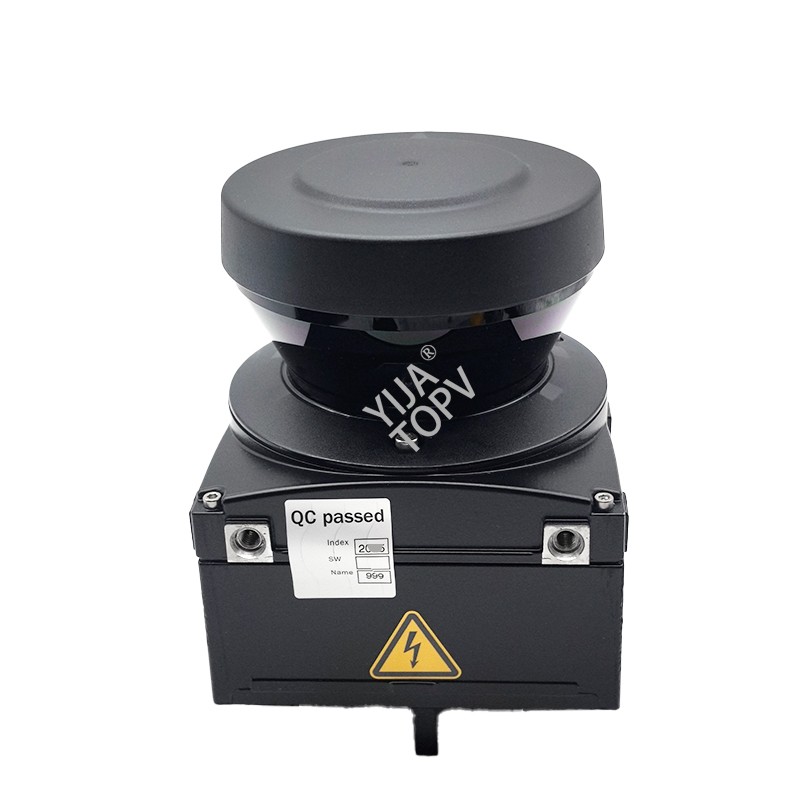

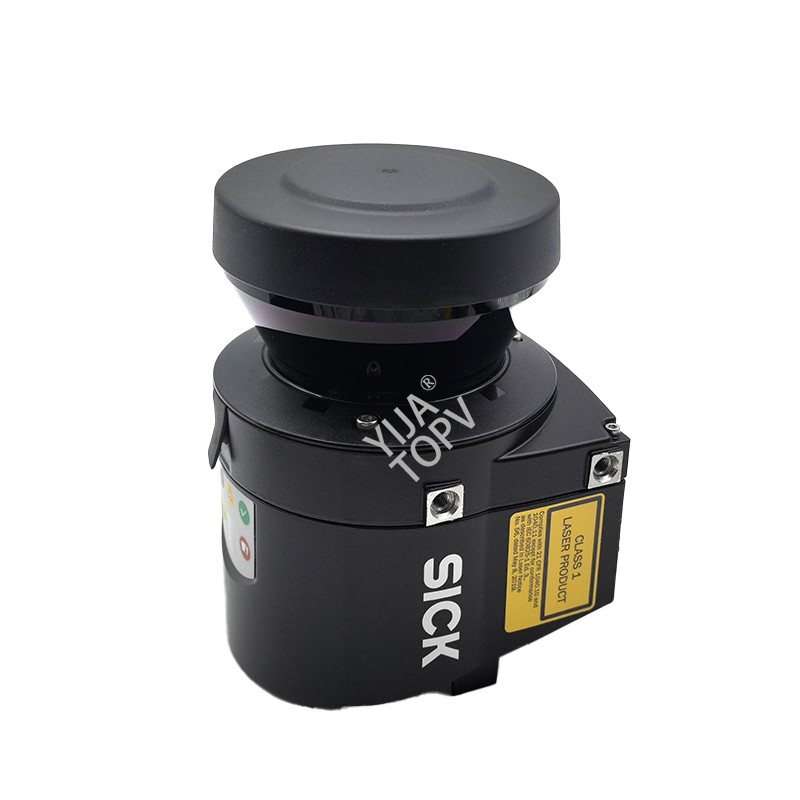

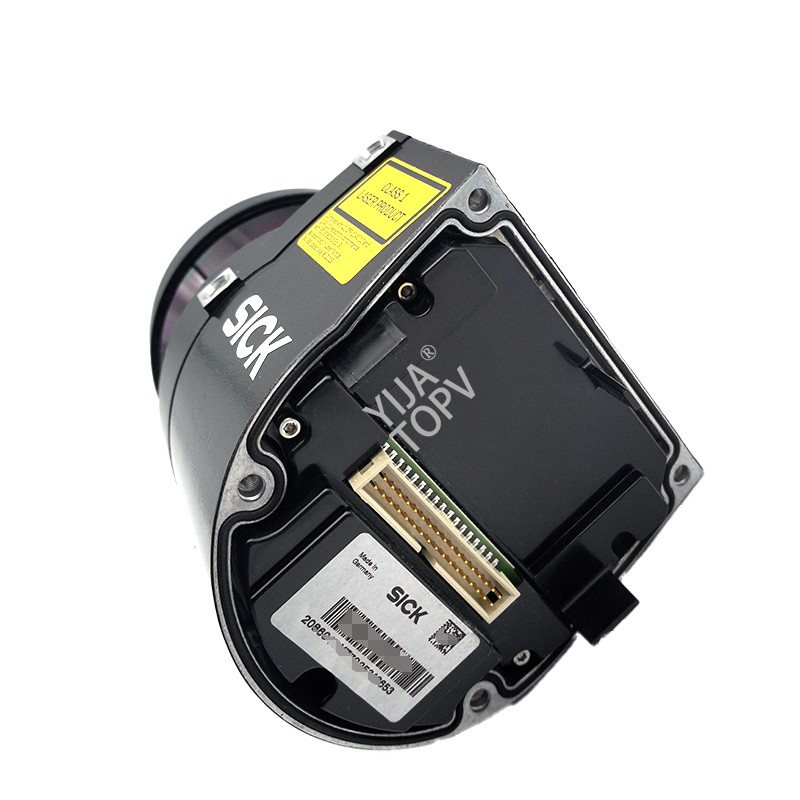

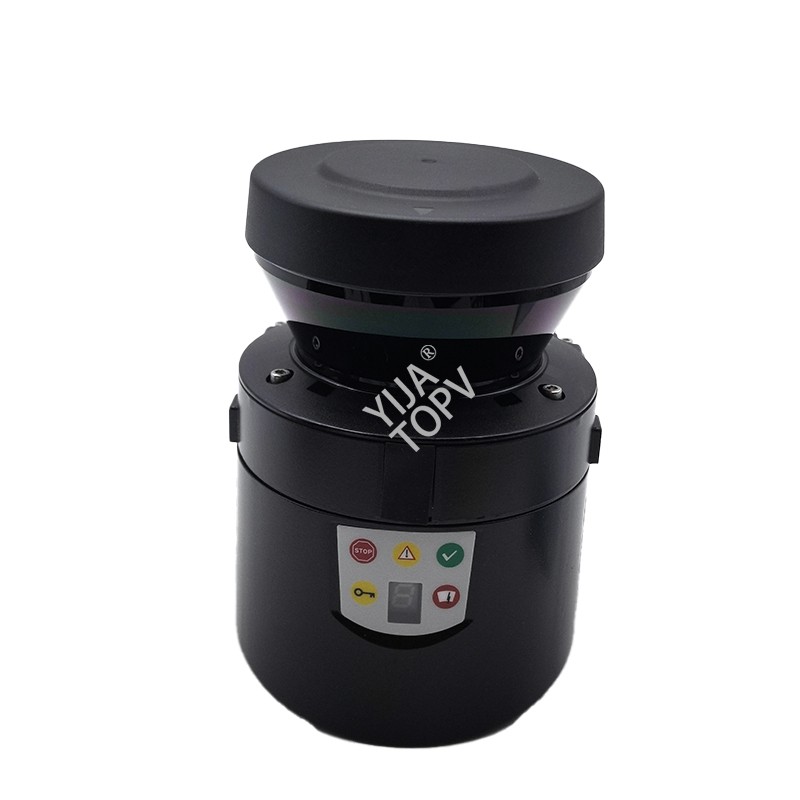

SICK Laser scanner S30B-3011GBS05 1080974
LiDAR (light detection and ranging) and radar (radio detection and ranging) sensors detect and localize objects in their surroundings. In doing so, they detect the size and shape of these objects. LiDAR and radar sensors from SICK are used in many indoor and outdoor applications, for instance on automated guided vehicle systems, harbor cranes, service robots, or in building automation. The devices are characterized by the fact that they function reliably, even under harsh ambient conditions.
Features
Product version
S300 Expert
Model
Sensor without system plug
Application
Indoor
Protective field range
3 m
Warning field range
8 m (at 15 % reflectivity)
Distance measuring range
30 m
Type of field set
Triple field sets
Number of field sets
16
Number of fields
48
Number of monitoring cases
32 1)
Scanning angle
270°
Resolution (can be configured)
30 mm, 40 mm, 50 mm, 70 mm, 150 mm
Angular resolution
0.5°
Response time
80 ms 2)
Protective field supplement
100 mm
Number of multiple samplings
2 ... 16, configurable
Delay of automatic reset
2 s ... 60 s, configurable
Mechanics
Dimensions (W x H x D)
102 mm x 152 mm x 106 mm
Weight
1.2 kg
Housing material
Aluminum die cast
Housing color
RAL 1021 (yellow)
Optics cover material
Polycarbonate
Optics cover surface finish
Outside with scratch-resistant coating
