Description

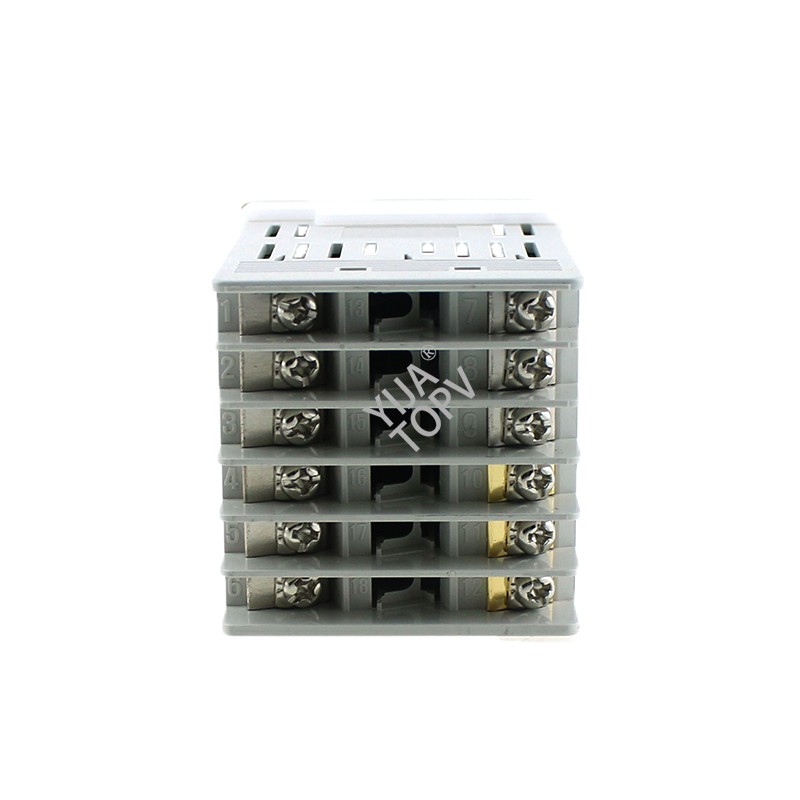

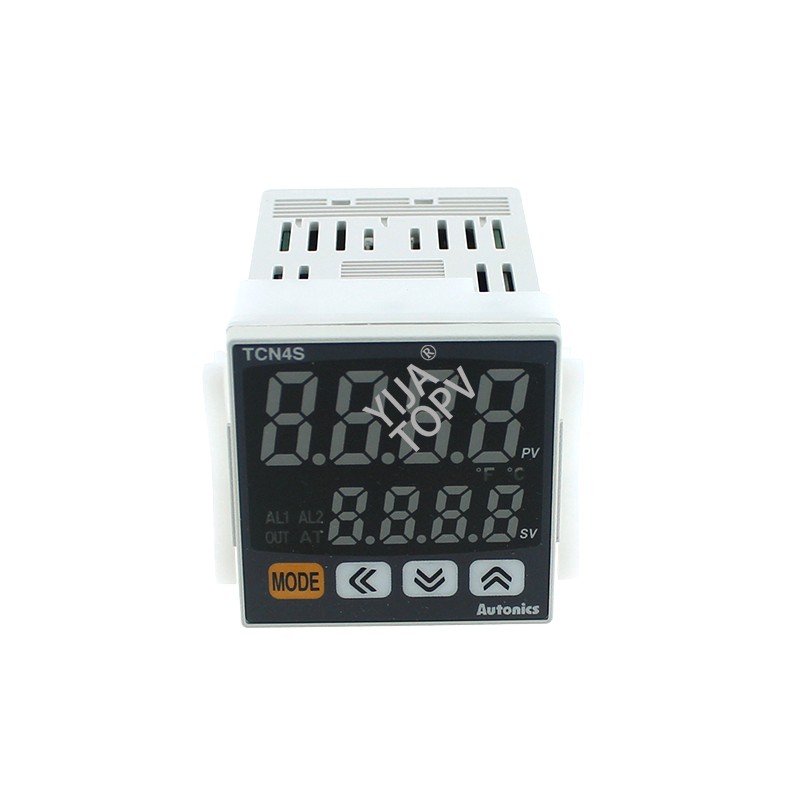

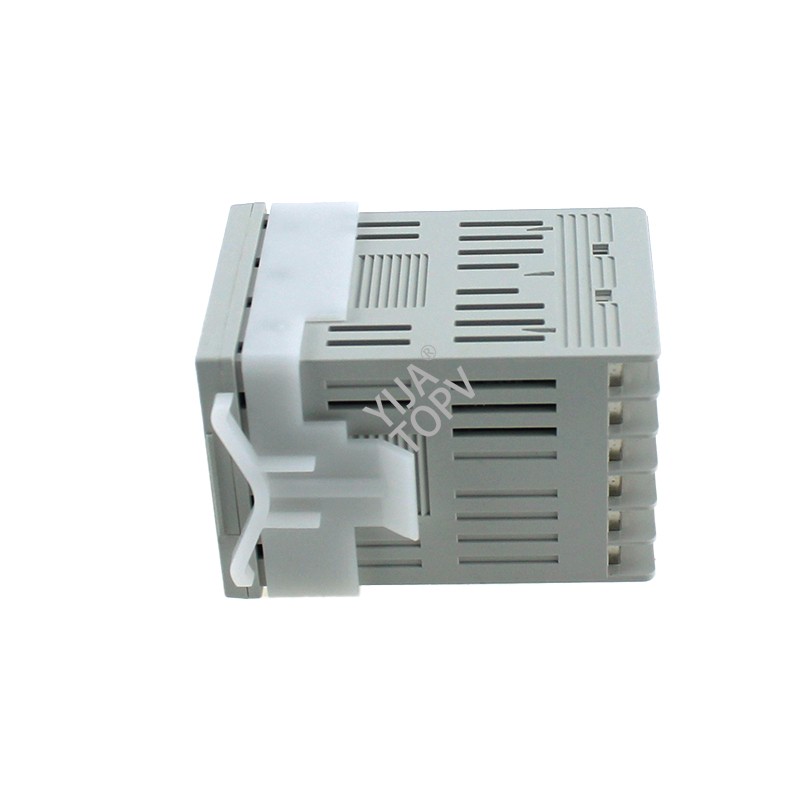

TCN Series Economical Dual display Type, PlD Control
Features:
Realizes ideal temp. controlling with newly developed PID control algorithm and 100ms high speed sampling
Built_in relay output or SSRP output selectable: SSRP output makes phase control and cycle control possible(AC power)
Dramatically increased visibility using wide display part
Mounting space saving with compact design
: Approx. 38% reduced size compared with existing model (depth__based)
Specification:
| Series | TCN4S | TCN4M | TCN4H | TCN4L | |
|
power suppIy |
AC power | 100__240VAC 50/60Hz | |||
| AC/DC power | 24VAC 50/60Hz, 24__48VDC | ||||
| AIIowabIe VoItage range | 90 to 110% of rated voltage | ||||
| power consumption | Max. 5VA(100__240VAC 50/60Hz, 24VAC 50/60Hz) | ||||
| Max. 3W (24__48VDC) | |||||
| DispIay method | 7 segment LED(PV : Red, sV : Green) | ||||
|
Character size |
pV (W×H) | 7.0 × 15.0mm | 9.5 × 20.0mm | 7.0 × 14.6mm | 11.0 × 22.0mm |
| SV (W×H) | 5.0 × 9.5mm | 7.5 × 15.0mm | 6.0 × 12.0mm | 7.0 × 14.0mm | |
|
Input type |
RTD | DPt100 Ω, Cu50 Ω (Allowable line resistance max. 5Ω per a wire) | |||
| TC | K(CA), J(ⅠC), L(ⅠC), T(CC), R(PR), s(PR) | ||||
|
DispIay accuracy |
RTD |
Based on room temperature (23℃ ±5℃): (PV ±0.5% or ± 1℃ higher one) rdg ± 1digit Ⅰn case of out of room temperature range: (PV ±0.5% or ±2℃ higher one) rdg ± 1digit |
|||
| TC | |||||
|
ControI output |
ReIay | 250VAC 3A 1a | |||
| SSR | 12VDC ±2V 20mA Max. | ||||
| AIarm output | AL1, AL2 Relay output : 250VAC 1A 1a | ||||
| ControI method | ON/OFF and P, PⅠ, PD, PⅠD control | ||||
| Hysteresis | 1 to 100℃ / 0.1 to 50.0℃ | ||||
