Description

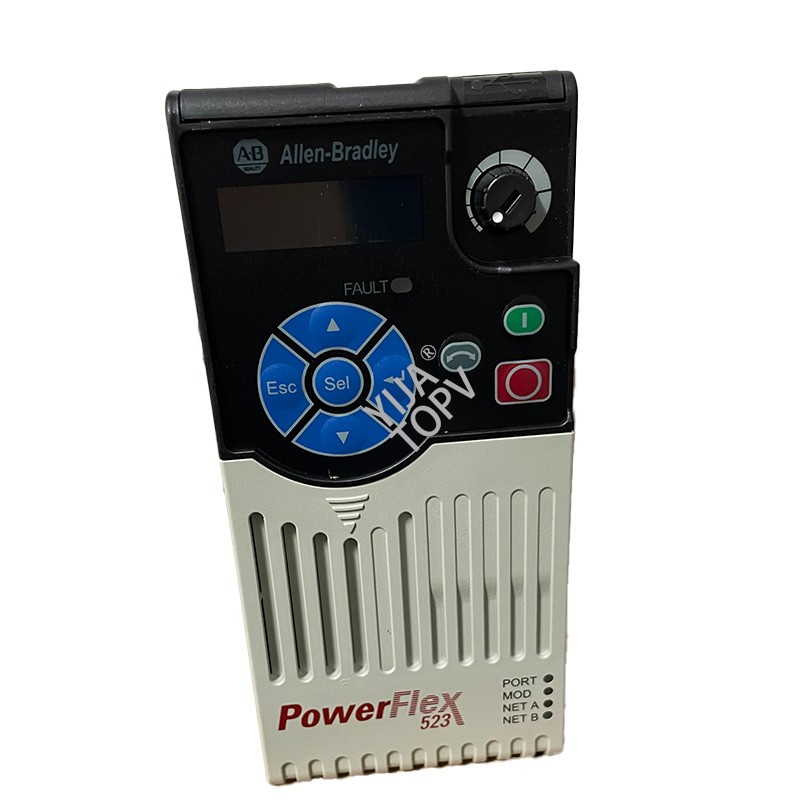

The 25A-A4P8N104 is an adjustable frequency AC drive. This belongs to the PowerFlex 523 drives by Allen-Bradley.

It features an input voltage rating of 200-240 VAC, 1-Phase, and an input current of 6.5 Amperes. It has an output voltage of 0-230 VAC, 3-Phase;

This drive has an output current and power of 4.8 Amperes and 1.0 HP or 0.75 kW for Heavy and normal duty.

This drive is an A-frame drive with a built-in standard interface module and braking. It does not have an integrated EMC filter.

• Technical specifications for 25A-A4P8N104

  Manufacturer	Allen Bradley
  Category	Drives
  Product Line	PowerFlex 523
  Part Number	25A-A4P8N104
  UPC	885630700960
  Weight	1.31 lbs (0.60 kg)
  Drive Category	PowerFlex 523 Adjustable Frequency AC Drive
  Voltage	One Phase, 240 VAC
  Output Current	4.8 Amperes
  Input Voltage	200-240 VAC
  Enclosure Type	IP20 NEMA / Open Type
  Input phase	1-Phase
  Interface Module	Standard
  Output Voltage	0-230VAC
  Frame Size	Frame A
  Output Phase	3-Phase
  EMC Filtering Option	No Filtering
  Output Power	0.75 kW / 1.0 HP; Normal and Heavy Duty
  Discrete Input	Five (5) digital inputs
  Analog input	One (1) analog input
  Discrete output	One (1) relay output
  Analog output	One (1) analog output (requires Series B hardware)
  Braking	Built-in IGBT
  EMC Filter	None Installed
  Enclosure	IP20 NEMA/Open
  Frame	A
  Communication ports	RS485
  Control Method	Volts per Hertz (V/Hz), Sensorless Vector Control (SVC), SVC with economizer
