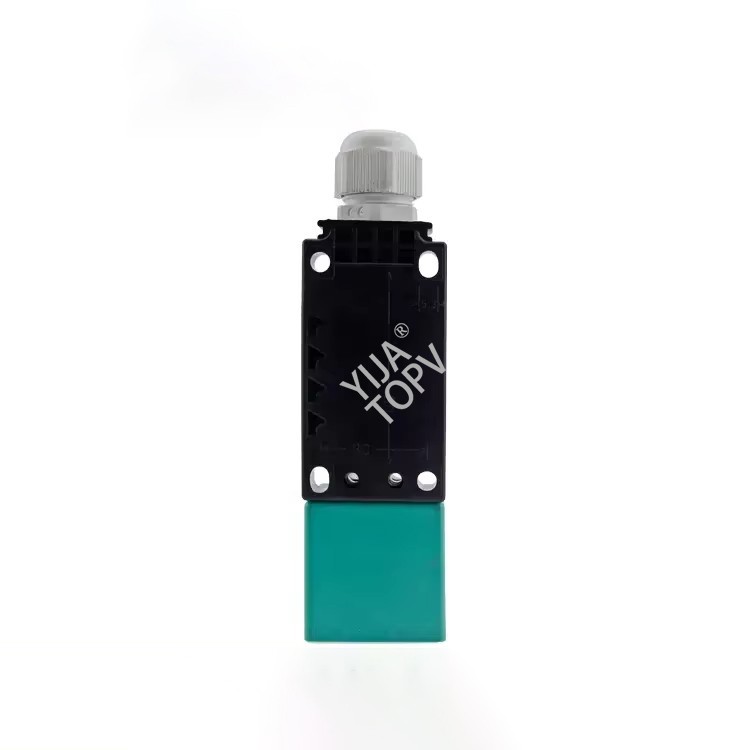

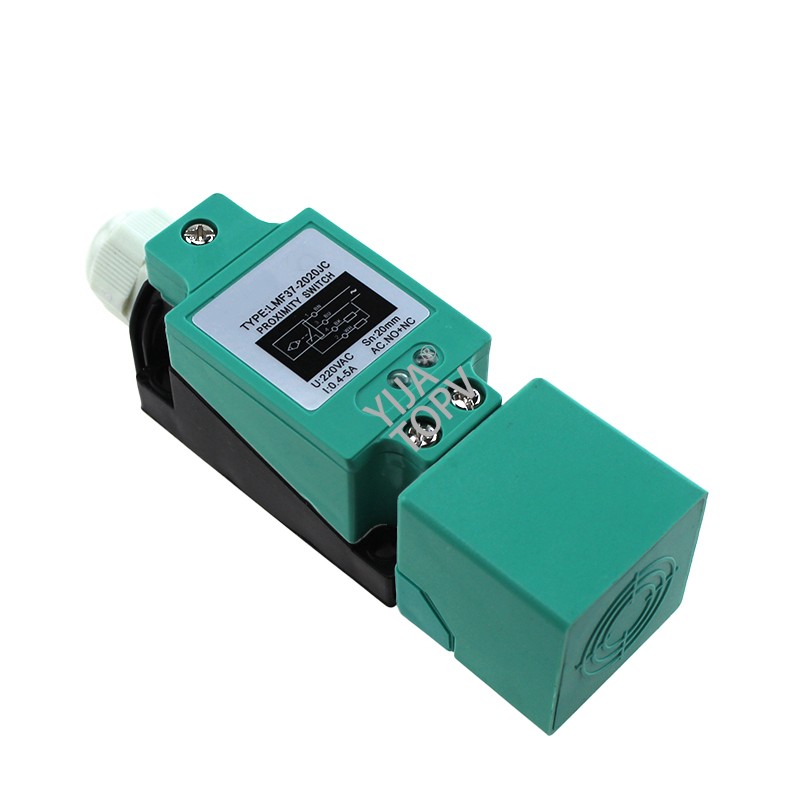

LMF37 inductive proximity switch

Product Item：260328001

LMF37 square type inductive proximity switch

Sn=20mm

Customized avaliable

long distance detection

LMF37 inductive proximity switch

A proximity sensor is a non-contact component, designed to detect the presence or absence of a nearby object without any physical contact.

Due to their non-contact nature, they are ideal for working with unstable or delicate objects that could otherwise be damaged by touch.

LMF37 is an Angular Column Square Type Inductance Proximity Switch which sensing distance can max to 20mm.

LMF37 Inductive proximity switch
Detecting rang 15mm				YUMO part no.
Flush	DC 10-30V	NPN	NO	LMF37-3015NA
			NC	LMF37-3015NB
			NO+NC	LMF37-3015NC
		PNP	NO	LMF37-3015PA
			NC	LMF37-3015PB
			NO+NC	LMF37-3015PC
		2 Wires	NO	LMF37-3015LA
			NC	LMF37-3015LB
	AC 90-250V	SCR	NO	LMF37-2015A
			NC	LMF37-2015B
			NO+NC	LMF37-2015C
		Relay output		LMF37-2015JC
Detecting rang 20mm
Non-flush	DC 6-36V	NPN	NO	LMF37-3020NA
			NC	LMF37-3020NB
			NO+NC	LMF37-3020NC
		PNP	NO	LMF37-3020PA
			NC	LMF37-3020PB
			NO+NC	LMF37-3020PC
		2 Wires	NO	LMF37-3020LA
			NC	LMF37-3020LB
	AC 90-250V	SCR	NO	LMF37-2020A
			NC	LMF37-2020B
			NO+NC	LMF37-2020C
		Relay output		LMF37-2020JC
LMF37 Sensor Characteristics
Output current	DC	200mA
	SCR/relay	300mA/2A
Output voltage drop		DC≤1.5V /DC(Two wire system)≤5V/ AC≤7V
Consumption current		DC≤1mA/ DC(Two wire system)≤13mA /AC≤2mA
Standard detected object		50×50×1(A3 Iron)
Repeated precision		0.05
Response Frequency		200Hz/25Hz
Working environment temperature		-25℃ ~+75℃
Insulation resistance		50MΩ
Shell material		ABS Resin
Protection grade		IEC Standard IP67
Alternative model		HY-A20□
