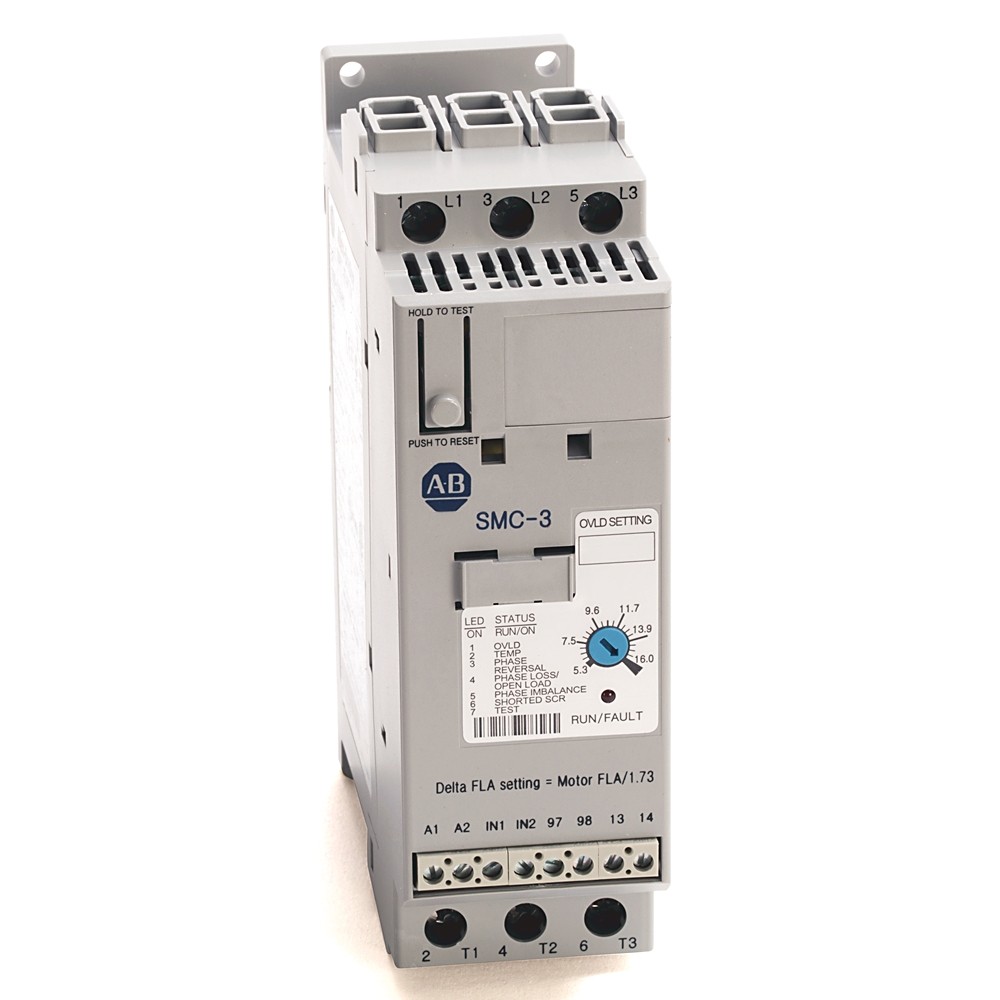

150-C25NBR Allen Bradley SMC-3 25A Smart Motor Controller

150-C25NBR Allen Bradley SMC-3 25A Smart Motor Controller

Product Item：260415008

Allen bradley

Motor controller

Soft Starter

brand new and original

Description

150-C25NBR Allen-Bradley SMC-3 25A Smart Motor Controller

Enhance your industrial operations with the Allen-Bradley SMC-3 25A Smart Motor Controller, designed for efficiency and reliability in 3-phase systems.

Experience superior control and performance at 480V, making it the ideal choice for your motor management needs.

With display	False
Voltage type for actuating	AC/DC
Rated operating voltage Ue	200 V
Rated control supply voltage at AC 50 Hz	24 V
Rated control supply voltage at AC 60 Hz	24 V
Overload current	8.3 A
Controller type	SMC-3
DV/DT protection	1000V/µs for power circuit
Repetitive peak voltage	1400V per UL/CSA/NEMA for power circuit
Operating frequency	50/60 Hz per UL/CSA/NEMA for power circuit
Line connected motor power, max	7.5...15Hp @ 460V AC, 60 Hz, 3-phase
Delta connected motor power, max	7.5...20Hp @ 460V AC, 60 Hz, 3-phase
Overvoltage category	III per IEC for side mount auxiliary contacts
Rated impulse voltage	6 kV for power circuit
Dielectric withstand	2500V AC per IEC for power circuit
Line connected motor current	9.2...25A @ 380/400/415/460V AC, 3-phase
Delta connected motor current	14.3...43A @ 380/400/415/460V AC, 3-phase
Insulation voltage	Rated 600V AC per UL/CSA/NEMA for power circuit
Rated operational voltage	250V AC/30V DC per UL/CSA/NEMA for Side mount auxiliary contacts
Rated control power during start with fan	215mA @ 120V AC/180mA @ 240V AC, 800mA @ 24V DC/660mA @ 24V AC
Input OFF-state current	<10 mA, <12 mA @ input OFF-state voltage (IN1, IN2) for control circuit
Short-circuit protection device list	Non-time delay Thermal magnetic circuit breaker High capacity time delay class CC/J/L
Number of contacts	TB-97, -98 (OVLD/Fault): 1 for auxiliary contacts
High capacity available fault current, max	70kA @ 600V, maximum current 90 A time delay Class J or Class L fuse for inside delta connected motors
Type of current	TB-97, -98 (OVLD/Fault): AC/DC for auxiliary contacts
Conventional thermal current (Ith)	TB-97, -98 (OVLD/Fault): 1 A for auxiliary contacts
Type of control circuit	TB-97, -98 (OVLD/Fault): Electromagnetic relay for auxiliary contacts
Type of contacts	TB-97, -98 (OVLD/Fault): Normally Open (N.O.) for auxiliary contacts
Utilization category	TB-23, -24 (normal/up-to-speed), TB-33, -34 (normal/up-to-speed): C300/R150 per UL/CSA/NEMA for Side mount auxiliary contacts
Rated operational current, max	TB-97, -98 (OVLD/Fault): 0.6A @ 120V AC and 0.3A @ 240V AC for auxiliary contacts
Standard controller feature	Soft stop
Standard available fault current, max	5 kA @ maximum standard fuse 150 A for delta device opsal current rating
Rated control supply voltage at DC	24 V
Integrated motor overload protection	True
Short circuit protection device performance (SCPD) type	Type 1
Selectable overload trip class	Trip Class 10, 15, or 20
Selectable start times	2, 5, 10, 15, 20, 25, or 30 s
