Description

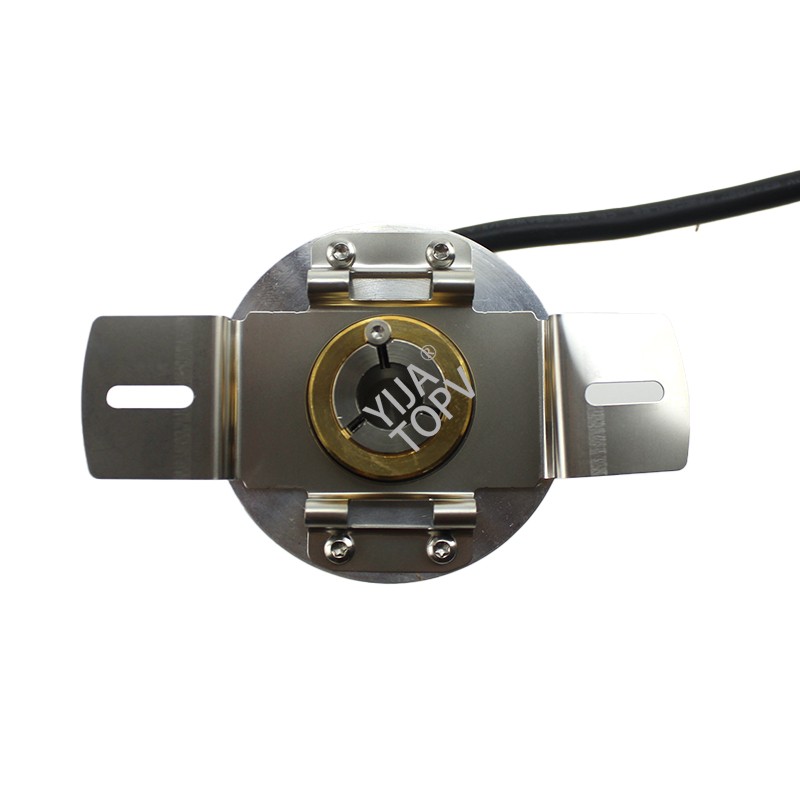

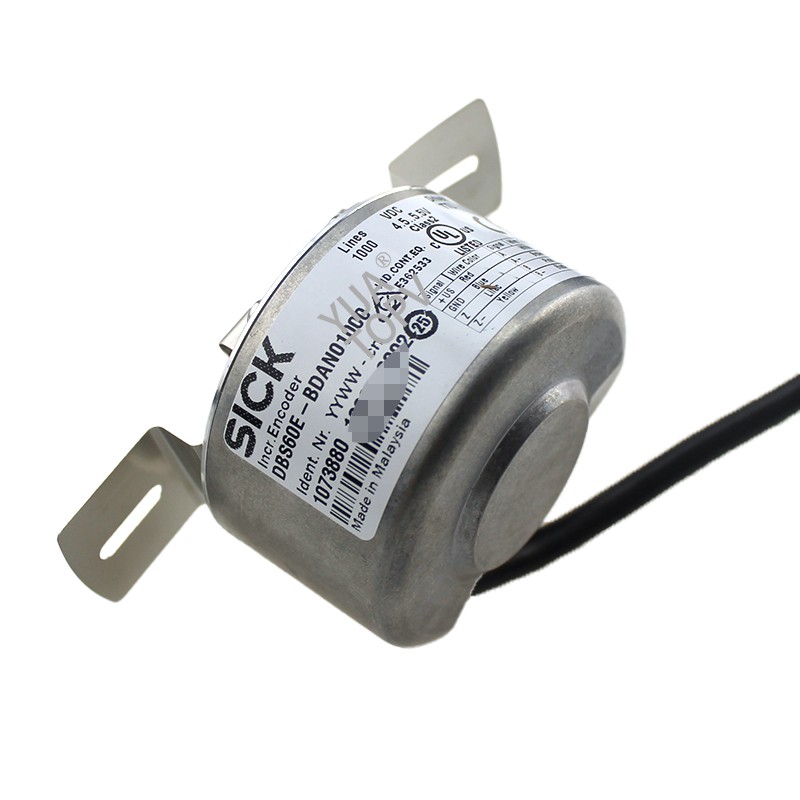

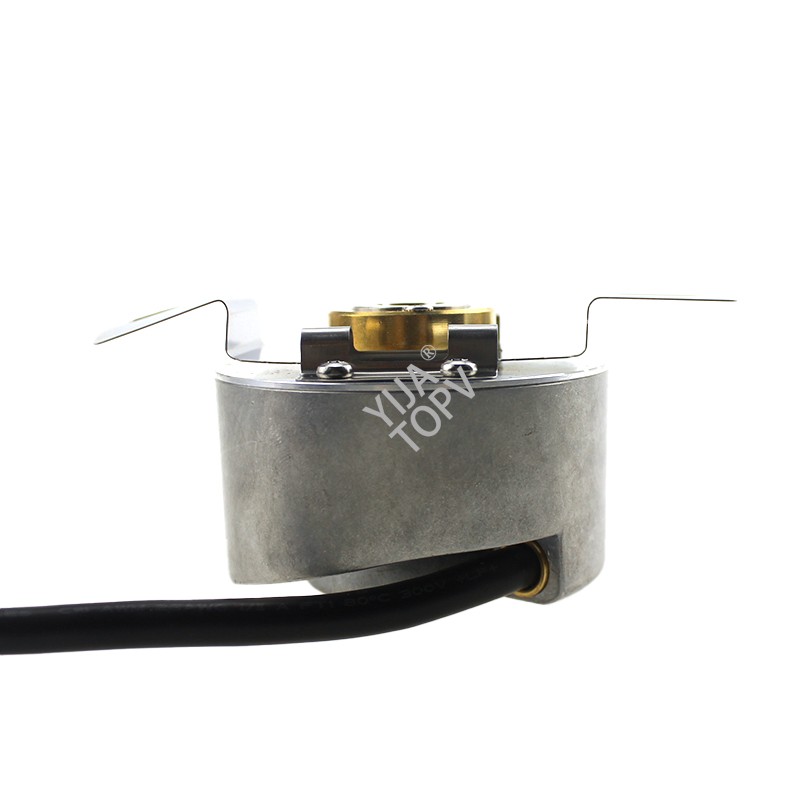

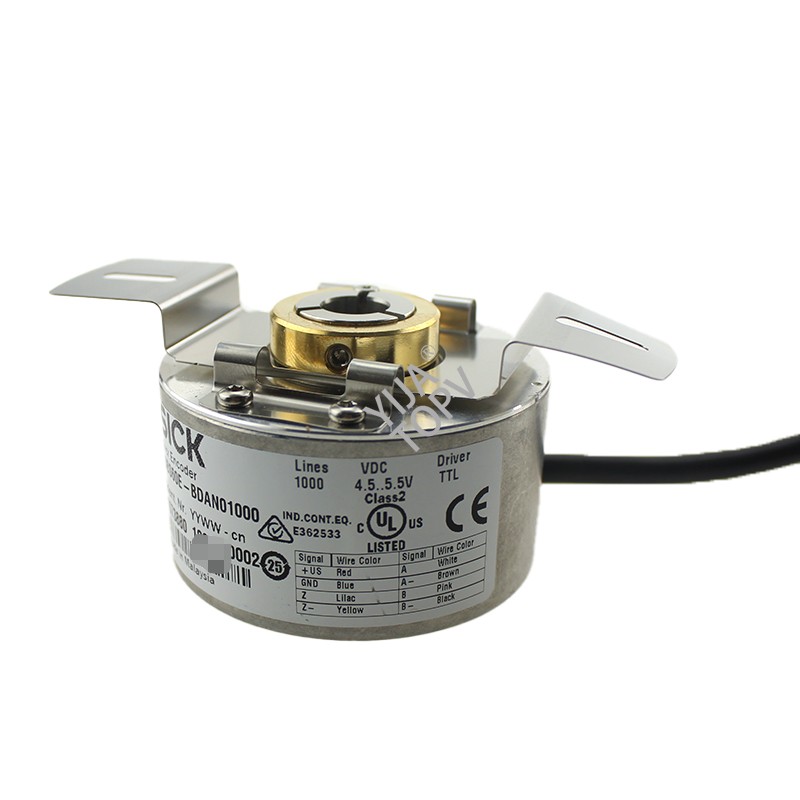

SICK DBS60E-BDAN01000 1073880 DBS60 Incremental encoders
Mechanical design
Blind hollow shaft
Shaft diameter
10 mm
Front clamp
Flange type / stator coupling
2-sided stator coupling, slot, screw hole circle 63–83 mm
Weight
+ 0.25 kg 1)
Shaft material
Stainless steel
Flange material
Aluminum
Housing material
Aluminum
Material, cable
PVC
Start up torque
+ 0.5 Ncm (+20 °C)
Operating torque
0.4 Ncm (+20 °C)
Permissible movement static
± 0.3 mm (radial)
± 0.5 mm (axial) 2)
Permissible movement dynamic
± 0.1 mm (radial)
± 0.2 mm (axial) 2)
Operating speed
6,000 min⁻¹ 3)
Maximum operating speed
9,000 min⁻¹ 4)
Moment of inertia of the rotor
50 gcm²
Bearing lifetime
3.6 x 109 revolutions
Angular acceleration
≤ 500,000 rad/s²
Connection type
Cable, 8-wire, universal, 10 m 1)
Supply voltage
4.5 ... 5.5 V
Reference signal, number
1
Reference signal, position
90°, electric, logically gated with A and B
Reverse polarity protection
✔
Short-circuit protection of the outputs
✔ 2)
Communication interface
Incremental
Communication Interface detail
TTL / RS-422
Number of signal channels
6-channel
Initialization time
< 5 ms 1)
Output frequency
+ 300 kHz 2)
Load current
≤ 30 mA, per channel
Operating current
≤ 50 mA (without load)
