Description

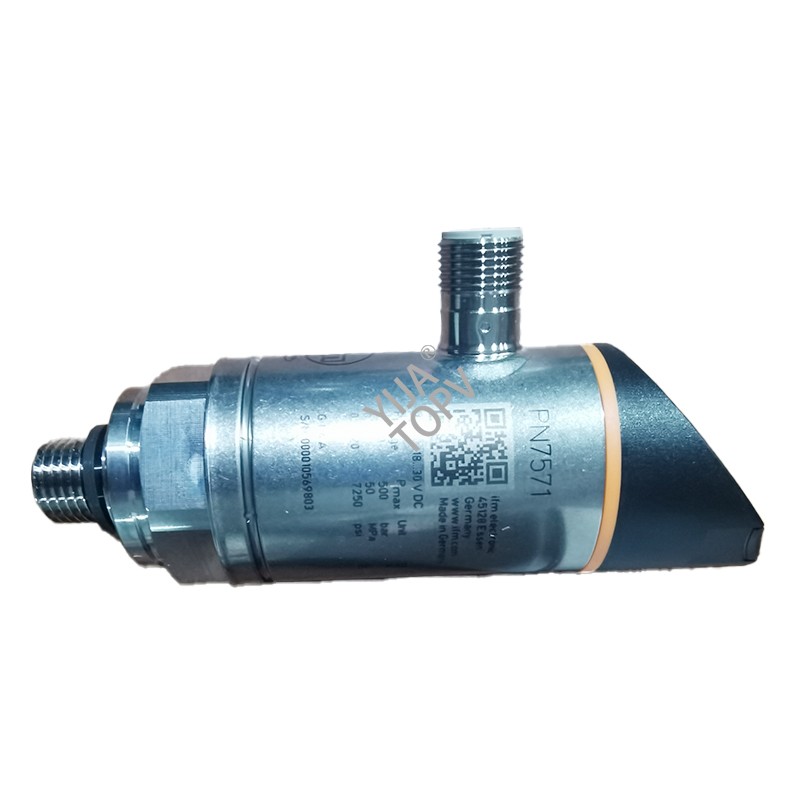

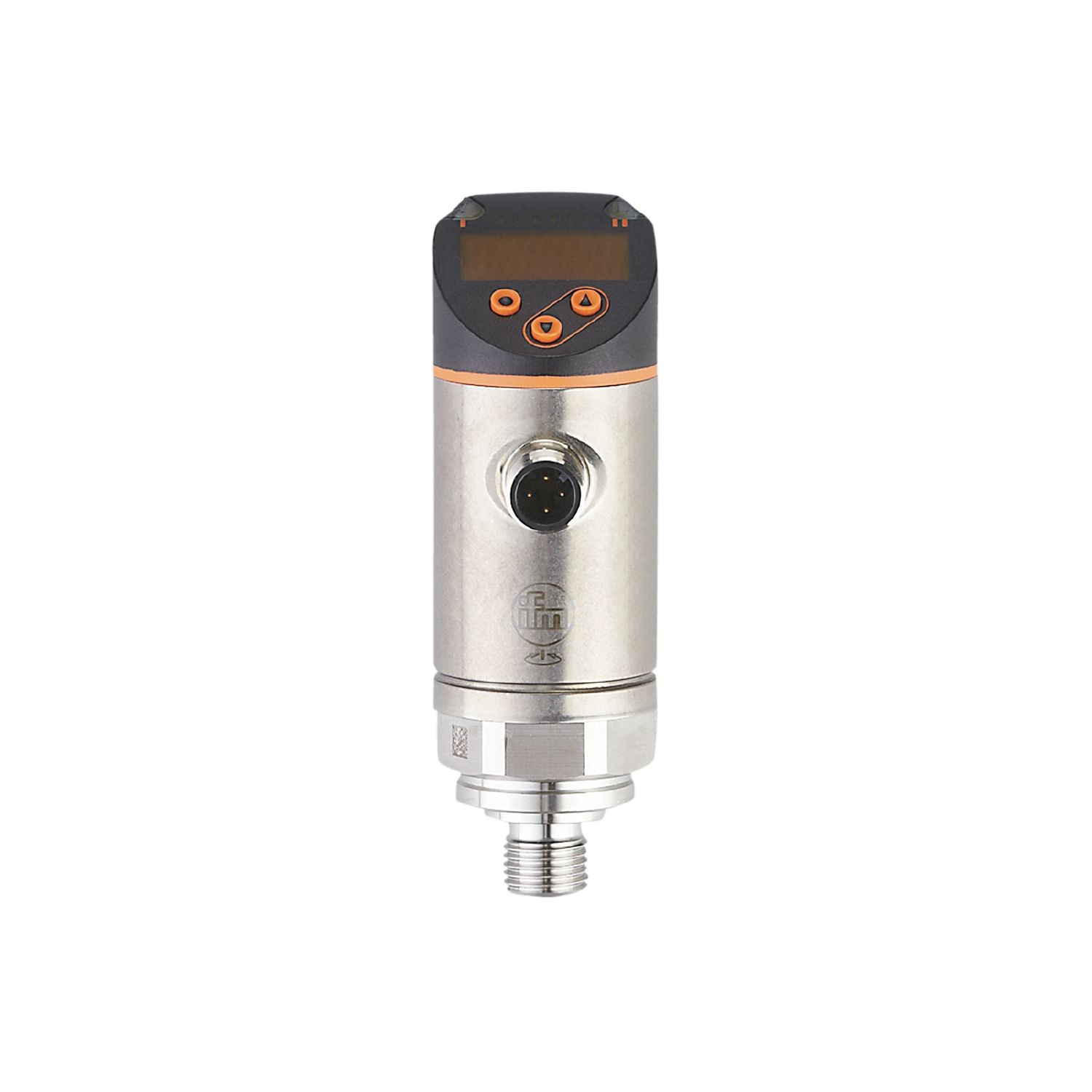

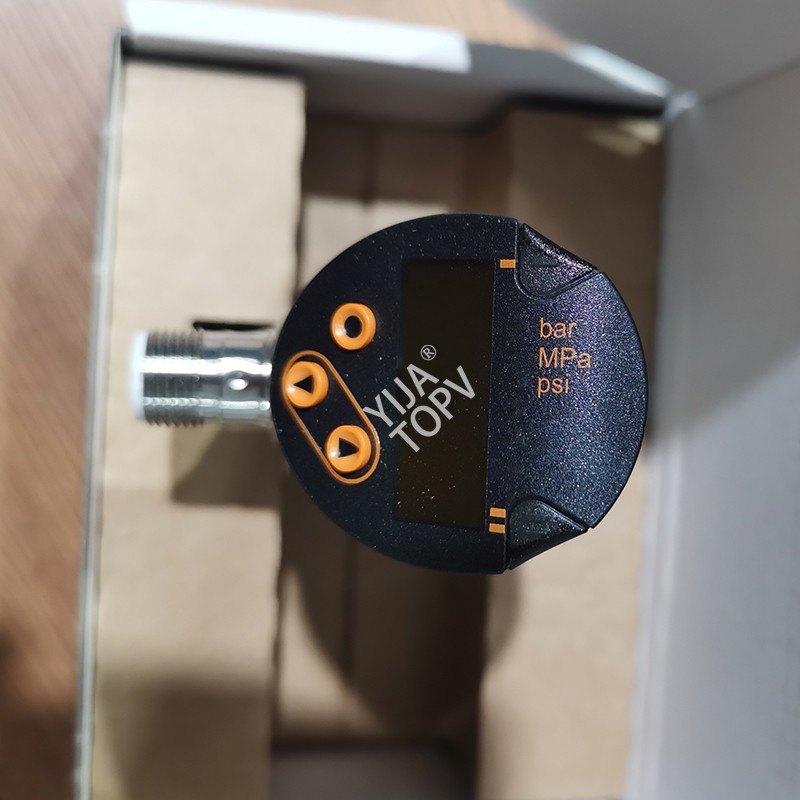

Pressure sensor with display PN7571
PN-250-SEG14-QFRKG/US/ /V
Product characteristics
Number of inputs and outputs
Number of digital outputs: 2
Measuring range
0...250 bar
0...3620 psi
0...25 MPa
Process connection
threaded connection G 1/4 external thread internal thread:M5
Application
Special feature
Gold-plated contacts
Measuring element
metallic thin film cell
Application
for industrial applications
Media
liquids and gases
Medium temperature[C]
-25...80
Min. burst pressure
1100 bar
15950 psi
110 MPa
Pressure rating
500 bar
7250 psi
50 MPa
Vacuum resistance
-1000 mbar
-0.1 MPa
Type of pressure
relative pressure
Electrical data
Operating voltage[V]
18...30 DC; (to SELV/PELV)
Current consumption[mA]
< 35
Min. insulation resistance[MΩ]
100; (500 V DC)
Protection class
III
Reverse polarity protection
yes
Power-on delay time[s]
0.3
Integrated watchdog
yes
Inputs / outputs
Number of inputs and outputs
Number of digital outputs: 2
Outputs
Total number of outputs
2
Output signal
switching signal; IO-Link; (configurable)
Electrical design
PNP/NPN
Number of digital outputs
2
Output function
normally open / normally closed; (parameterisable)
Max. voltage drop switching output DC[V]
2.5
Permanent current rating of switching output DC[mA]
150; (200 (...60 掳C) 250 (...40 掳C))
Switching frequency DC[Hz]
< 170
Short-circuit protection
yes
Type of short-circuit protection
pulsed
Overload protection
yes
