Description

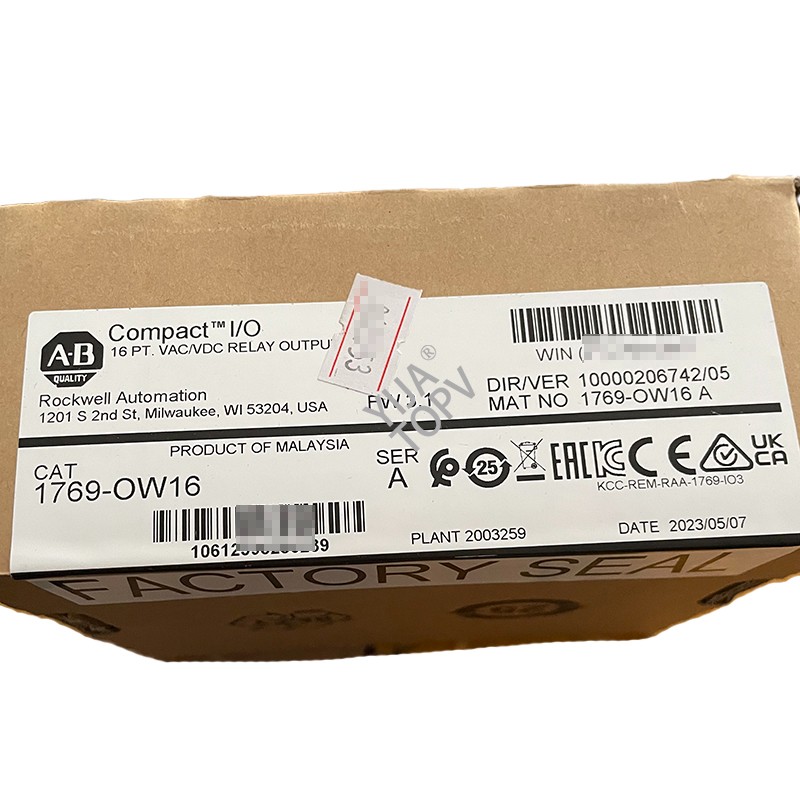

1769-OW16 Allen Bradley CompactLogix 16 Pt D/O Relay Module
The 1769-OW16 from Allen Bradley is an output module designed for flexible operations.
Capable of managing 16 outputs, this module supports an operating voltage range up to 265 volts AC and 125 volts DC, making it versatile for various applications.
Number of Outputs
16 Outputs
Operating Voltage Range
5 to 265 Volts AC and 5 to 125 Volts DC
Maximum Bus Current Draw
205 Milliamps at 5 Volts DC; 180 Milliamps at 24 Volts DC
Heat Dissipation
4.75 Watts
Maximum Signal Delay - Resistive Load
10 Milliseconds for On and Off
Maximum Off-State Leakage
0 Milliamps
Minimum On-State Current
10 Milliamps at 5 Volts DC
Maximum Continuous Current per Point
2.5 Amps
Maximum Continuous Current per Common
10 Amps
Maximum Continuous Current per Module
20 Amps
Operating Temperature Range
0 to 60 Degrees Celsius
