Description

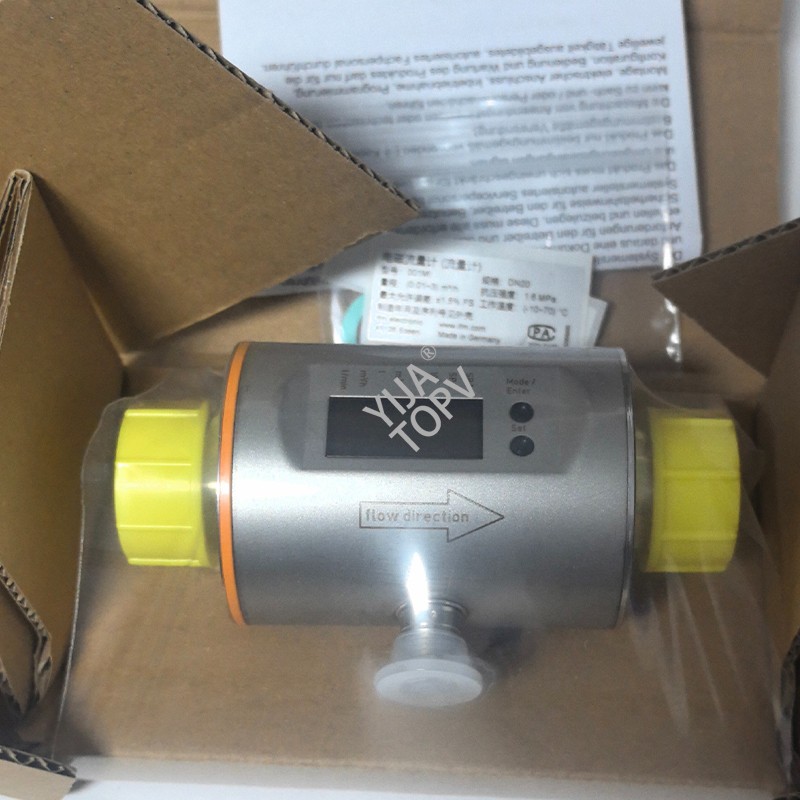

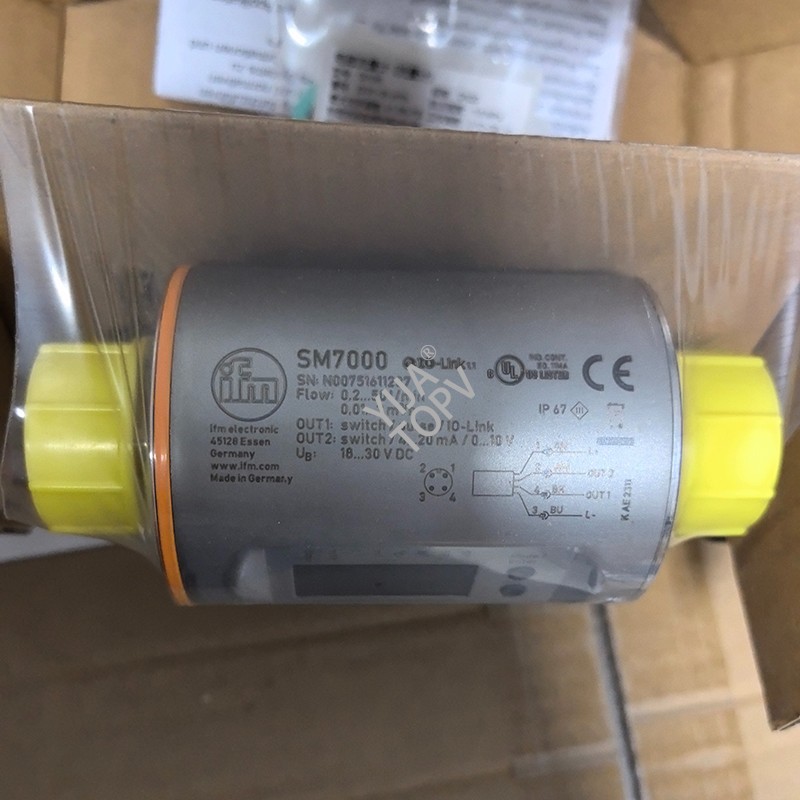

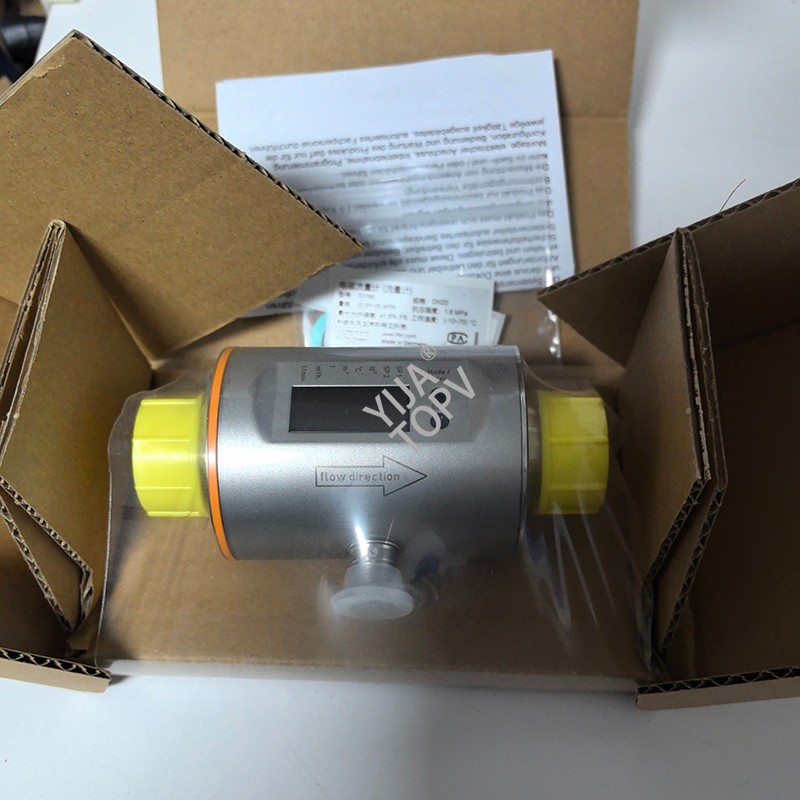

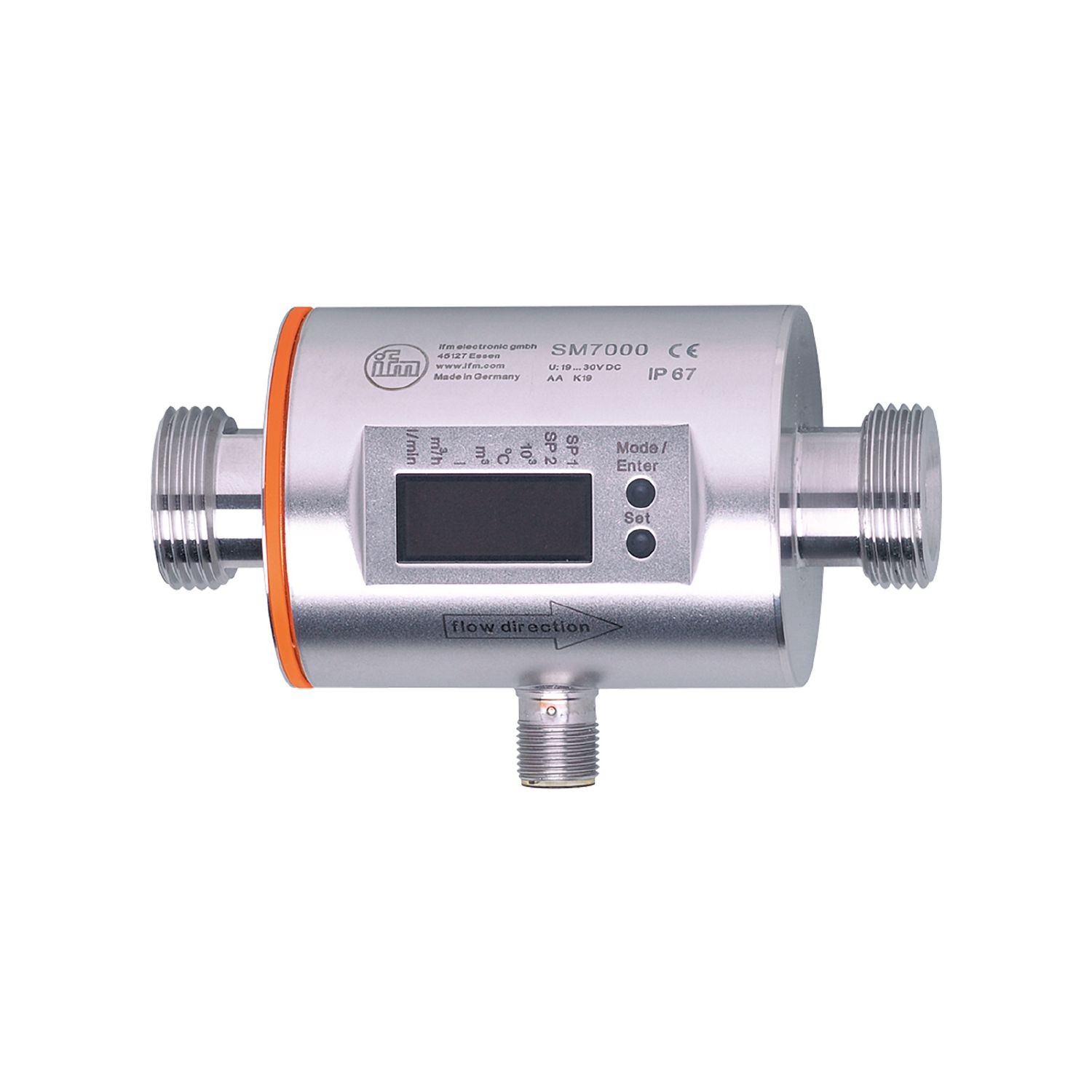

IFM Magnetic-inductive flow meter
SM7000
SMR34GGXFRKG/US-100
- Precise measurement of flow, consumption and medium temperature
- High accuracy, repeatability and measurement dynamics
- With switching output, analogue output and pulse output
- Clearly visible 4-digit LED display
| Product characteristics | ||
| Number of inputs and outputs | Number of digital outputs: 2; Number of analogue outputs: 1 | |
| Measuring range | 0.2...50 l/min | 0.01...3 m³/h |
| Process connection | threaded connection G 3/4 external thread DN20 flat seal | |
| Special feature | Gold-plated contacts | |
| Application | totaliser function; for industrial applications | |
| Installation | connection to pipe by means of an adapter | |
| Media | conductive liquids; water; hydrous media | |
| Note on media | conductivity: ≥ 20 µS/cm | |
| viscosity: < 70 mm²/s (40 °C) | ||
| Medium temperature[°C] | -10...70 | |
| Pressure rating | 16 bar | 1.6 MPa |
| MAWP for applications according to CRN | 10.4 bar | 1.04 MPa |
| Operating voltage[V] | 18...30 DC; (to SELV/PELV) | |
| Current consumption[mA] | 95; (24 V) | |
| Protection class | III | |
| Reverse polarity protection | yes | |
| Power-on delay time[s] | 5 | |
| Measuring principle | magnetic-inductive | |
| Number of inputs and outputs | Number of digital outputs: 2; Number of analogue outputs: 1 | |
| Inputs | counter reset | |
| Total number of outputs | 2 | |
| Output signal | switching signal; analogue signal; pulse signal; IO-Link; (configurable) | |
| Electrical design | PNP/NPN | |
| Number of digital outputs | 2 | |
| Output function | normally open / normally closed; (parameterisable) | |
| Max. voltage drop switching output DC[V] | 2 | |
| Permanent current rating of switching output DC[mA] | 200 | |
| Number of analogue outputs | 1 | |
| Analogue current output[mA] | 4...20; (scalable) | |
| Max. load[Ω] | 500 | |
| Analogue voltage output[V] | 0...10; (scalable) | |
| Min. load resistance[Ω] | 2000 | |
| Pulse output | flow rate meter | |
| Short-circuit protection | yes | |
| Type of short-circuit protection | pulsed | |
| Overload protection | yes | |
