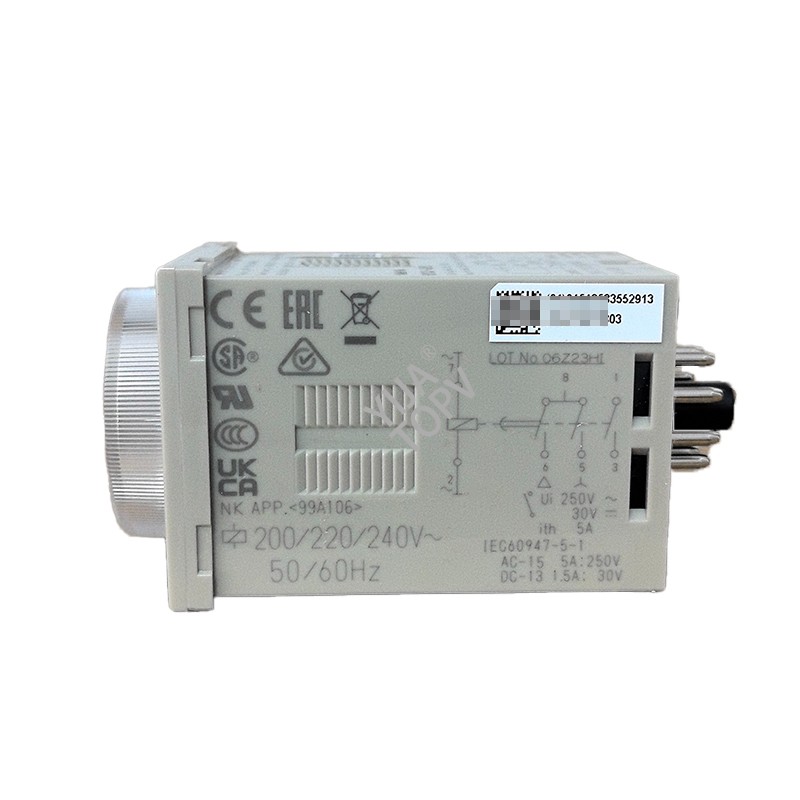

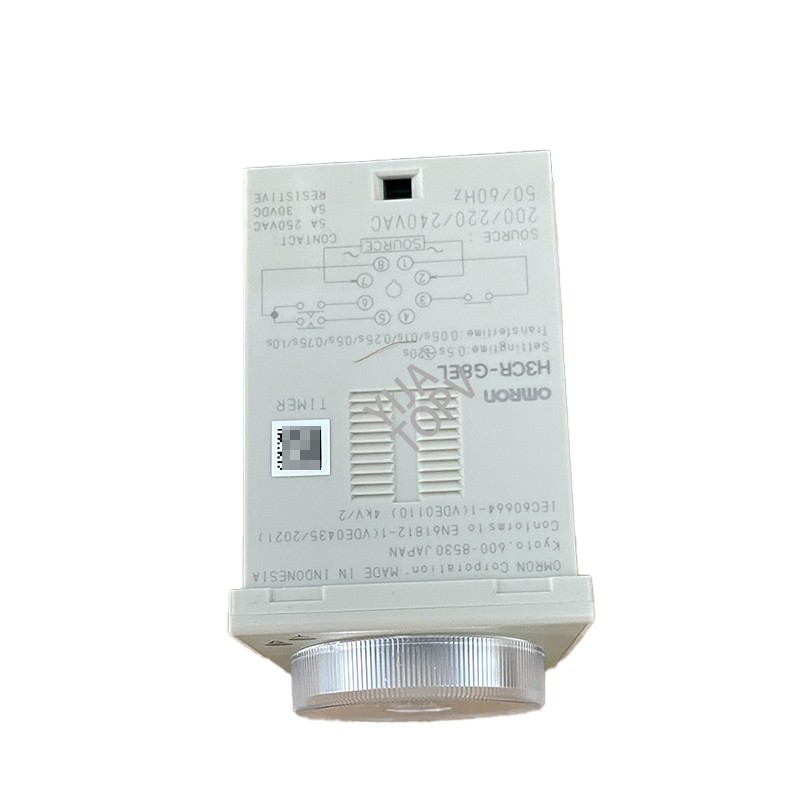

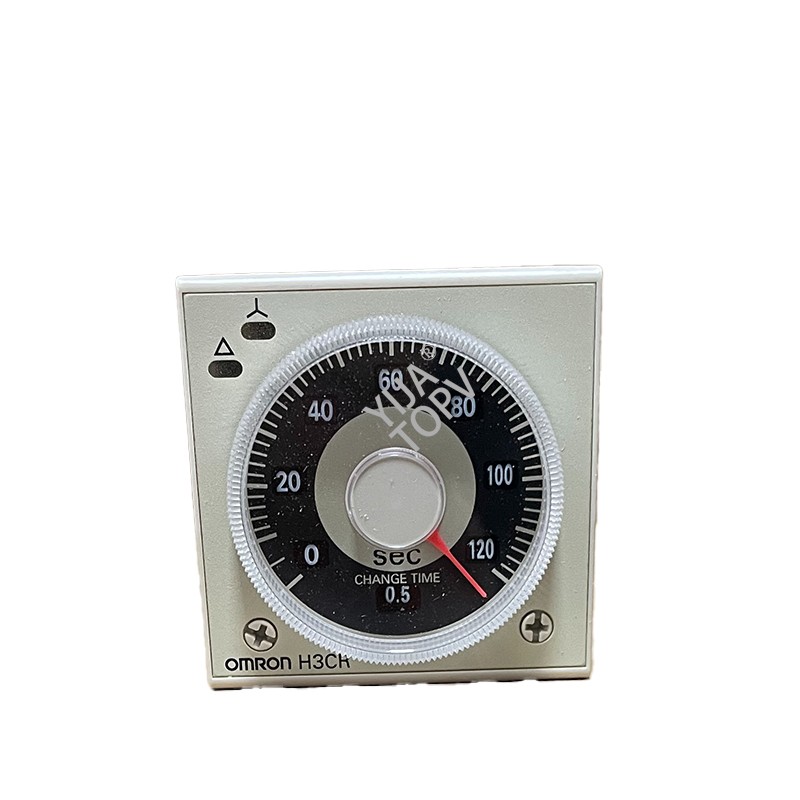

H3CR-G8EL 200-240 VAC 8pin star delta ON/OFF-delay Timer Relay
Multiple Operating Modes and Multiple Time Ranges. DIN 48 x 48-mm Multifunctional Timer. • A wide AC/DC power supply range greatly reduces the number of timer models kept in stock. • A wide range of applications with multiple operating modes, eight modes for 11-pin models and five modes for 8-pin models. • Ecological design with reduced current consumption. • Easy sequence checking with instantaneous outputs for a zero set value. • Length of 75 mm or less when panel-mounted with a P3G-08 Socket (H3CR-A8E, 100 to 240 VAC, 100 to 125 VDC) • PNP input models available. • Standards: UL, CSA, NK, LR, CCC, EN 61812-1, and CE Marking.
Rated power supply voltage
200/220/240 VAC 50/60 Hz
Allowable voltage variable range
85 to 110% of the power supply voltage
Power consumption
Approx. 12 VA (at 240 VAC)
Approx. 3 W (at 240 VAC)
Reset voltage
10% max. of rated supply voltage
Number of time ranges
4
Operation mode
Star-delta
Control output (Type)
Time-limit: SPST-NO (Start operation circuit) SPST-NO (Delta operation circuit) ,Instantaneous: SPST-NO
Control output (Contact output)
Minimum applicable load: 10 mA at 5 VDC (failure level: P Reference value)
Operating resetting
Time-limit operation/Self-reset
Star-delta transfer time
selectable from 0.05 s, 0.1 s, 0.25 s, 0.5 s, 0.75 s and 1.0 s
Ambient temperature range
Operating: -10 to 55 ℃ (with no icing)
Storage: -25 to 65 ℃ (with no icing)
Ambient humidity range
Operating: 35 to 85 %
Accuracy of operating time
±0.2% FS max.
Setting error
±5% FS ±50 ms max.
Influence of voltage
±0.2% FS max.
Influence of temperature
±1% FS max.
Insulation resistance
100 MΩ min. (at 500 VDC)
Dielectric strength
Between current carrying metal parts and non-current carrying metal parts: 2,000 VAC 50/60 Hz 1 min
Between control output terminals and operating circuit: 2,000 VAC 50/60 Hz 1 min
Between contacts of different polarity: 2,000 VAC 50/60 Hz 1 min
Between non-continuous contacts: 1,000 VAC 50/60 Hz 1 min
Impulse withstand voltage
Between power terminals: 5 kV
Between current carrying terminals and exposed non-current carrying metal parts: 5 kV
Noise immunity
±1.5 kV (between power terminals), square-wave noise by noise simulator (pulse width: 100 ns/1 µs, 1-ns rise)
Static immunity
Mulfunction: 8 kV, Destruction: 15 kV
Vibration resistance
Destruction: 10 to 55 Hz, 0.75 mm single amplitude each in 3 directions for 2 h
Malfunction: 10 to 55 Hz, 0.5 mm single amplitude each in 3 directions for 10 min
Shock resistance
Destruction: 980 m/s2, 3 times each in 6 directions
Malfunction: 294 m/s2, 3 times each in 6 directions
Life expectancy (relay output)
Electrical: 100,000 operations min. (5 A at 250 VAC, resistive load at 1800 operations/h)
Mechanical: 20 million operations min. (under no load at 1,800 operations/h)
Degree of protection
IP40 (panel surface)
Connecting method
8-pin round socket
Weight
Approx. 130 g
Applicable socket
P2CF-08/ P2CF-08-E/ PF085A/ P3G-08/ PL08/ PL08-Q/ PLE08-0
