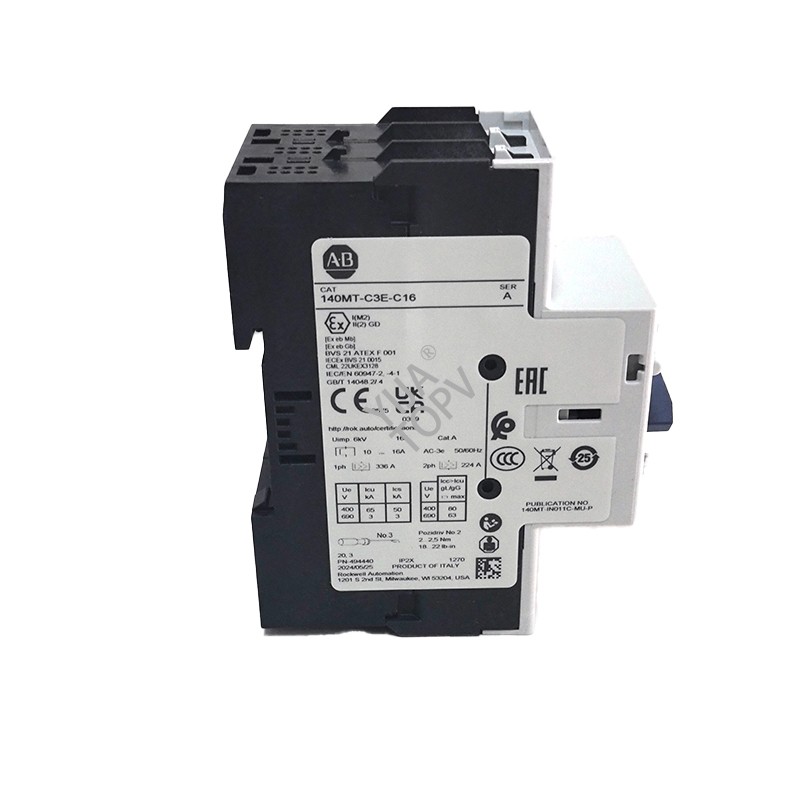

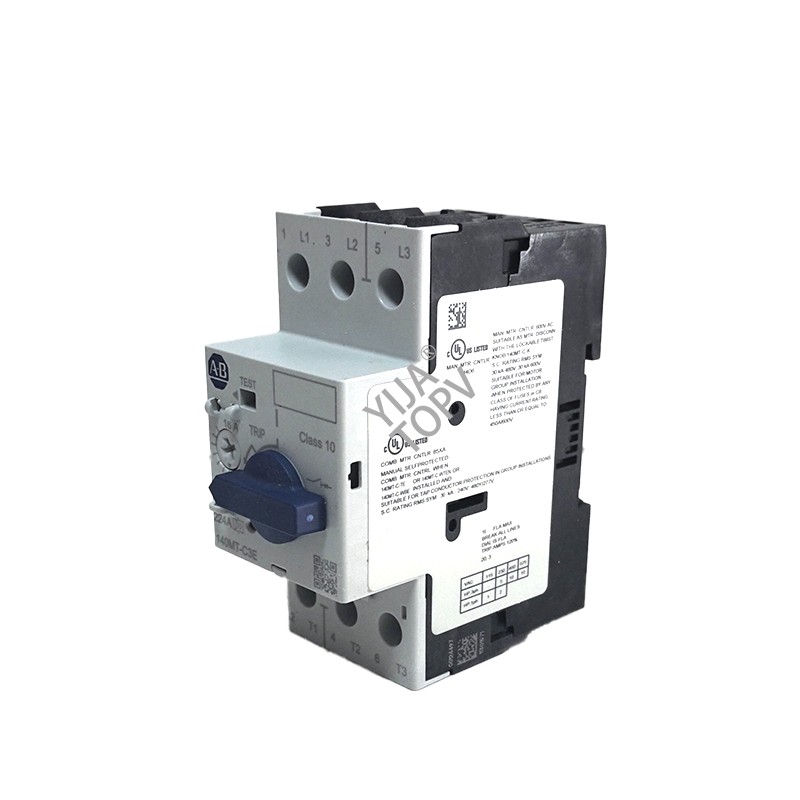

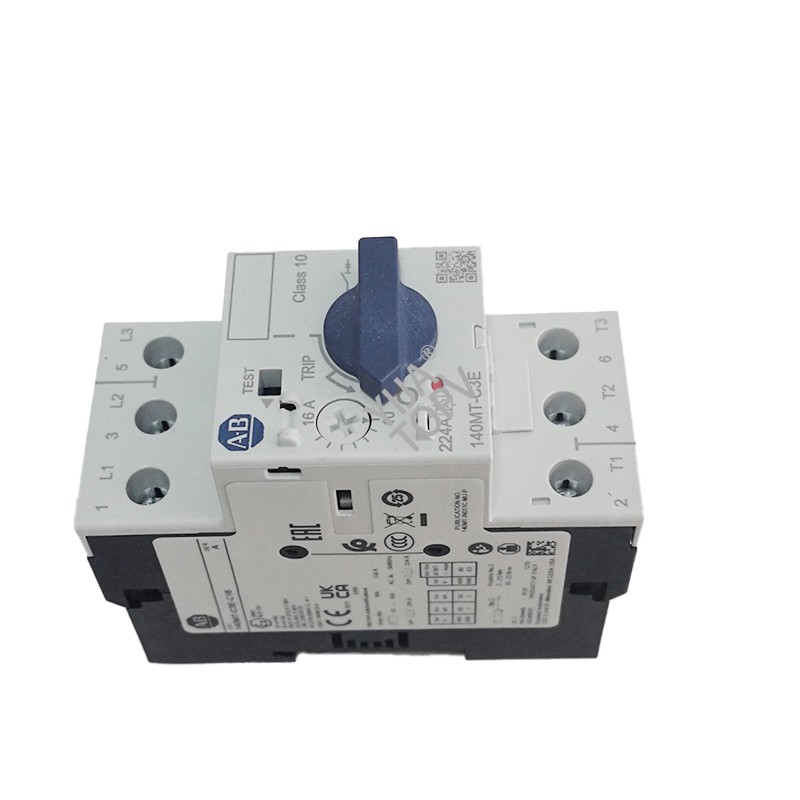

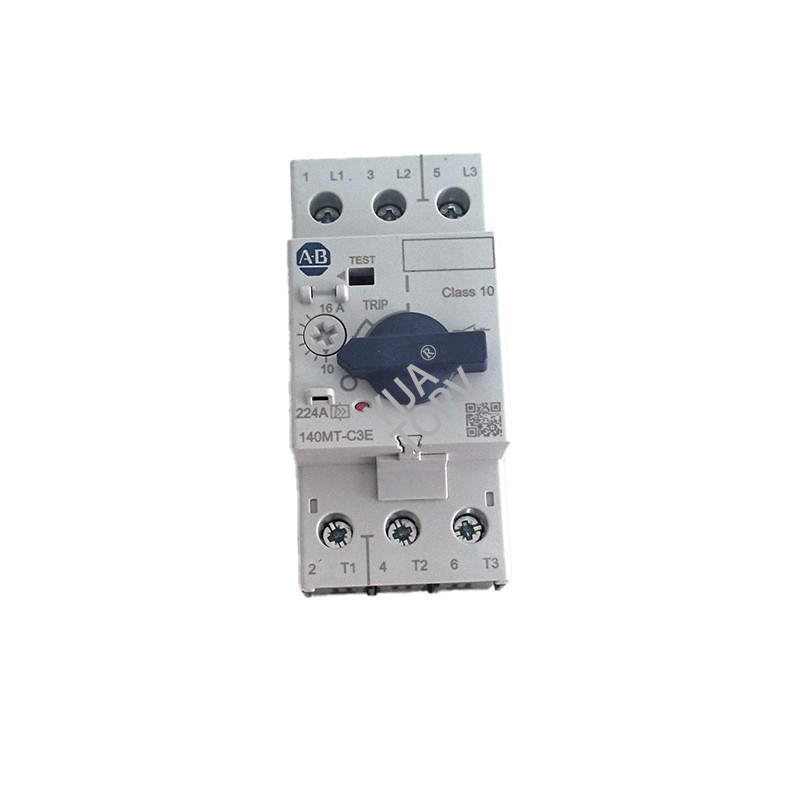

140MT-C3E-C16 Allen Bradley Motor Protection Circuit Breaker
Ensure optimal performance and safety for your motors with the Allen-Bradley Motor Protection Circuit Breaker, designed for reliable protection in demanding applications.
The Allen Bradley 140MT-C3E-C16 motor protection circuit breaker is adjustable from 10 to 16 AMPS, has Class 10 tripping (trips in 10 seconds or less) and comes with a rotary on/off handle.
This 3 phase motor protector mounts on standard 35MM din rail and comes with screw terminals for easy installation and removal.
Front and side mounted auxiliaries can be added for additional signalling and the 140MT-C3E-C16 can be combined with the 100-C and 100-E series of IEC rated contactors to create combination motor starters.
| SYSTEM VOLTAGE DATA | |
|---|---|
| Supply Voltage | 480V 60Hz |
| Maximum Available Fault Current (at the Breaker) | 0 kA |
| CIRCUIT BREAKER | |
| Circuit Breaker Type | Motor Protection Circuit Breaker |
| Adj. Thermal Current Range (A) | 10 - 16A |
| Frame Size | Frame Size C |
| Breaking Capacity | Standard Breaking Capacity |
| Application | Standard Magnetic Trip (Fixed at 14 x le) |
| ASSEMBLY | |
| Factory or User Assembled? | Factory Assembled |
| OPTIONS | |
| Side Mount Shunt Trip and Undervoltage Release | None |
| Front Mount Auxiliary and Trip Contacts | None |
| Side Mount Auxiliary and Trip Contacts | None |
