Description

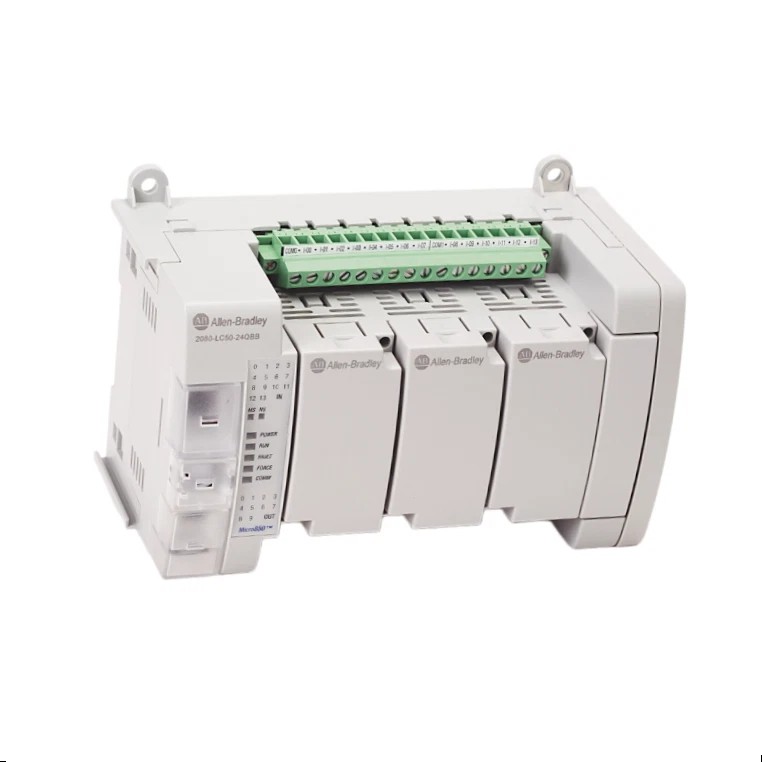

2080-LC50-24QBB Allen Bradley Micro850 24-Point controller
The 2080-LC50-24QBB is a controller from the Allen Bradley Micro 850 series, suitable for various automation tasks.
This device features 14 inputs and 10 outputs for 24V AC/DC, making it flexible for different applications.
24V AC/DC Inputs
14 Inputs
24V Source Outputs
10 Outputs
Wiring Category
Category 2 on the signal ports, power ports, and communication ports
Wire Type
Copper Conductors Only
Terminal Screw Torque
0.6 Nm
Power Consumption
28 Watts
Power Supply Voltage Range
20.4-26.4V DC
Enclosure Rating
Meets IP20 Standards
Minimum Output Load Current
10 mA
Operating Temperature
-20 to 65 degrees Celsius
