Description

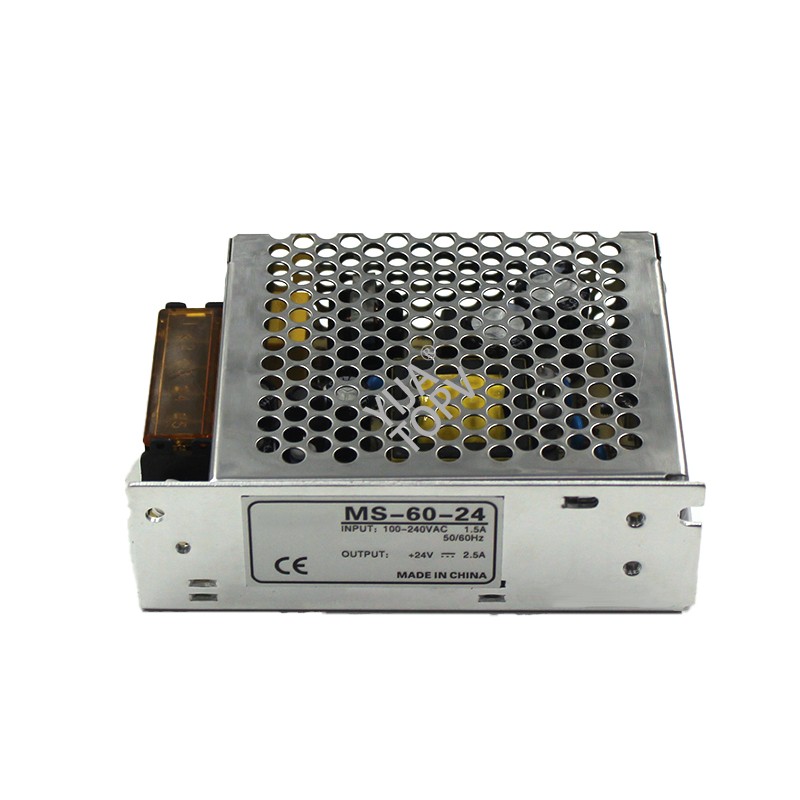

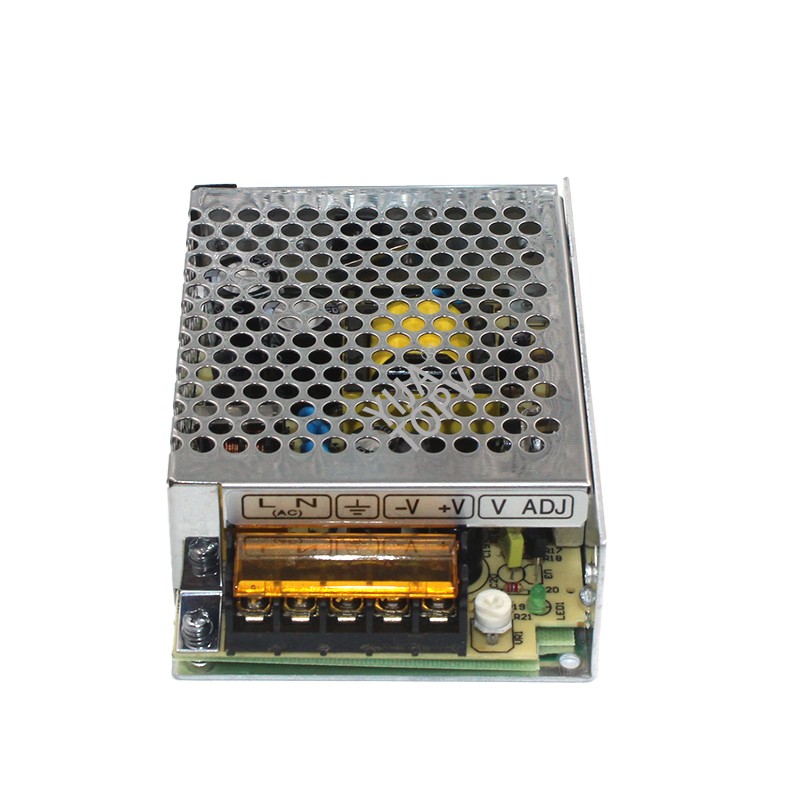

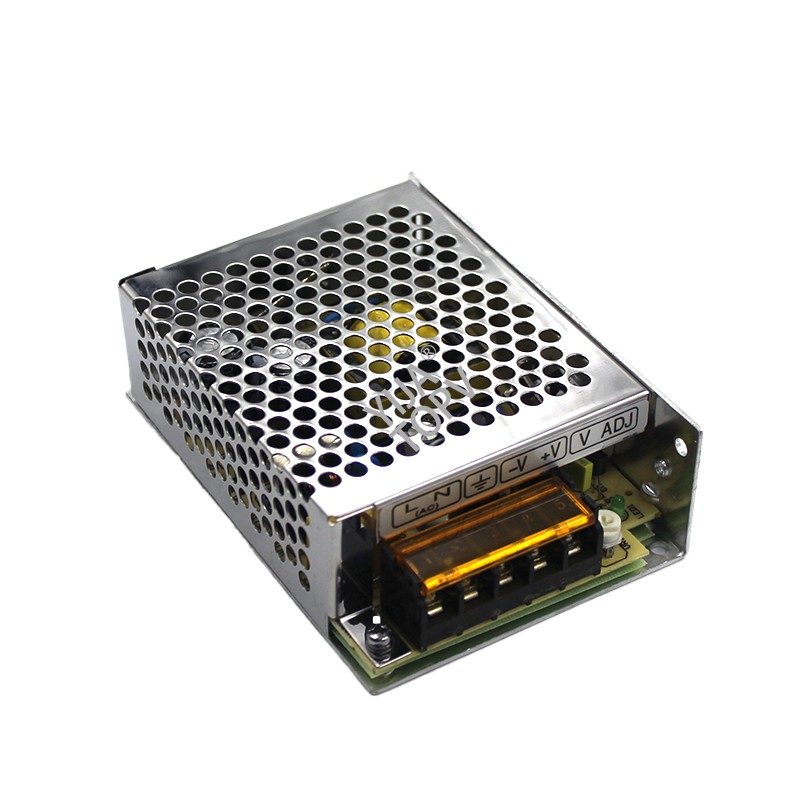

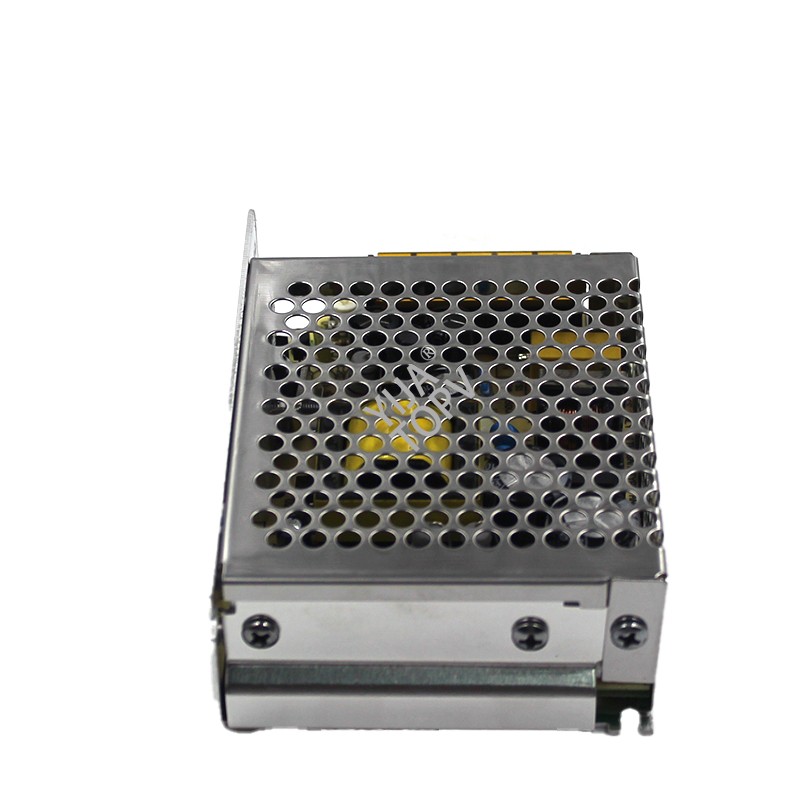

MS-60 is a series of 60W AC-DC switching power supplies, known for their small size and various output voltage options. They are commonly used in applications like LED lighting, CCTV, and other devices requiring a DC power source.
型号Model
Specification
MS-60-5
MS-60-12
MS-60-15
MS-60-24
DC output voltage,current
5V 0~12A
12V 0~5A
15V 0~4A
24V 0~2.5A
Wave and noise
75mVp-p
100mVp-p
100mVp-p
100mVp-p
Inlet wire stability
±0.5%
±0.5%
±0.5%
±0.5%
Load stability
±1%
±0.5%
±0.5%
±0.5%
Efficiency
80%
82%
82%
84%
Adjustable range for DC voltage
±10%
±10%
±10%
±10%
Input voltage range
85~264VAC 120~370VDC 47~63Hz
Impact current
Cold start current
15A/115VAC 30A/230VAC
Overload protection
105%～150%cut off the output,automatic recovery
Setup,rise,hold up time
200ms,100ms,20ms/230VAC at full load
Withstand voltage
I/P-O/P:1.5KV I/P-FG:1.5kV O/P-FG:0.5KV 1minute
Isolation resistance
I/P-O/P I/P-FG O/P-FG:500VDC/100MΩ
Working temperature
-10℃~+50℃
Dimension
111×78×36mm
Weight
0.27kg
