LM12 M12 series Inductive Proximity switch

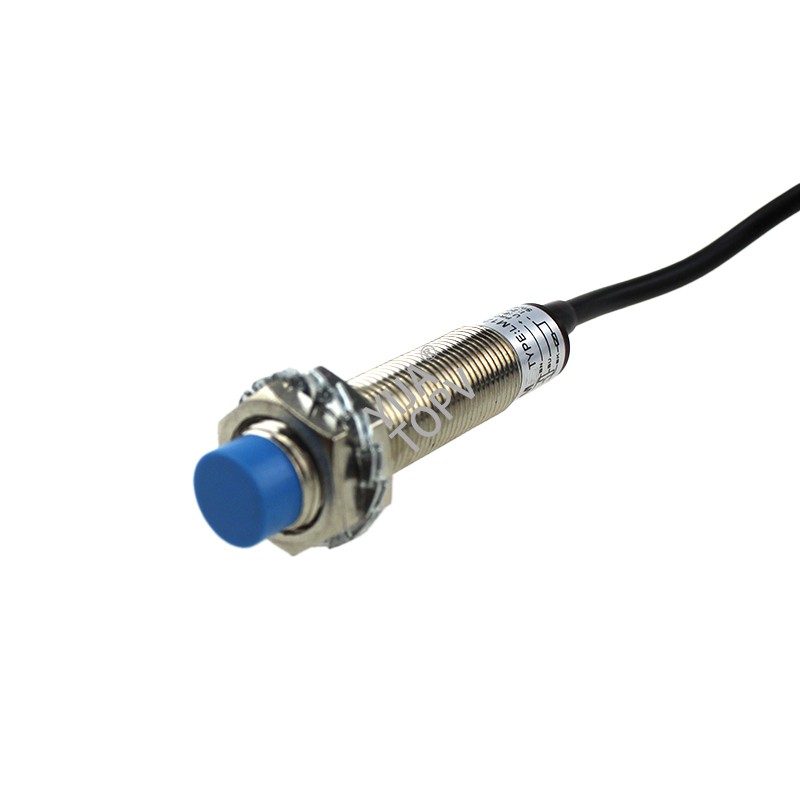

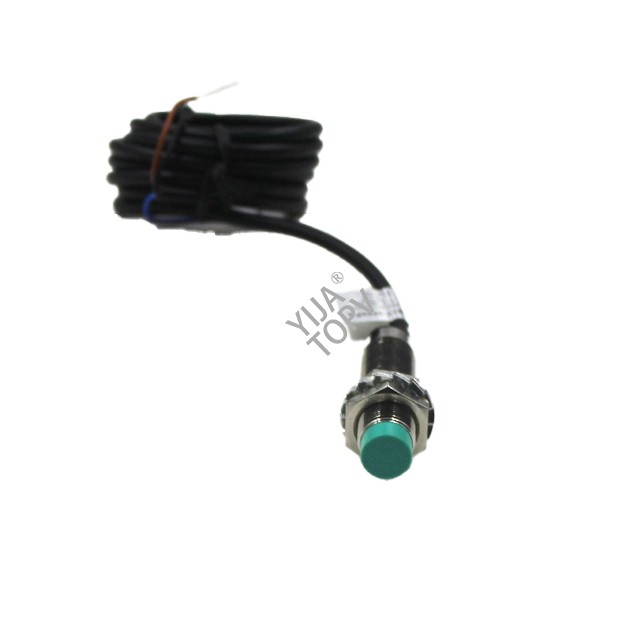

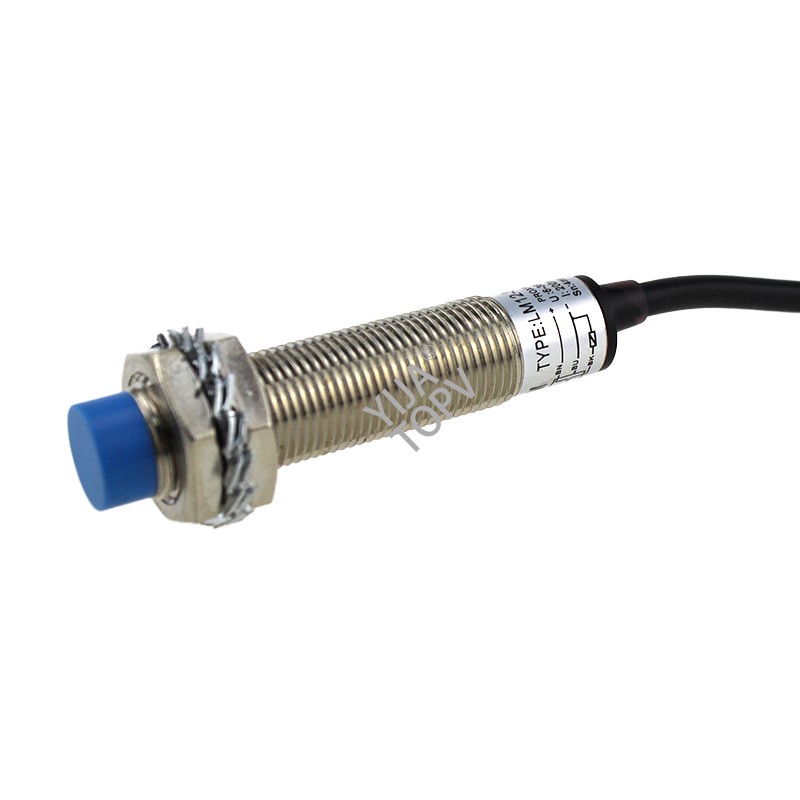

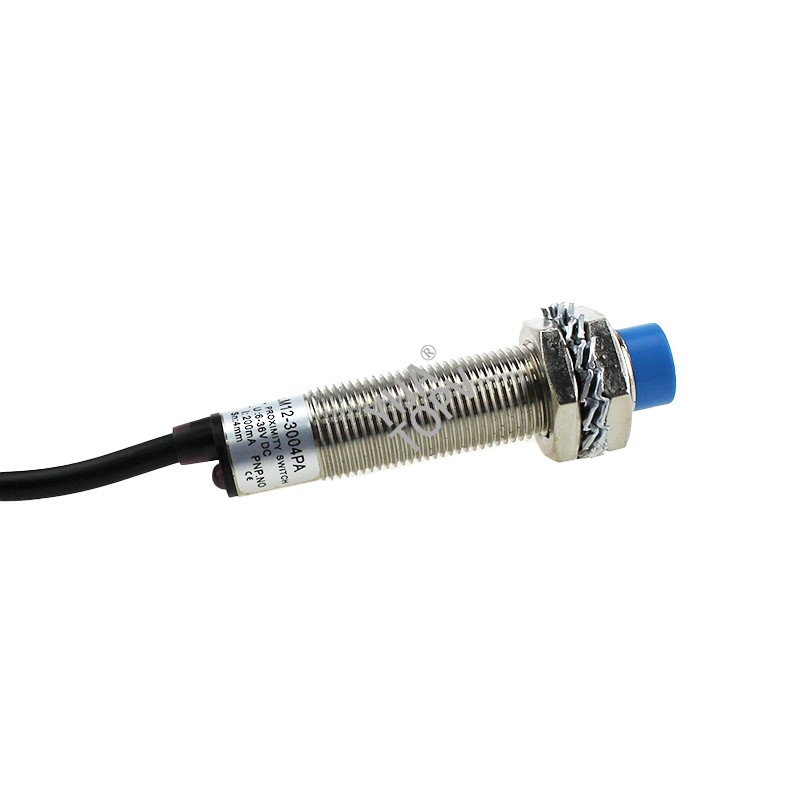

M12 cylinder type inductive proximity switch , standard sensing range : 2mm , 4mm .
Longer sensing distance available, contact us , our engineer will give detail solution!
An inductive proximity sensor can detect metal targets approaching the sensor, without physical contact with the target.
Inductive Proximity Sensors are roughly classified into the following three types according to the operating principle:
the high-frequency oscillation type using electromagnetic induction, the magnetic type using a magnet, and the capacitance type using the change in capacitance.
| Detecting rang 2mm | YIJATOPV part no. | other part no. | OMRON Omron part no. | Autonics Part no. | |||
| Flush | DC | NPN | NO | LM12-3002NA | LJ12A3-2-Z/BX | E2E-X2E1 | PR12-2DN |
| NC | LM12-3002NB | LJ12A3-2-Z/AX | E2E-X2E2 | PR12-2DN2 | |||
| NO+NC | LM12-3002NC | LJ12A3-2-Z/CX | |||||
| PNP | NO | LM12-3002PA | LJ12A3-2-Z/BY | E2E-X2F1 | PR12-2DP | ||
| NC | LM12-3002PB | LJ12A3-2-Z/AY | E2E-X2F2 | PR12-2DP2 | |||
| NO+NC | LM12-3002PC | LJ12A3-2-Z/CY | |||||
| 2 Wires | NO | LM12-3002LA | LJ12A3-2-Z/EX | ||||
| NC | LM12-3002LB | LJ12A3-2-Z/DX | |||||
| AC | SCR | NO | LM12-2002A | LJ12A3-2-J/EZ | E2E-X2Y1 | PR12-2AO | |
| NC | LM12-2002B | LJ12A3-2-J/DZ | E2E-X2Y2 | PR12-2AC | |||
| NO+NC | |||||||
| Relay output | |||||||
| Detecting rang 4mm | |||||||
| Non-flush | DC | NPN | NO | LM12-3004NA | LJ12A3-4-Z/BX | E2E-X5ME1 | PR12-4DN |
| NC | LM12-3004NB | LJ12A3-4-Z/AX | E2E-X5ME2 | PR12-4DN2 | |||
| NO+NC | LM12-3004NC | LJ12A3-4-Z/CX | |||||
| PNP | NO | LM12-3004PA | LJ12A3-4-Z/BY | E2E-X5MF1 | PR12-4DP | ||
| NC | LM12-3004PB | LJ12A3-4-Z/AY | E2E-X5MF2 | PR12-4DP2 | |||
| NO+NC | LM12-3004PC | LJ12A3-4-Z/CY | |||||
| 2 Wires | NO | LM12-3004LA | LJ12A3-4-Z/EX | ||||
| NC | LM12-3004LB | LJ12A3-4-Z/DX | |||||
| AC | SCR | NO | LM12-2004A | LJ12A3-4-J/EZ | E2E-X5MY1 | PR12-4AO | |
| NC | LM12-2004B | LJ12A3-4-J/DZ | E2E-X5MY2 | PR12-4AC | |||
| NO+NC | |||||||
| Relay output | |||||||
| Sensor Characteristics | |||||
| Output current | DC | 200mA | |||
| SCR/relay | 300mA | ||||
| Output voltage drop | DC(NPN;PNP)type <3V;2wires type:<3.9V;AC type: AC <10VDC< 3V ;AC< 10V | ||||
| Consumption current | DC(NPN;PNP) DC 12V 8mA;24V 15mA; AC type: AC <10mA DC<15mA;AC<10mA | ||||
| Standard detected object | 15×15×1(A3 Iron) | ||||
| Repeated precision | 0.01 | ||||
| Response Frequency | 400Hz/25Hz | ||||
| Working environment temperature | -25℃ ~+75℃ | ||||
| Insulation resistance | ≥50MΩ | ||||
| Shell material | Metal | ||||
| Protection grade | IP67 | ||||
| Alternative model | E2E-X5M□ | ||||
