Description
JM316 Rolling Counter- 360RPM Mechanical Rotation Length Counter Wheel, Textile Length Meter Transmission
Feature:
1. This counter has six digits, the rotation direction of the shaft can be rotated forward or backward, forward rotation is
incremental increase, and reverse rotation is decrement. The number of records is 1～99999.9.
2. When the second digit of the counter shows 1, the record length is 1M, and the scroll wheel rotates 3 times, and so on, every decimal. The transmission ratio is 1:3, and the counting speed is 360 rpm.
3. This model is equipped with a zero reset mechanism. If a certain number is recorded, you can press the reset button to reset the numbers to zero, and then record the second stage
4. This product has flexible number skipping, correct counting, clear number display, and the working environment temperature can still keep normal counting from -15℃ to 55℃.

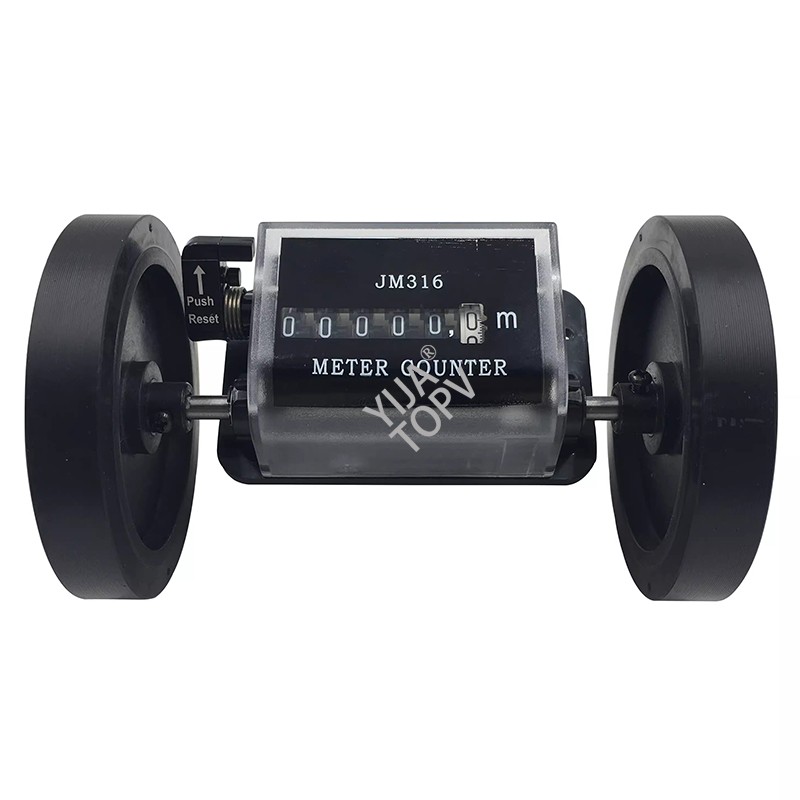

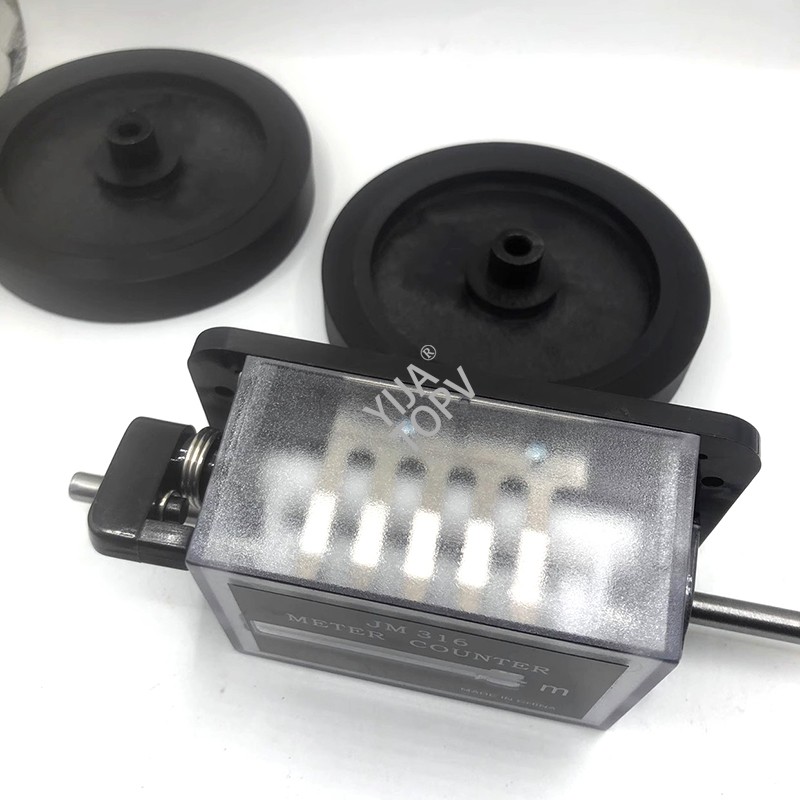

JM316 Meter counting wheel
Model
JM316
Counting range
0-99999.9 99999.9-0
Counting rate
200 counts per minute
Transmission ratio
1:3
Reset mode
Pressing type
Dimensions
175×106×106mm
Installation size
98X16mm
