Description

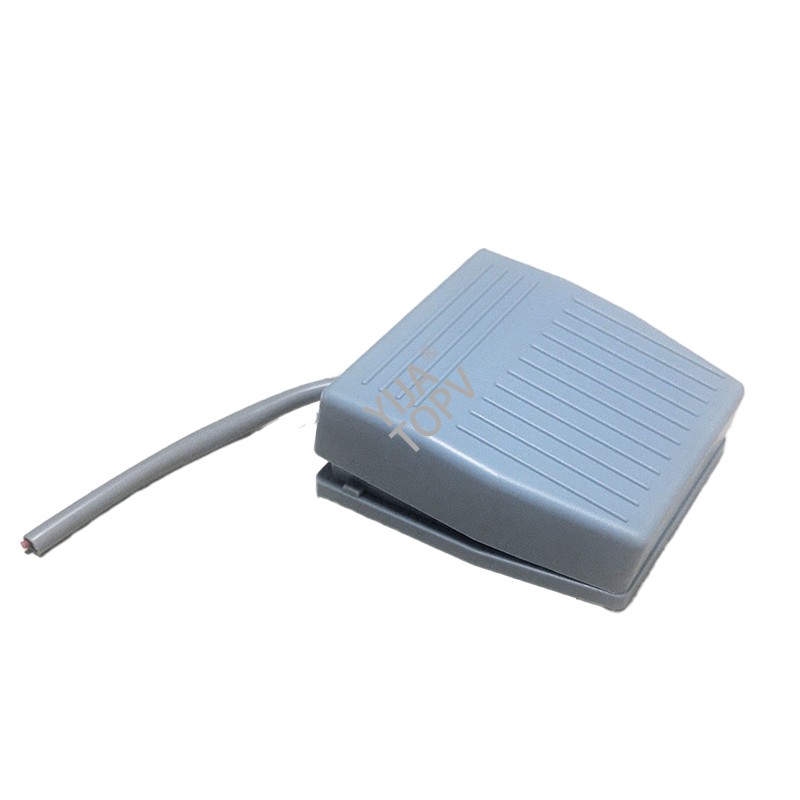

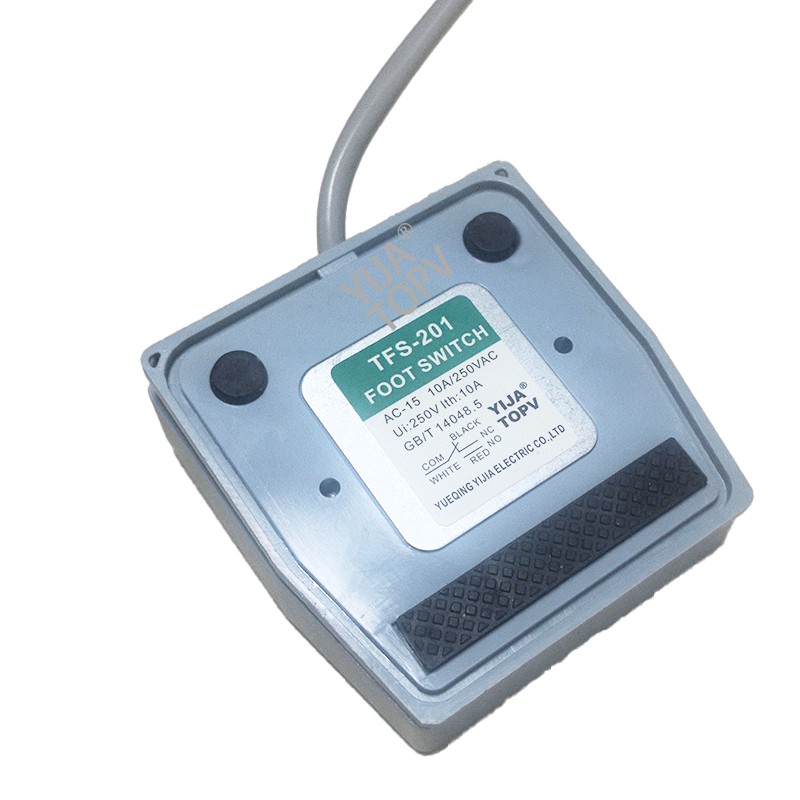

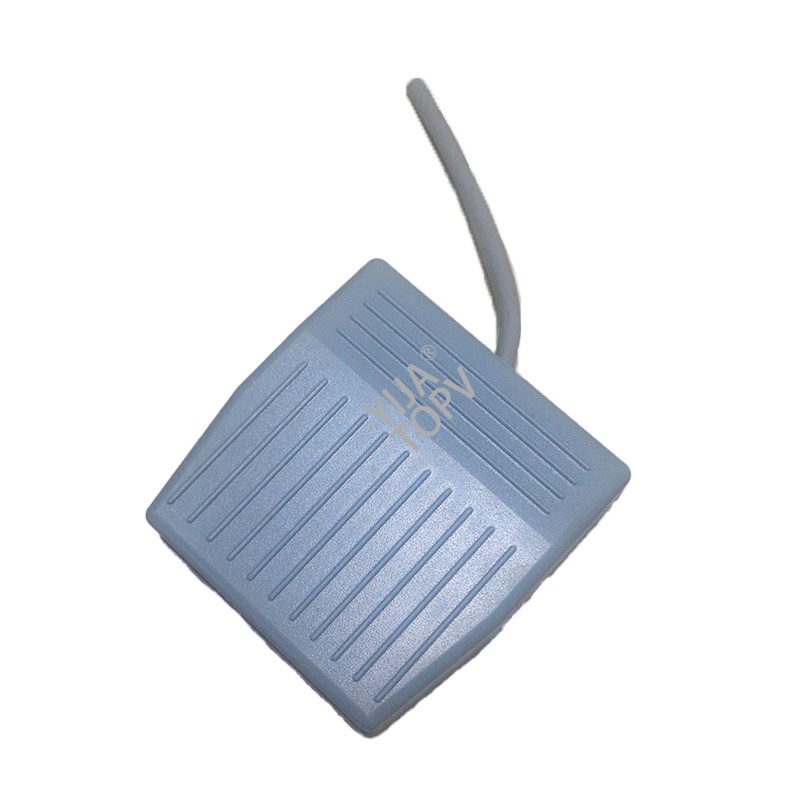

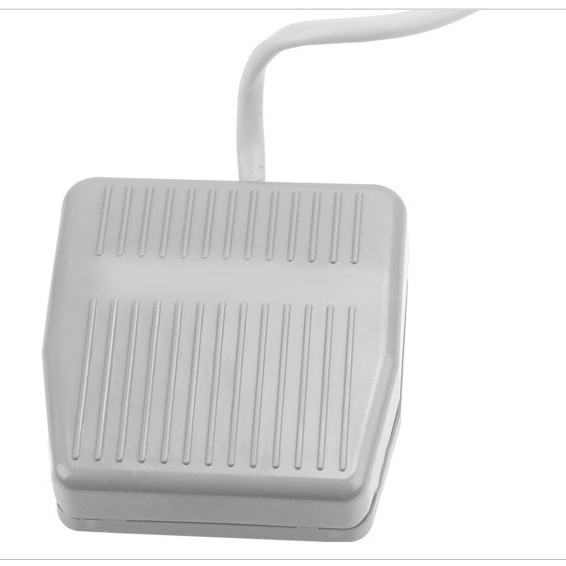

TFS-201 foot switches
Foot switches are a rugged electrical switch that is operated by foot pressure to change contacts within an electrical circuit. Often used on large machinery where hand operated switches are a safety concern. Some foot switches come with guard covers and feature various cable lengths, colours and contact configurations to meet a number of different requirements.
Emergency stop foot switches are a safety device used in industrial settings. They are operated by the worker's foot, which makes them quick and simple to use. These switches are designed to prevent injury to personnel, by breaking a circuit to stop the machinery they are using from functioning.
Foot switches are available in two common operating types:
- Maintained / Latching - activated when pressure is applied and remains in the contact position until the switch is pressed again.
- Momentary - requires the pedal to be compressed continually while in operation, once pressure is removed the contacts reset to the original state.
| Product name | Foot switch, Pedal switch |
| Part no. | TFS-201 |
| Rated current | 10A |
| Rated voltage | 12-380V |
| Insulation voltage | 2500V |
| Contact type | 1NC+1NO |
| Operation structure | Automatic reset |
| Shell material | Plastic |
| Cable/wire length | 15CM, 1M, 2M, can be customized |
| Plug type | can be customized |
