  1. IFM SA5000 Flow sensor

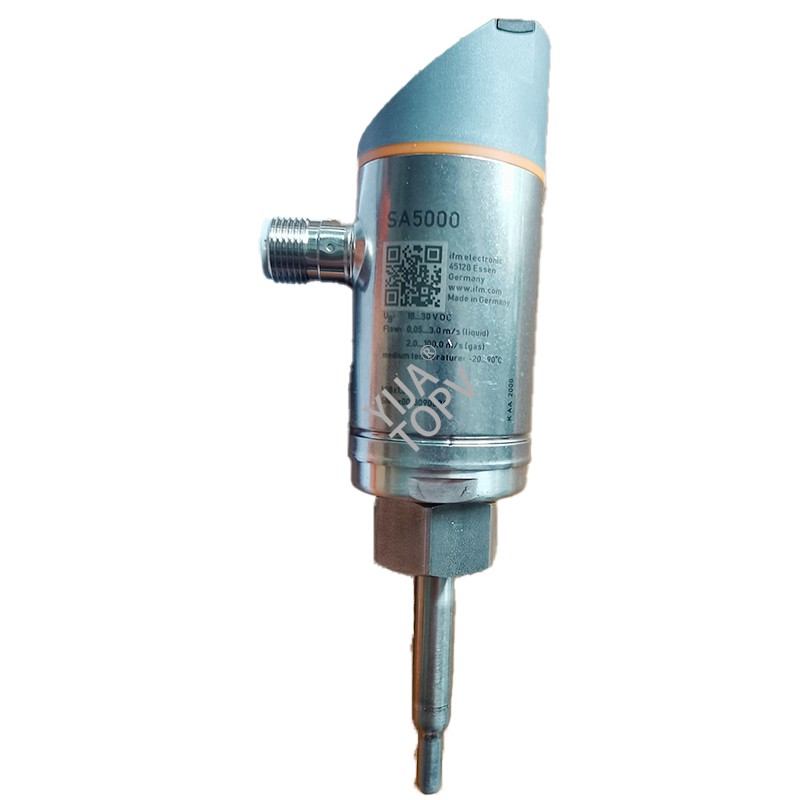

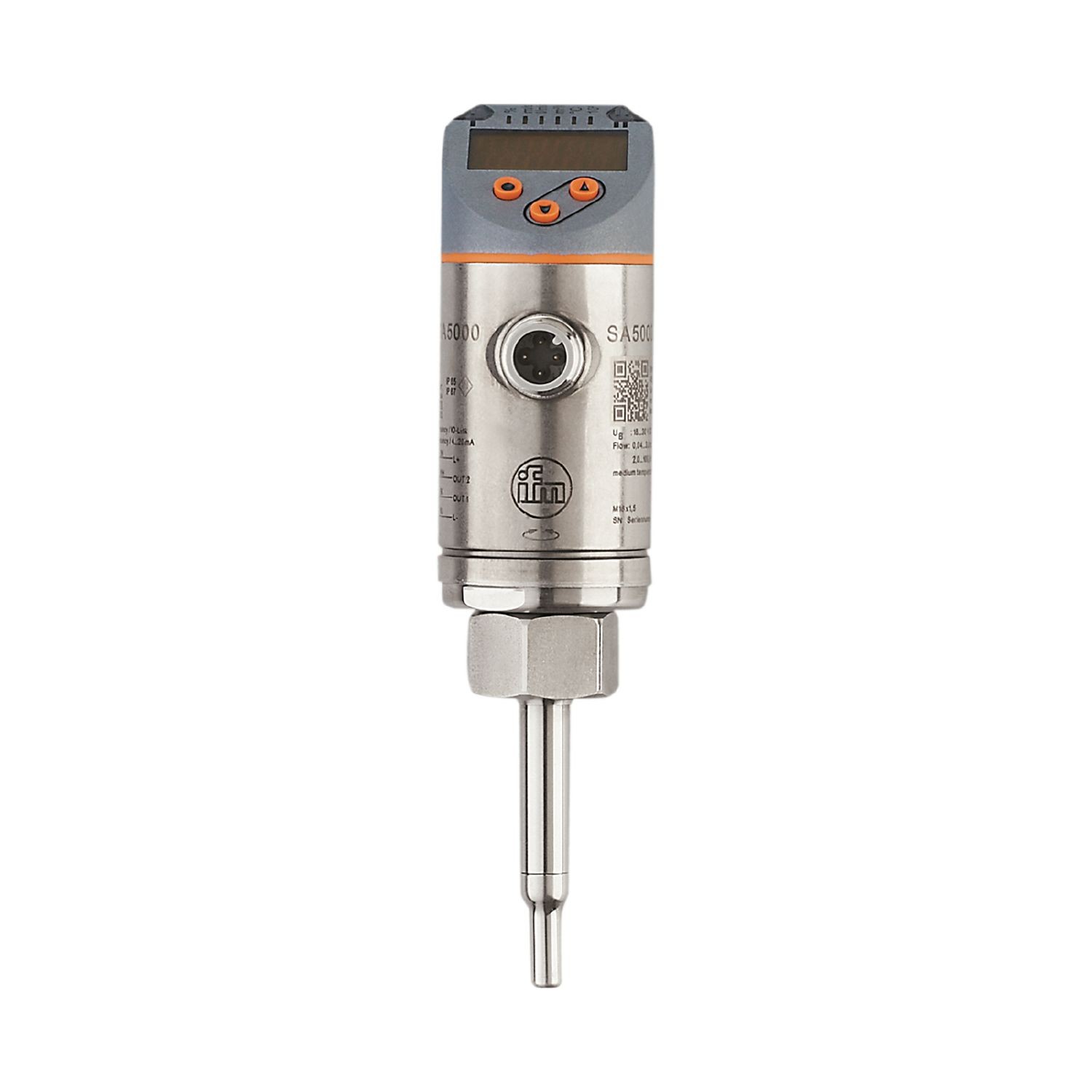

IFM SA5000 Flow sensor

  • Product Item：SAD10XDBFRKG/US-100
  • IFM Flow sensor
  • ifm electronic SA5000 Series Flow Sensor
  • SAD10XDBFRKG/US-100
  • brand new and original
    • IFM Flow sensor  , air flow sensor  , gas flow sensor  , water flow sensor
    Inquiry Send Email

    Description

    IFM  SA5000  Flow sensor

    • Measurement of flow and temperature at the same time
    • Optimised for water, oils and air

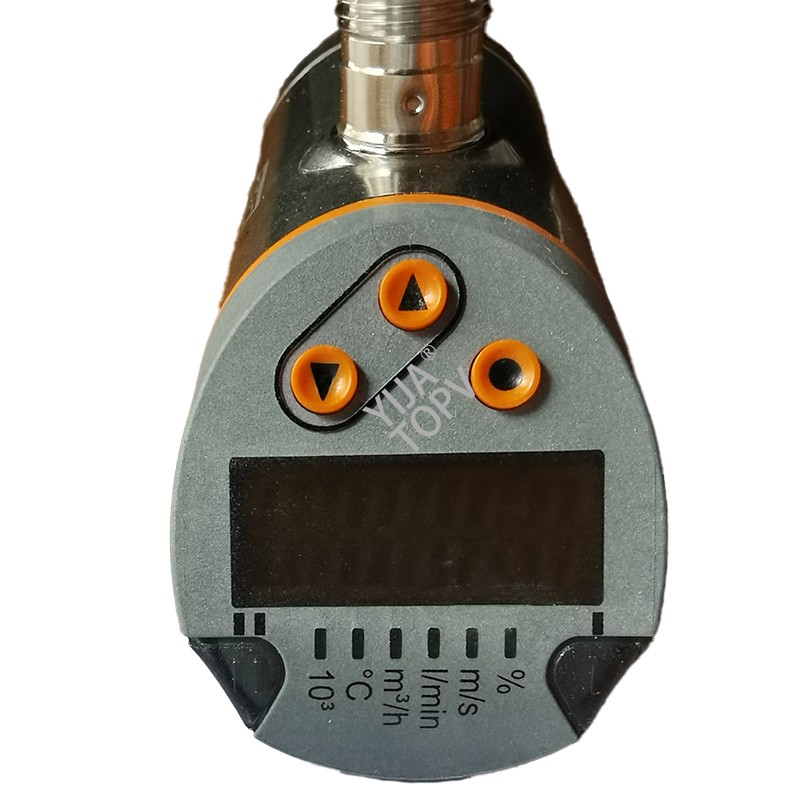

    • Red/green display for clear identification of the acceptable range
    • With switching output, analogue signal and IO-Link
    • The process connection can be rotated for optimum alignment
    Product characteristics
    Number of inputs and outputs Number of digital outputs: 2; Number of analogue outputs: 1
    Process connection threaded connection M18 x 1,5 internal thread
    Application
    Special feature Gold-plated contacts
    Media water; glycol solutions; air; oils
    Note on media low-viscosity oils with viscosity: ≤ 40 mm²/s (40 °C)
    high-viscosity oils with viscosity: > 40 mm²/s (40 °C)
    Medium temperature[°C] -20...90
    Pressure rating 100 bar （10 MPa）
    MAWP for applications according to CRN[bar] 100
    Electrical data
    Operating voltage[V] 18...30 DC
    Current consumption[mA] < 100
    Protection class III
    Reverse polarity protection yes
    Power-on delay time[s] 10
    Measuring聽principle calorimetric
    Inputs / outputs
    Number of inputs and outputs Number of digital outputs: 2; Number of analogue outputs: 1
    Outputs
    Total number of outputs 2
    Output signal switching signal; analogue signal; frequency signal; IO-Link; (configurable)
    Electrical design PNP/NPN
    Number of digital outputs 2
    Output function normally open / normally closed; (parameterisable)
    Max. voltage drop switching output DC[V] 2.5
    Permanent current rating of switching output DC[mA] 250
    Number of analogue outputs 1
    Analogue current output[mA] 4...20; (scalable)
    Max. load[惟] 350
    Short-circuit protection yes
    Type of short-circuit protection pulsed
    Overload protection yes
    Frequency of the output[Hz] 0...1000
    Measuring/setting range
    Probe length L[mm] 45
    Operating mode relative; absolutely liquid; absolutely gaseous; (absolute: reference measurement recommended; Factory setting: relative)
    Temperature monitoring
    Measuring range[°C] -20...90
    Resolution[°C] 0.2
