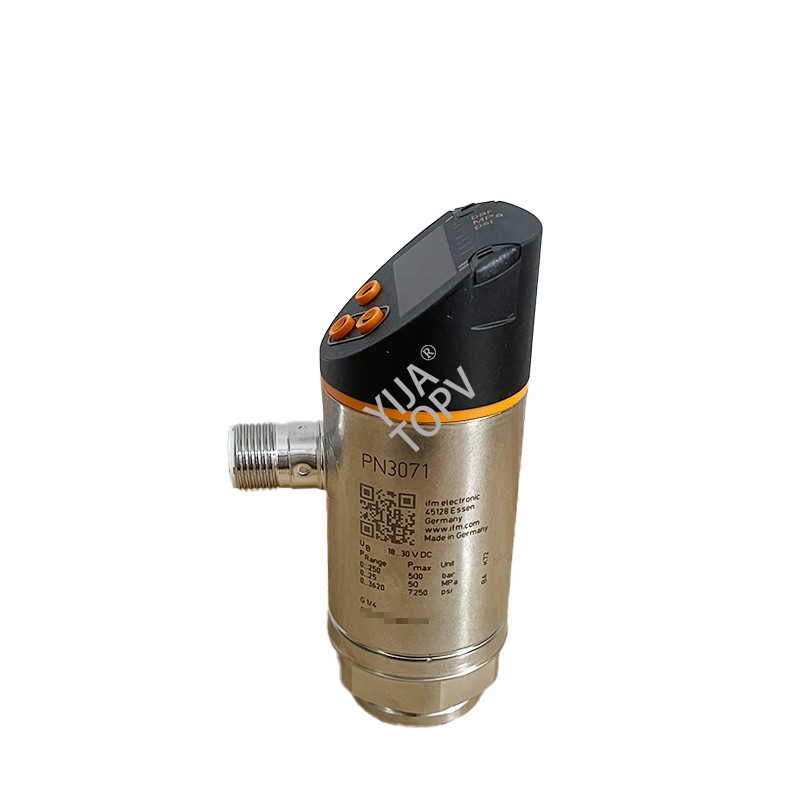

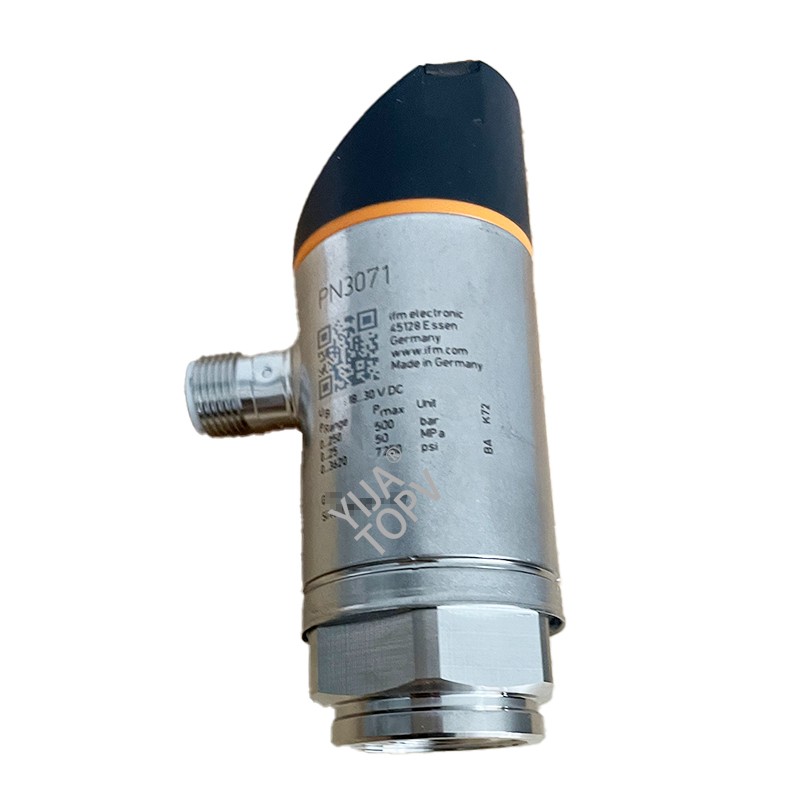

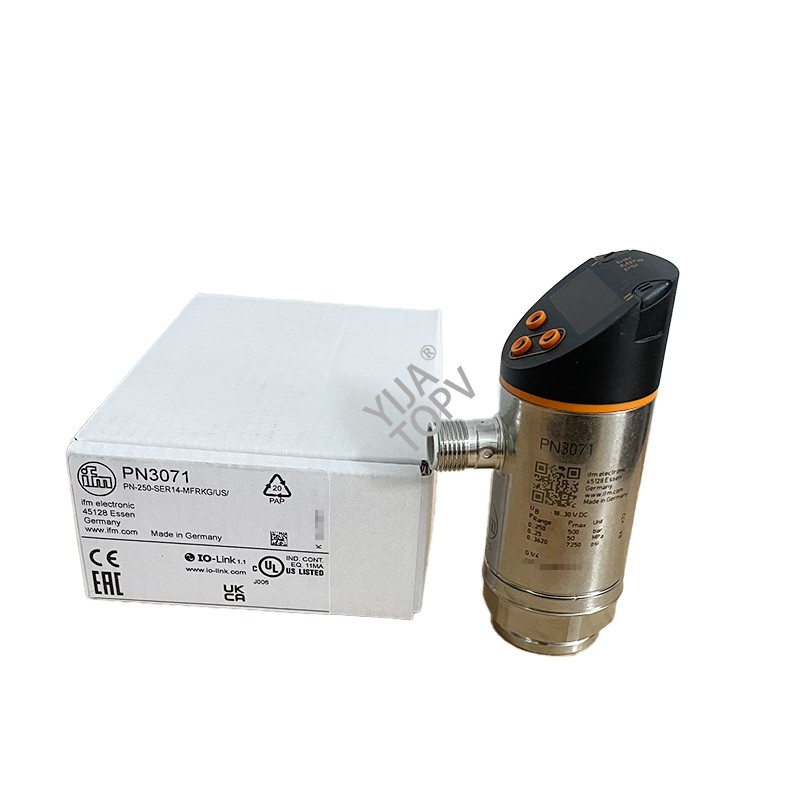

IFM Pressure Sensor with Display PN3071

  • Product Item：20250804001
  • Number of inputs and outputs Number of digital outputs: 1; Number of analogue outputs: 1
  • Measuring range 0...250 bar
  • Process connection threaded connection G 1/4 internal thread M6 I
  • Special feature Gold-plated contacts
    • pressure sensor  , pressure switch
    Inquiry Send Email

    Description

     PN3071 PN-250-SER14-MFRKG/US/ /V  Pressure sensor with display

    • Red/green display for clear identification of the acceptable range
    • The process connection can be rotated for optimum alignment
    • With long-term stability thanks to high overload protection
    • Robust design for use in harsh industrial environments
    • Convenient operation via buttons or parameter setting via IO-Link
    • Programmable switching output with IO-Link and analogue output
    Product characteristics
    Number of inputs and outputs Number of digital outputs: 1; Number of analogue outputs: 1
    Measuring range 0...250 bar 0...3620 psi 0...25 MPa
    Process connection threaded connection G 1/4 internal thread M6 I
    Application
    Special feature Gold-plated contacts
    Measuring element metallic thin film cell
    Application for industrial applications
    Media liquids and gases
    Medium temperature[掳C] -25...80
    Min. bursting pressure 1200 bar 17400 psi 120 MPa
    Pressure rating 500 bar 7250 psi 50 MPa
    Vacuum resistance -1000 mbar -0.1 MPa
    Type of pressure relative pressure
    Electrical data
    Operating voltage[V] 18...30 DC; (to SELV/PELV)
    Current consumption[mA] < 35
    Min. insulation resistance[M惟] 100; (500 V DC)
    Protection class III
    Reverse polarity protection yes
    Power-on delay time[s] < 0.3
    Integrated watchdog yes
    Inputs / outputs
    Number of inputs and outputs Number of digital outputs: 1; Number of analogue outputs: 1
    Outputs
    Total number of outputs 2
    Output signal switching signal; analogue signal; IO-Link; (configurable)
    Electrical design PNP
    Number of digital outputs 1
    Output function normally open / normally closed; (parameterisable)
    Max. voltage drop switching output DC[V] 2.5
    Permanent current rating of switching output DC[mA] 150; (200 (...60 掳C) 250 (...40 掳C))
    Switching frequency DC[Hz] < 170
    Number of analogue outputs 1
    Analogue current output[mA] 4...20
    Max. load[惟] 500
    Analogue voltage output[V] 0...10
    Min. load resistance[惟] 2000
    Short-circuit protection yes
    Type of short-circuit protection pulsed
    Overload protection yes



     
