Description

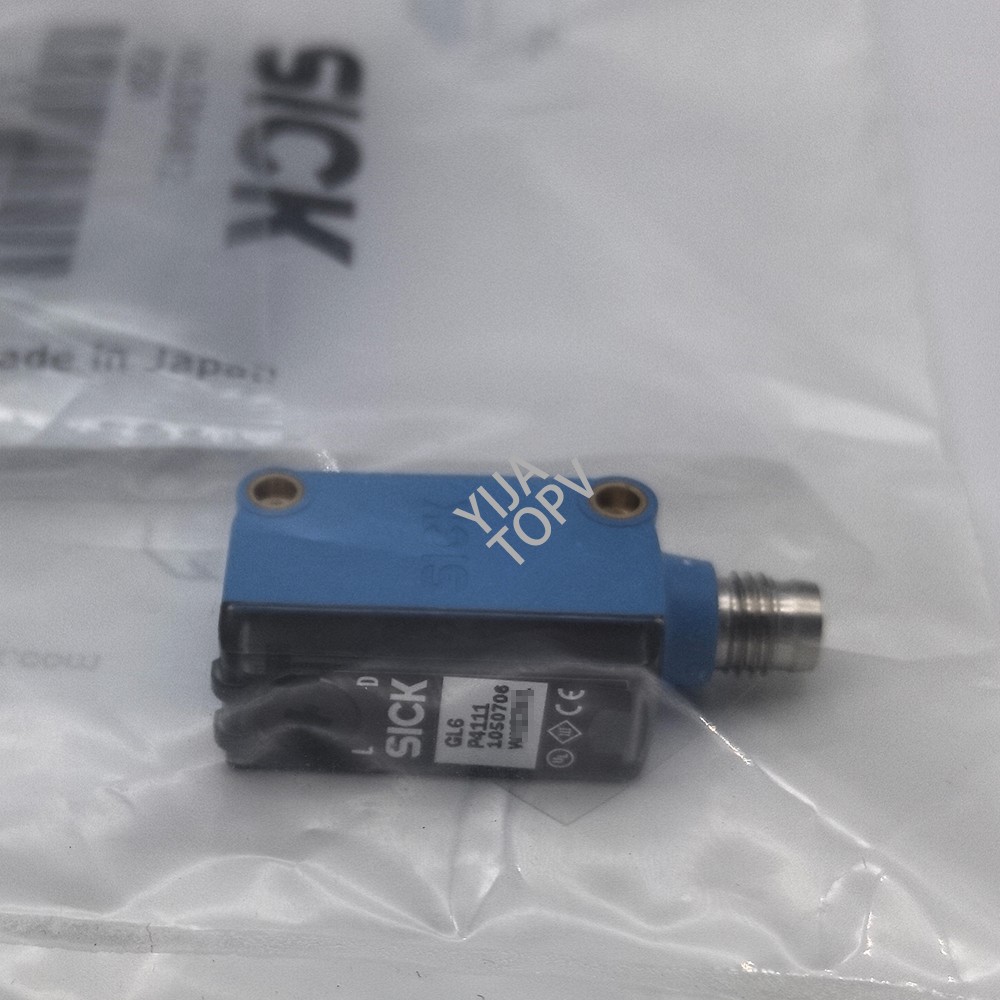

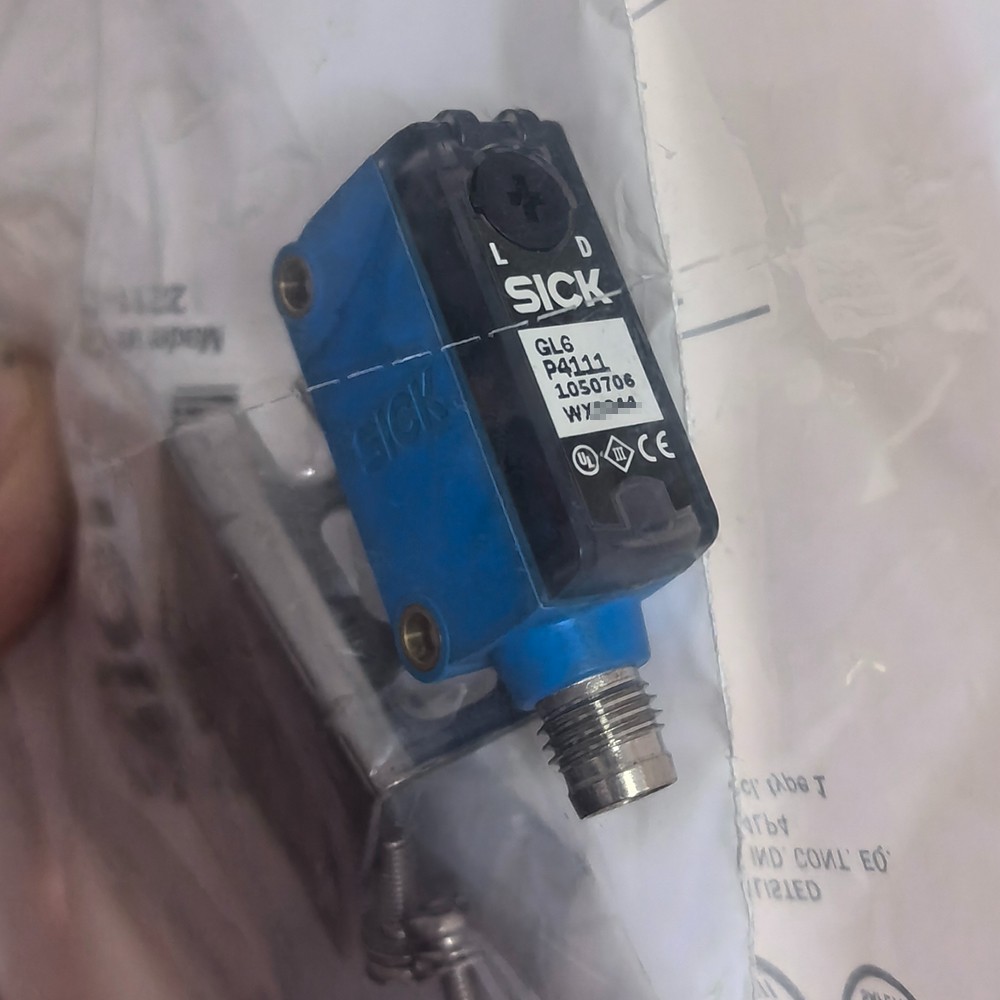

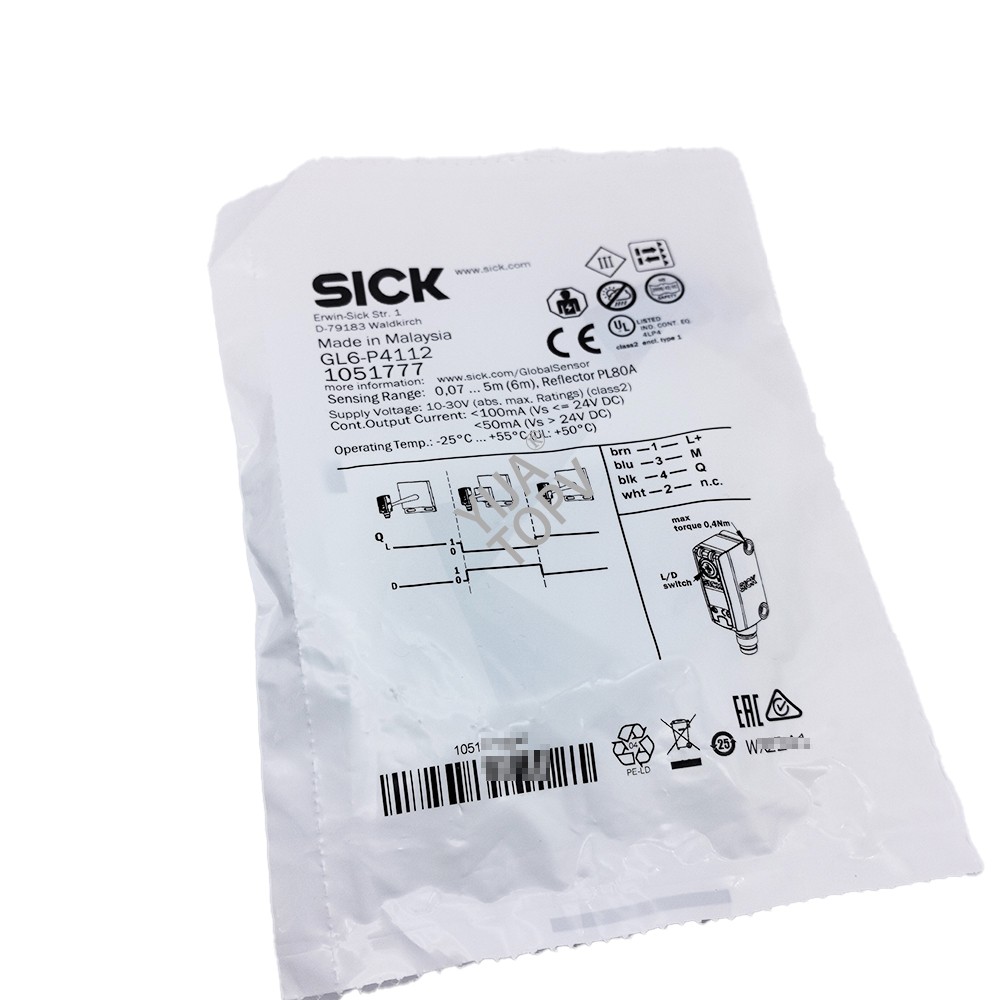

GL6-P4112 SICK original retro-reflective photoelectric sensor
The G6 Global photoelectric sensor is enclosed in a miniature housing and provides an optimal price-performance ratio. This sensor provides outstanding sensing performance using a standard 1-inch hole distance. With PinPoint LEDs, metal inserts for mounting, large indicator LEDs, large user-friendly adjustment potentiometers, an IP 67 enclosure rating and the very latest SICK ASIC technology, this is truly a high performance sensor in a small package.
Features
●PinPoint LED for a Bright, Precise Light Spot
●Durable Metal Threaded Inserts
●SICK ASIC Technology - The Result of Decades of Experience in Photoelectric Sensors
●Large, User-Friendly Potentiometer
●Large, Bright Indicator LEDs
●IP 67 Enclosure Rating
Features
Functional principle
Photoelectric retro-reflective sensor
Functional principle detail
With minimum distance to reflector (dual lens system)
Sensing range max.
0.03 m ... 6 m 1)
Sensing range
0.07 m ... 5 m 1)
Polarisation filters
Yes
Emitted beam
Light source
Type of light
Light spot size (distance)
PinPoint LED 2)
Visible red light
Ø 8 mm (350 mm)
Key LED figures
Wave length
650 nm
Adjustment
None
Items supplied

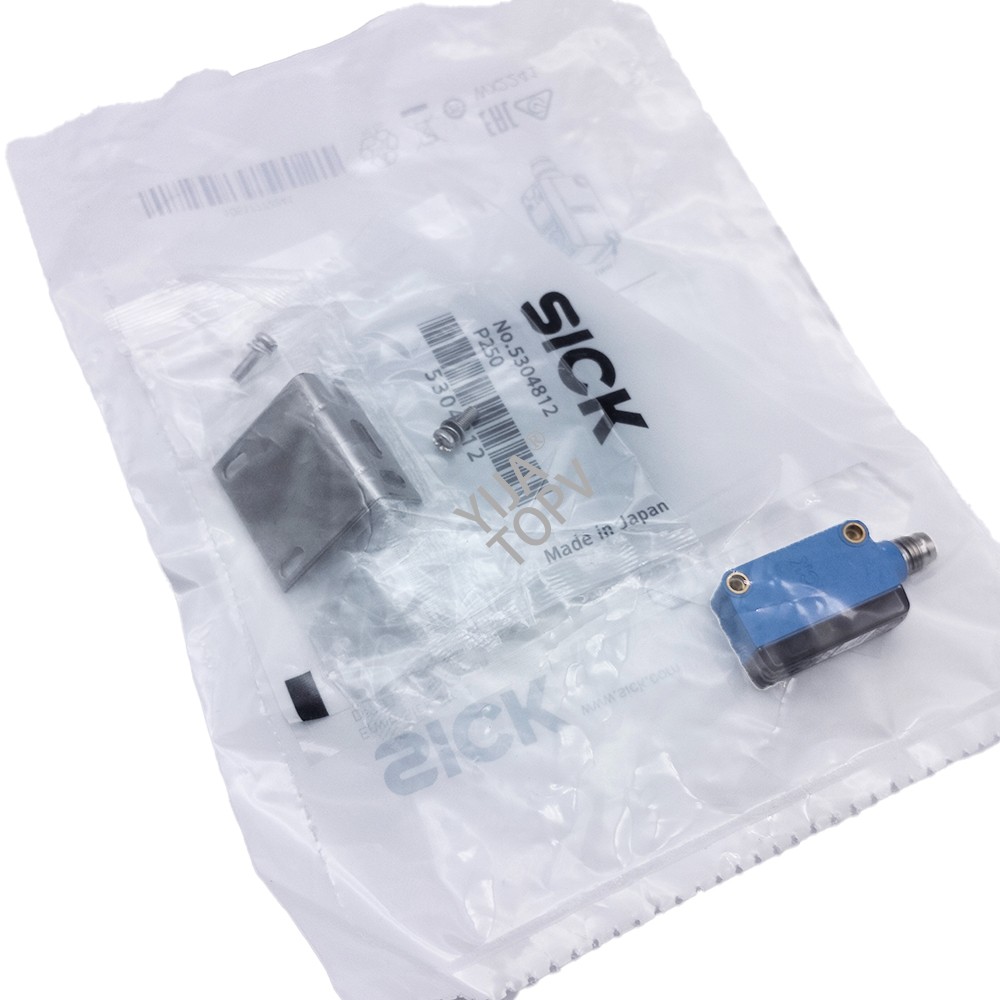

Stainless steel mounting bracket (1.4301/304) BEF-W100-A, Reflector P250
