Description

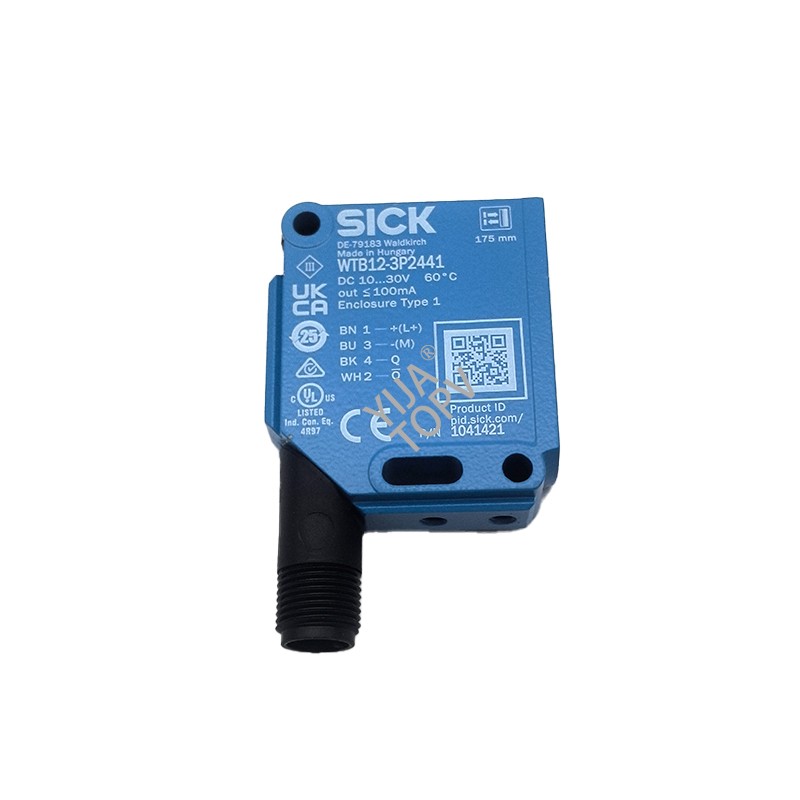

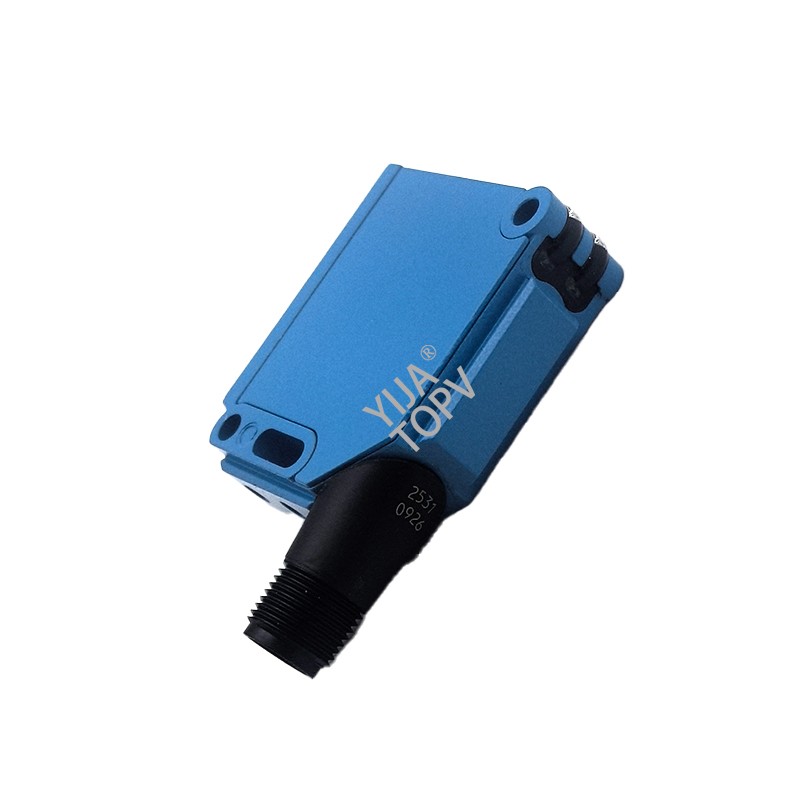

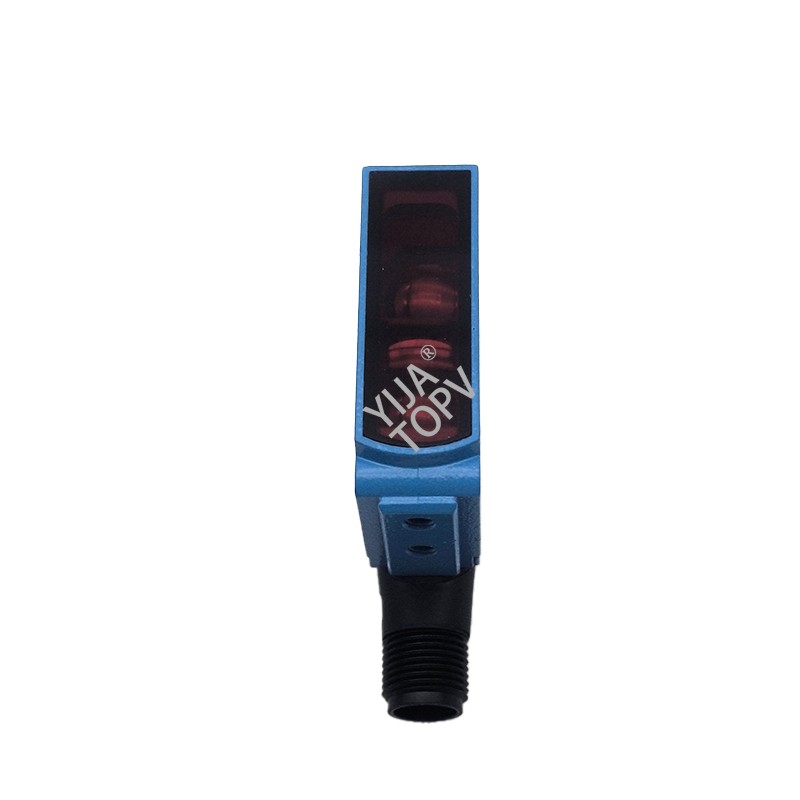

WTB12-3P2441 1041421 SICK Photoelectric proximity sensors
Functional principle
Photoelectric proximity sensor
Functional principle detail
Background suppression
Sensing range max.
30 mm ... 175 mm
Sensing range
35 mm ... 100 mm
Emitted beam
Light source
LED
Type of light
Visible red light
Light spot size (distance)
Ø 2 mm (60 mm)
Key LED figures
Wave length
660 nm
Adjustment
Potentiometer, 5 turns
Items supplied

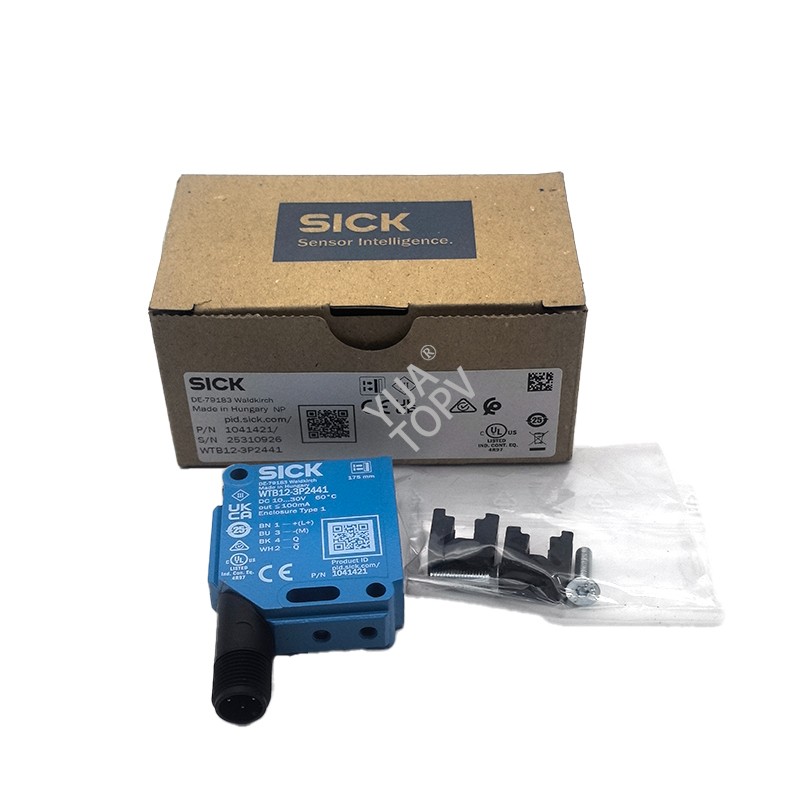

2 x clamps BEF-KH-W12, incl. screws
Supply voltage UB
10 V DC ... 30 V DC 1)
Ripple
< 5 Vpp
Current consumption
45 mA
Protection class
III
Digital output
Type
PNP
Switching mode
Light/dark switching
Signal voltage PNP HIGH/LOW
> Uv - 2,5 V / ca. 0 V
Output current Imax.
≤ 100 mA
Response time
≤ 330 µs 4)
Switching frequency
1,500 Hz 5)
Output function
Complementary
Circuit protection
A
C
D
