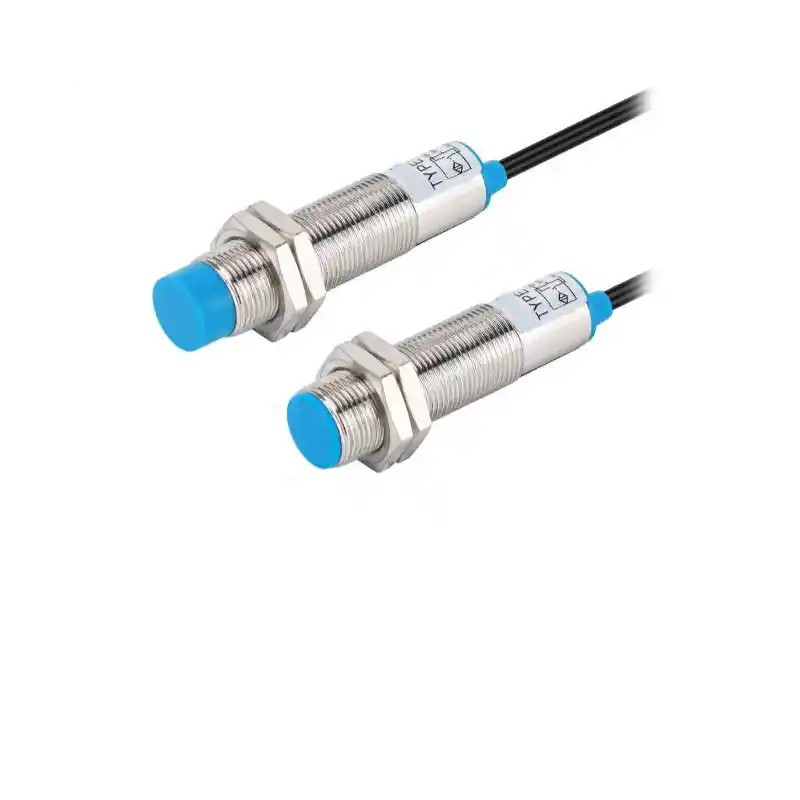

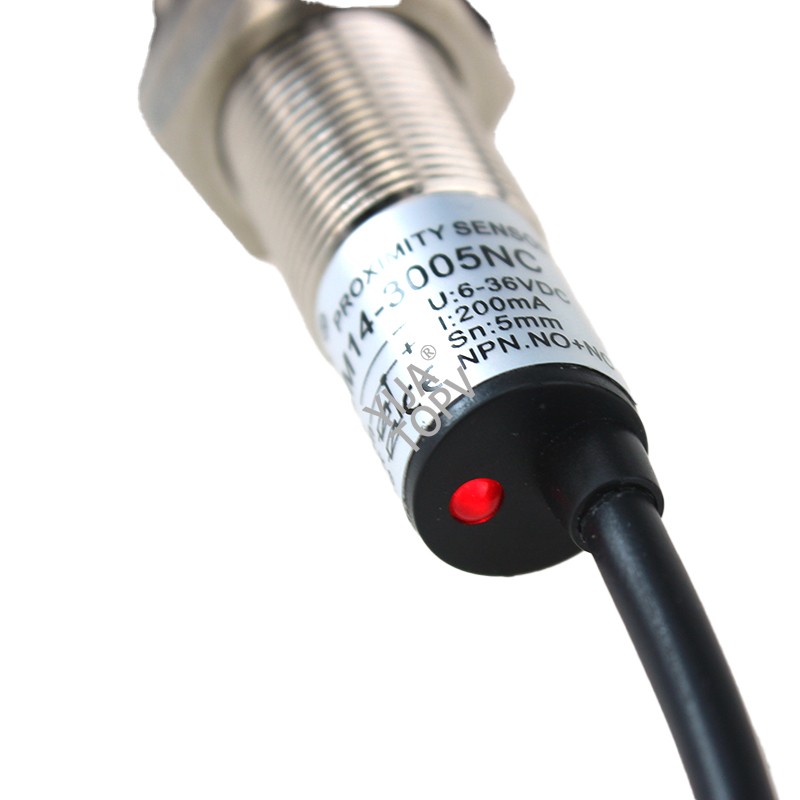

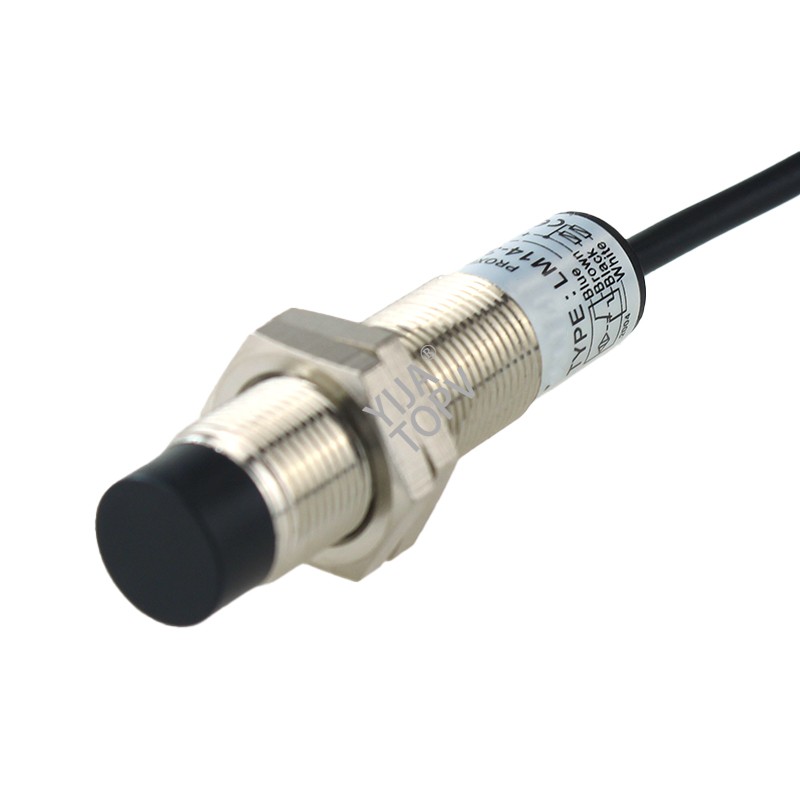

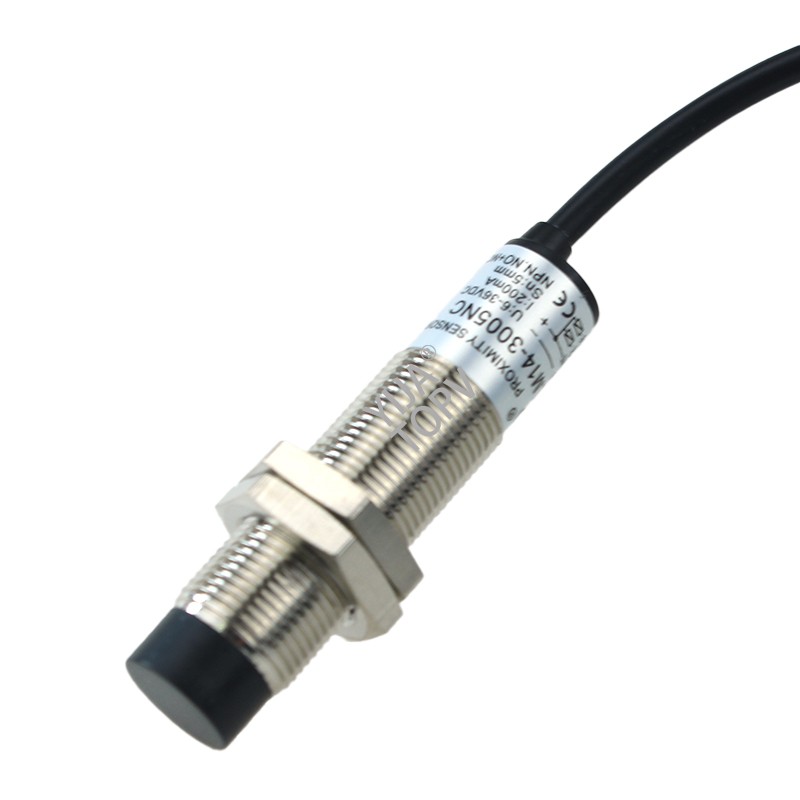

LM14 series M14 cylinder shape Inductive Proximity switch sensor
Standard detecting range : non-flush :5mm, flush : 3mm
LM14 Inductive Proximity Sensors: Compact, high-precision sensors designed for detecting metallic objects without physical contact.
Operate within 6-36VDC and 90-250VAC, suitable for harsh environments with diversified exterior structures.
Ideal for manufacturing, automotive, conveyor systems, packaging machinery, and agriculture applications, ensuring accurate detection and positioning.
Features include high precision, wide operating range, and durable inductive technology.
| Detecting rang 3mm | YIJATOPV part no. | other part no. | |||
| Flush | DC | NPN | NO | LM14-3003NA | LJ14A3-3-Z/BX |
| NC | LM14-3003NB | LJ14A3-3-Z/AX | |||
| NO+NC | LM14-3003NC | LJ14A3-3-Z/CX | |||
| PNP | NO | LM14-3003PA | LJ14A3-3-Z/BY | ||
| NC | LM14-3003PB | LJ14A3-3-Z/AY | |||
| NO+NC | LM14-3003PC | LJ14A3-3-Z/CY | |||
| 2 Wires | NO | LM14-3003LA | LJ14A3-3-Z/EX | ||
| NC | LM14-3003LB | LJ14A3-3-Z/DX | |||
| AC | SCR | NO | LM14-2003A | LJ14A3-3-J/EZ | |
| NC | LM14-2003B | LJ14A3-3-J/DZ | |||
| NO+NC | |||||
| Relay output | |||||
| Detecting rang 5mm | |||||
| Non-flush | DC | NPN | NO | LM14-3005NA | LJ14A3-5-Z/BX |
| NC | LM14-3005NB | LJ14A3-5-Z/AX | |||
| NO+NC | LM14-3005NC | LJ14A3-5-Z/CX | |||
| PNP | NO | LM14-3005PA | LJ14A3-5-Z/BY | ||
| NC | LM14-3005PB | LJ14A3-5-Z/AY | |||
| NO+NC | LM14-3005PC | LJ14A3-5-Z/CY | |||
| 2 Wires | NO | LM14-3005LA | LJ14A3-5-Z/EX | ||
| NC | LM14-3005LB | LJ14A3-5-Z/DX | |||
| AC | SCR | NO | LM14-2005A | LJ14A3-5-J/EZ | |
| NC | LM14-2005B | LJ14A3-5-J/DZ | |||
| NO+NC | |||||
| Relay output | |||||
| Sensor Characteristics | |||||
| Output current | DC | 150mA | |||
| SCR/relay | |||||
| Output voltage drop | DC(NPN;PNP)<3V;2wires type:<3.9V;AC type: AC <10V | ||||
| Consumption current | DC(NPN;PNP)DC 12V8mA;24V15mA;AC type: AC <10mA | ||||
| Standard detected object | 15×15×1(A3 Iron) | ||||
| Repeated precision | 0.02 | ||||
| Response Frequency | 300Hz/25Hz | ||||
| Working environment temperature | -25℃ ~+75℃ | ||||
| Insulation resistance | ≥50MΩ | ||||
| Shell material | Metal | ||||
| Protection grade | IP67 | ||||
