Description

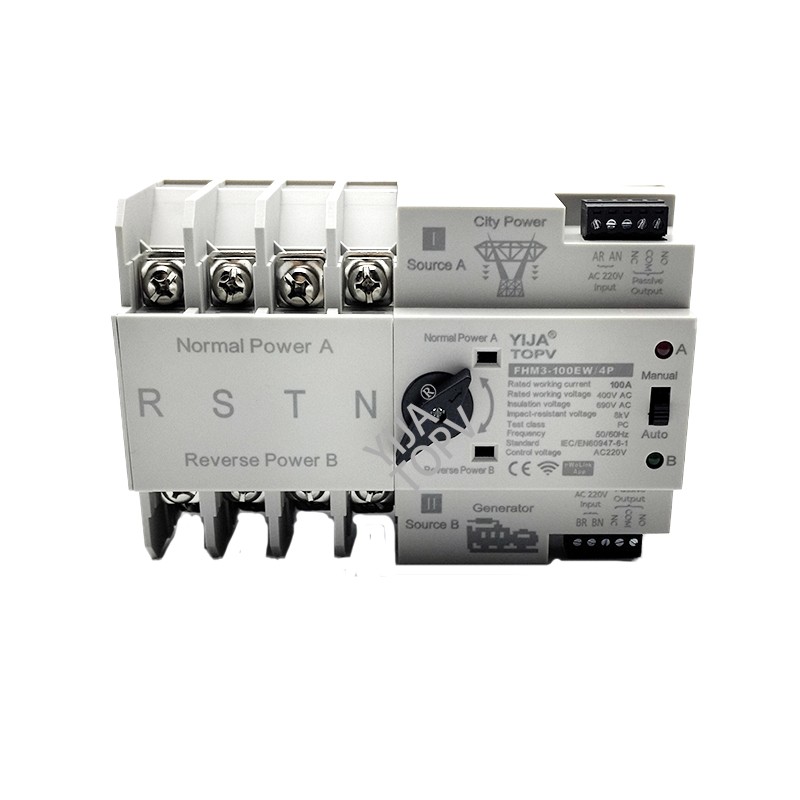

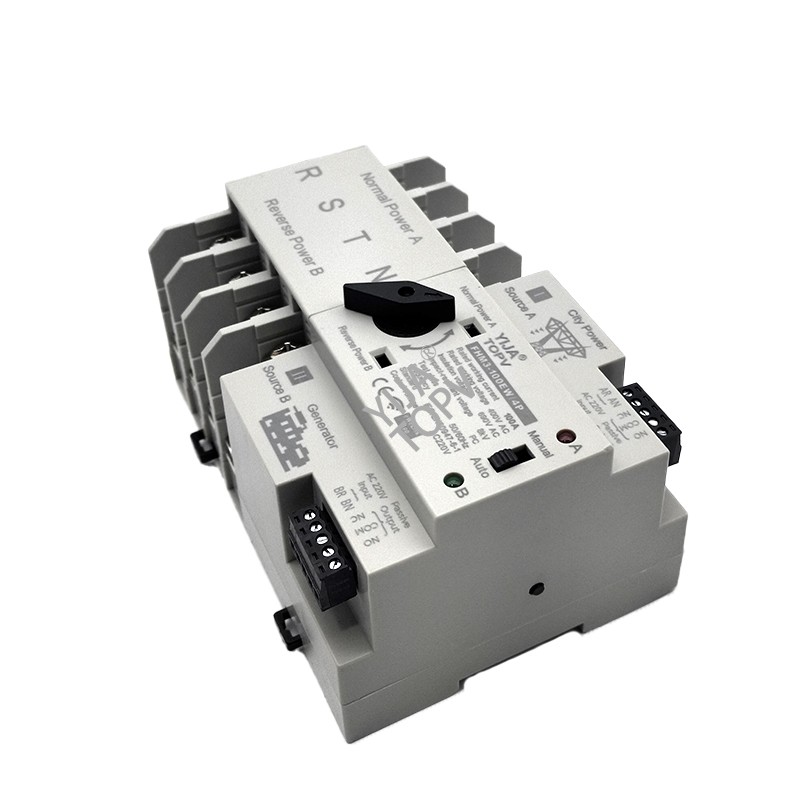

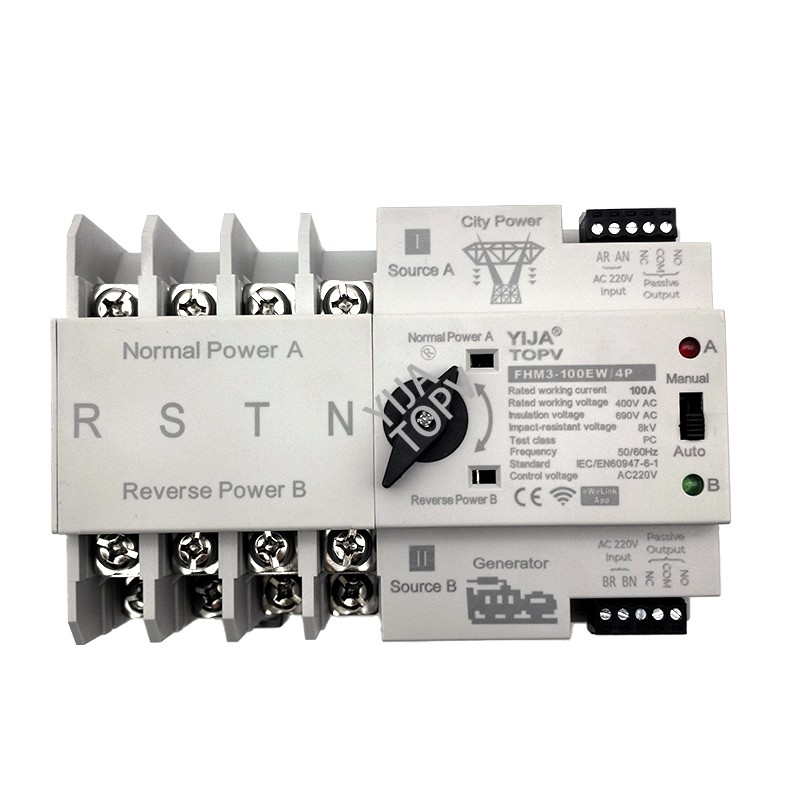

FHM3-100EW/4P 100A 4P Automatic Transfer Switch With WIFI function
Rated working current le(A)
32A
63A
100A
Rated insulation voltage Ui
AC690V、50Hz
Rated voltage Ue
2P(AC220V)、3P、4P(AC400V)
rank
PC grade:Can be manufactured and withstood without generating short circuit current
Category of use
AC-33iB
AC-31B
series
2P、3P、4P
category
Mains、photovoltaic
Rated frequency
50/60Hz
Appliance life
2000 cycles
Mechanical life
5000 cycles
Rated shortcicuit curent lq
50kA
Short-circuit protection (fuse)
RT16-00-63A
Rated impulse withstand voltage
8kV
Rated control voltage
AC220V、AC110V(ANSI)
Auxiliary circuit
AC220V/50Hz le=5y
Contactor transition time
<50ms
Operation transition time
<50ms
Return conversion time
<50ms
Power off time
<50ms
Terminal connection type
Round bus/round terminal
Meet the standard
IEC80947-8-1
Working condition
85-110%Us
Installation mode

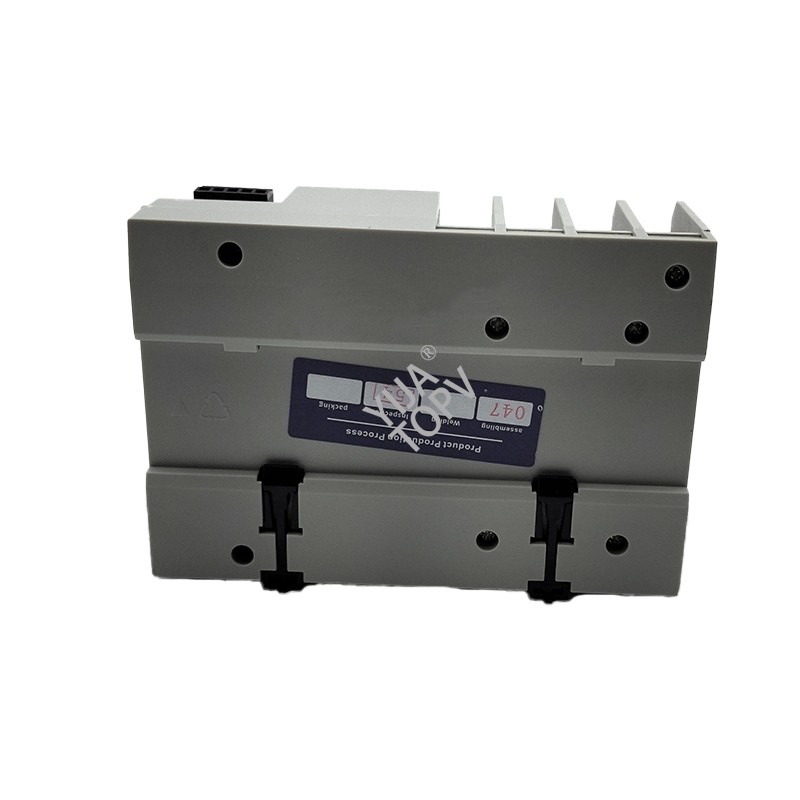

Mounted on 35mm DIN rail
