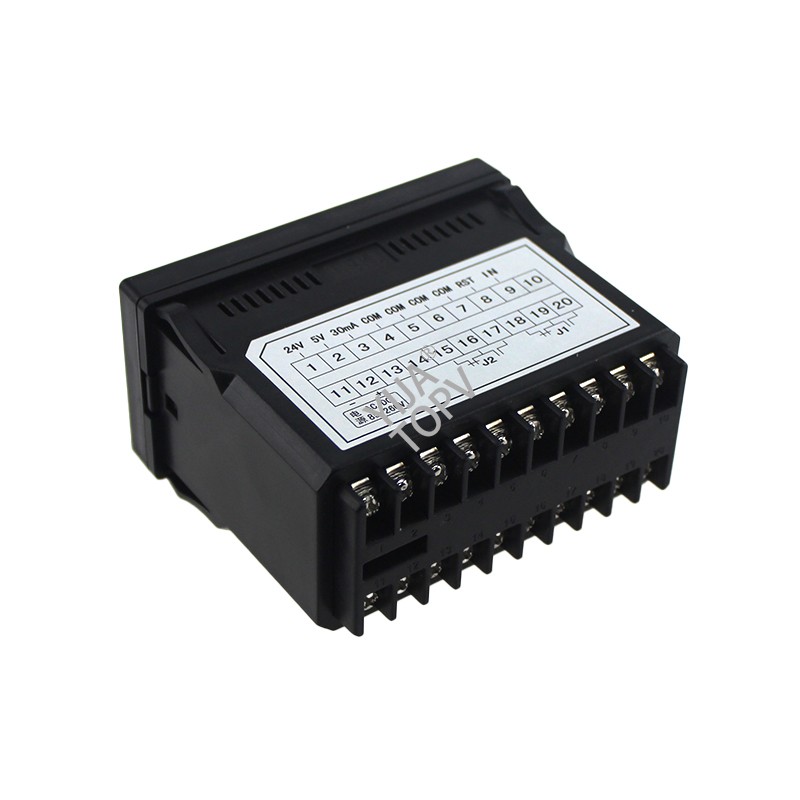

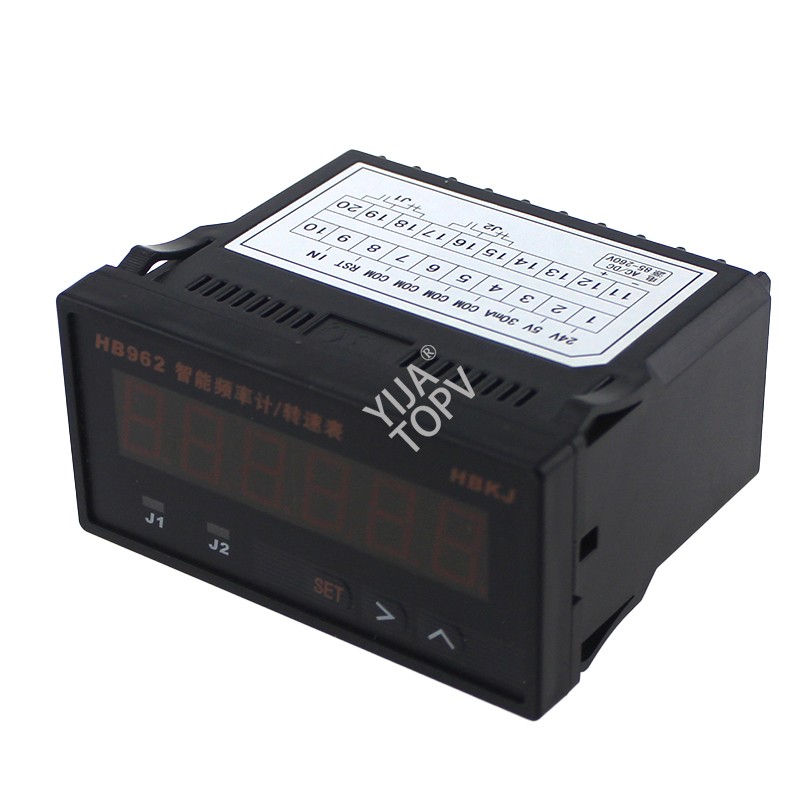

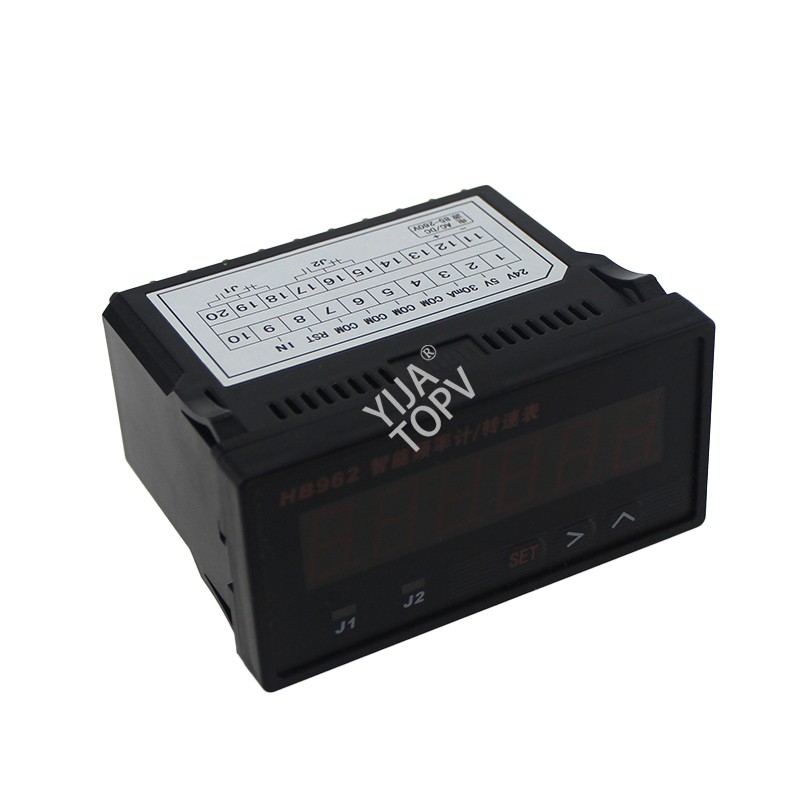

HB962 Frequency Meter/ Tachometer / Line Speed Meter
Frequency meter, tachometer, linear speed meter compatible
Compatible input of switching value and level pulse signal External photo tube, proximity switch, grating sensor, encoder, etc The alarm value can be set, with two independent relay outputs Multiple relay output modes are available to meet the measurement needs of various occasions
| HB962/HB722 parameters | |
| Working voltage | AC/DC85~260V(Other voltage can be customized) |
| Counting frequency | 1-50KHz |
| Dsiplay range | -199999~999999 |
| Over limit display | EEEEEEE |
| Value display | Dislay value=Input value *A/B+C |
| Feed output | DC24V DC5V DC 30mA |
| Relay contact capacity | AC250V/3A(resistive load) |
| Ratio range | Ratio A:-199999~999999 Ratio B:1~999999 |
| Overall dimension | HB962: 96*48*82mm, HB722:72*36*75MM |
| Installation size | HB962: 92*44mm, HB722:68*33mm |
| Working environment | 0-50℃;≤85%RH |
