Digital Audio Mercury Slip Rings A1230 for Heating Roller Filling Equipment and Strip Packing Machine

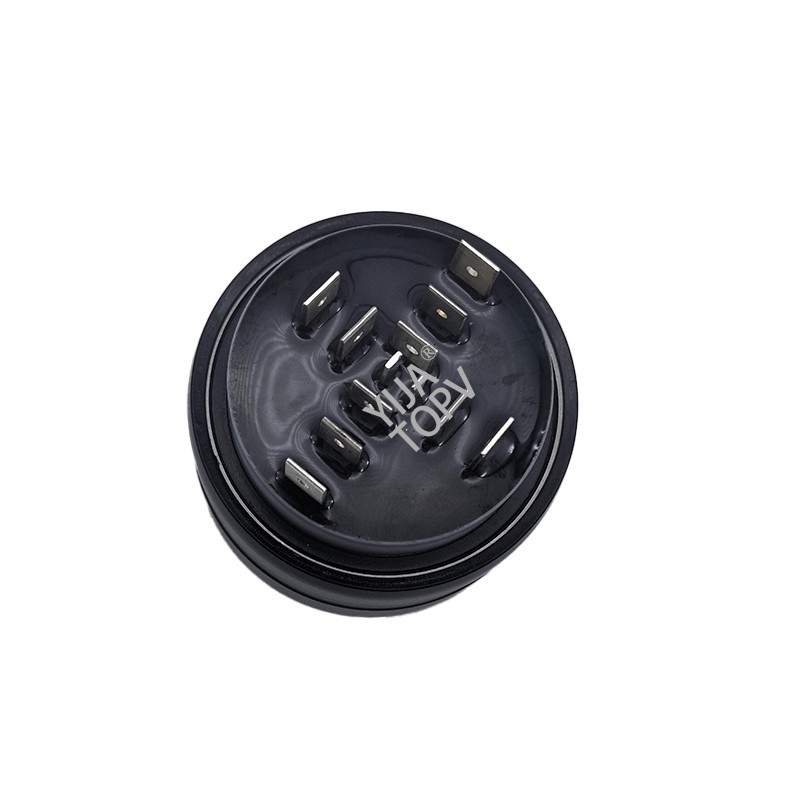

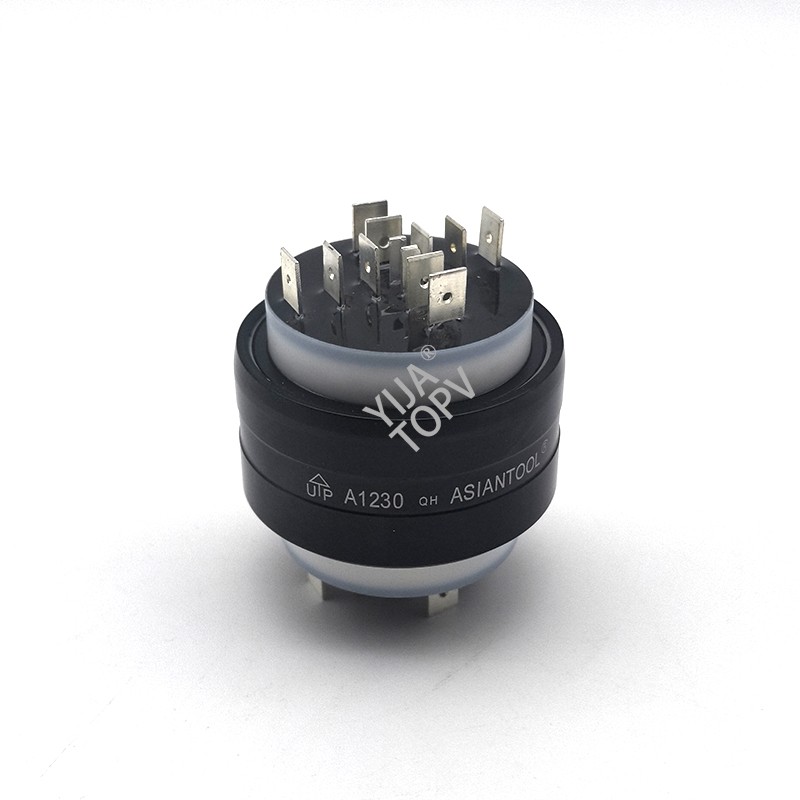

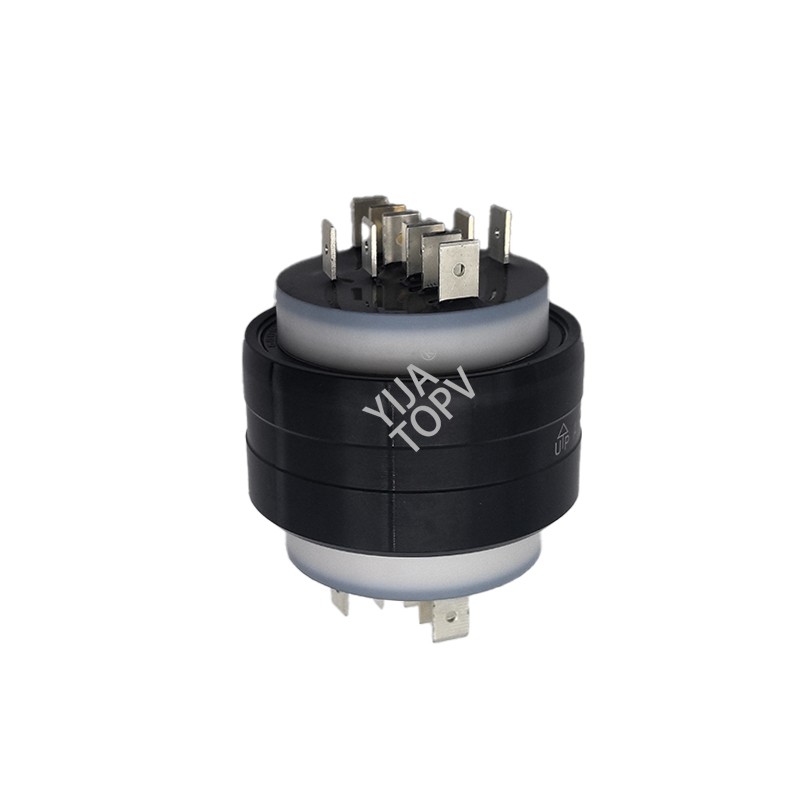

A1230 Mercury slip ring
The rotary joint is manufactured using special sealing, insulation and conductive technology.
Its shell is made of aluminum alloy or stainless steel and is suitable for the transmission and connection of electrical signals and power of any rotating body.
The fluctuation resistance is extremely small and there is no noise.
The contact resistance is less than 1 milliohm.
It does not require maintenance and is more durable than traditional brush slip rings, with a higher cost performance.
| Part no. | Poles | Current(A) | AC/DC(V) | MHZ | Contact Resistance | Max rotating speed | working temp. | torque | insolution resistance |
| Max rpm | Max/Min ℃ | (x10-3Nm) | |||||||
| A1H25S | 1 pole | 250 | -- | 200 | <1mΩ | 1200 | -29℃~60℃ | 250 | -- |
| A1H35S | 1 pole | 350 | -- | 200 | <1mΩ | 800 | -29℃~60℃ | 300 | -- |
| A1H25PS | 1 pole | 250 | -- | 200 | <1mΩ | 1200 | -29℃~60℃ | 250 | -- |
| A1H65PS | 1 pole | 650 | -- | 200 | <1mΩ | 200 | -29℃~60℃ | 1000 | -- |
| A1H150PS | 1 pole | 1500 | -- | 200 | <1mΩ | 100 | -29℃~60℃ | 2000 | -- |
| A2H | 2 pole | 30A/2 | 250 | 200 | <1mΩ | 1800 | -29℃~60℃ | 200 | >25MΩ |
| A3H | 3 pole | 30A/4 | 250 | 200 | <1mΩ | 1200 | -29℃~60℃ | 400 | >25MΩ |
| A4H | 4 pole | 30A/2+4A/2 | 250 | 200 | <1mΩ | 1200 | -29℃~60℃ | 400 | >25MΩ |
| A6H | 6 pole | 30A/4+4A/2 | 250 | 100 | <1mΩ | 300 | -29℃~60℃ | 700 | >25MΩ |
| A8H | 8 pole | 30A/6+4A/2 | 250 | 100 | <1mΩ | 200 | -29℃~60℃ | 1000 | >25MΩ |
| A1030 | 10 pole | 30A/8+4A/2 | 250 | 100 | <1mΩ | 100 | -29℃~60℃ | 1500 | >25MΩ |
| A1230 | 12 pole | 30A/10+4A/2 | 250 | 100 | <1mΩ | 60 | -29℃~60℃ | 2000 | >25MΩ |
| A1M | 1 pole | 10A | -- | 200 | <1mΩ | 3600 | -29℃~60℃ | 35 | >25MΩ |
| A1M2 | 1 pole | 20A | -- | 200 | <1mΩ | 2000 | -29℃~60℃ | 50 | -- |
| A1M5 | 1 pole | 50A | -- | 200 | <1mΩ | 1800 | -29℃~60℃ | 70 | -- |
| A2S | 2 pole | 4A/2 | 250 | 200 | <1mΩ | 2000 | -29℃~60℃ | 75 | >25MΩ |
| A3S | 3 pole | 4A/4 | 250 | 200 | <1mΩ | 1800 | -29℃~60℃ | 100 | >25MΩ |
