Description

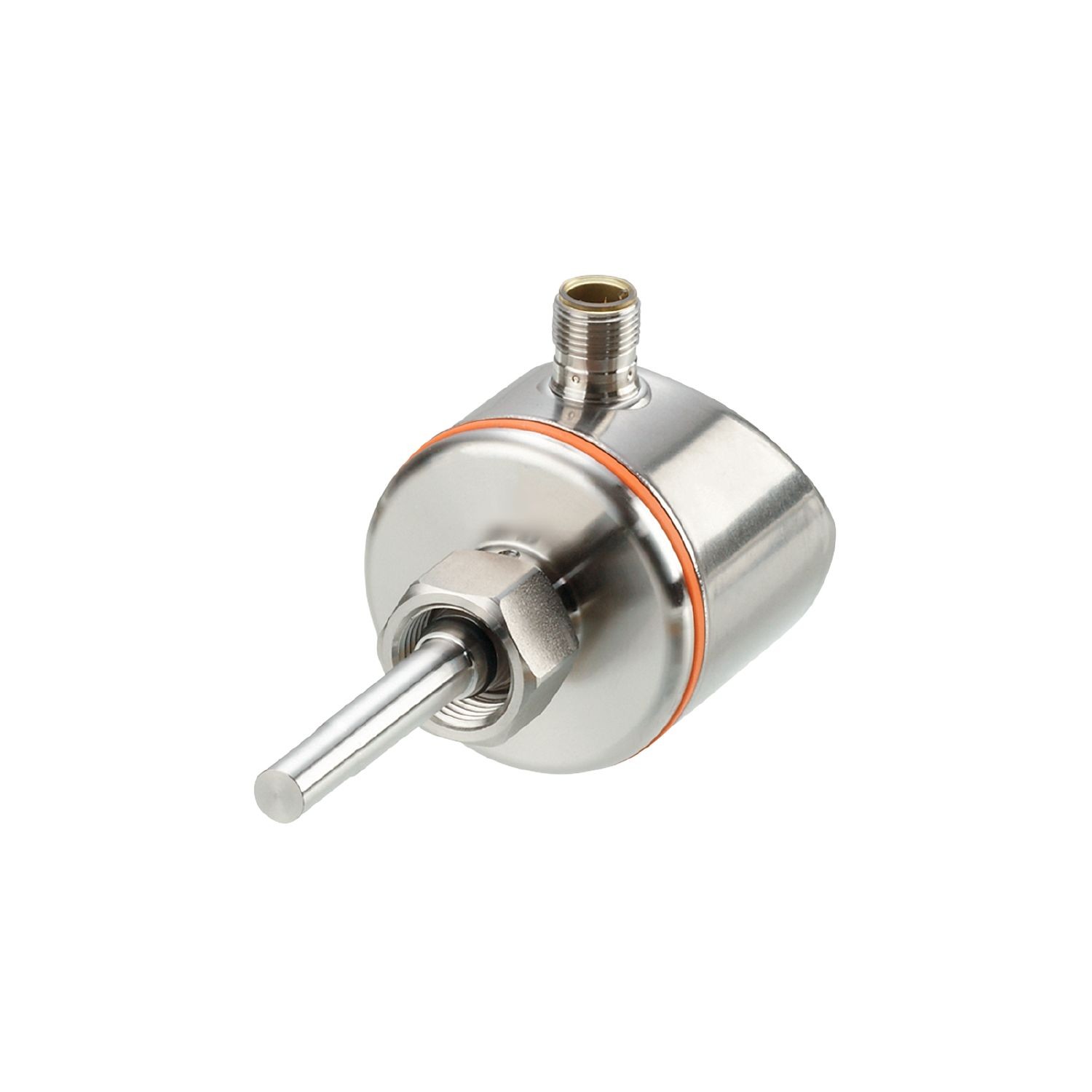

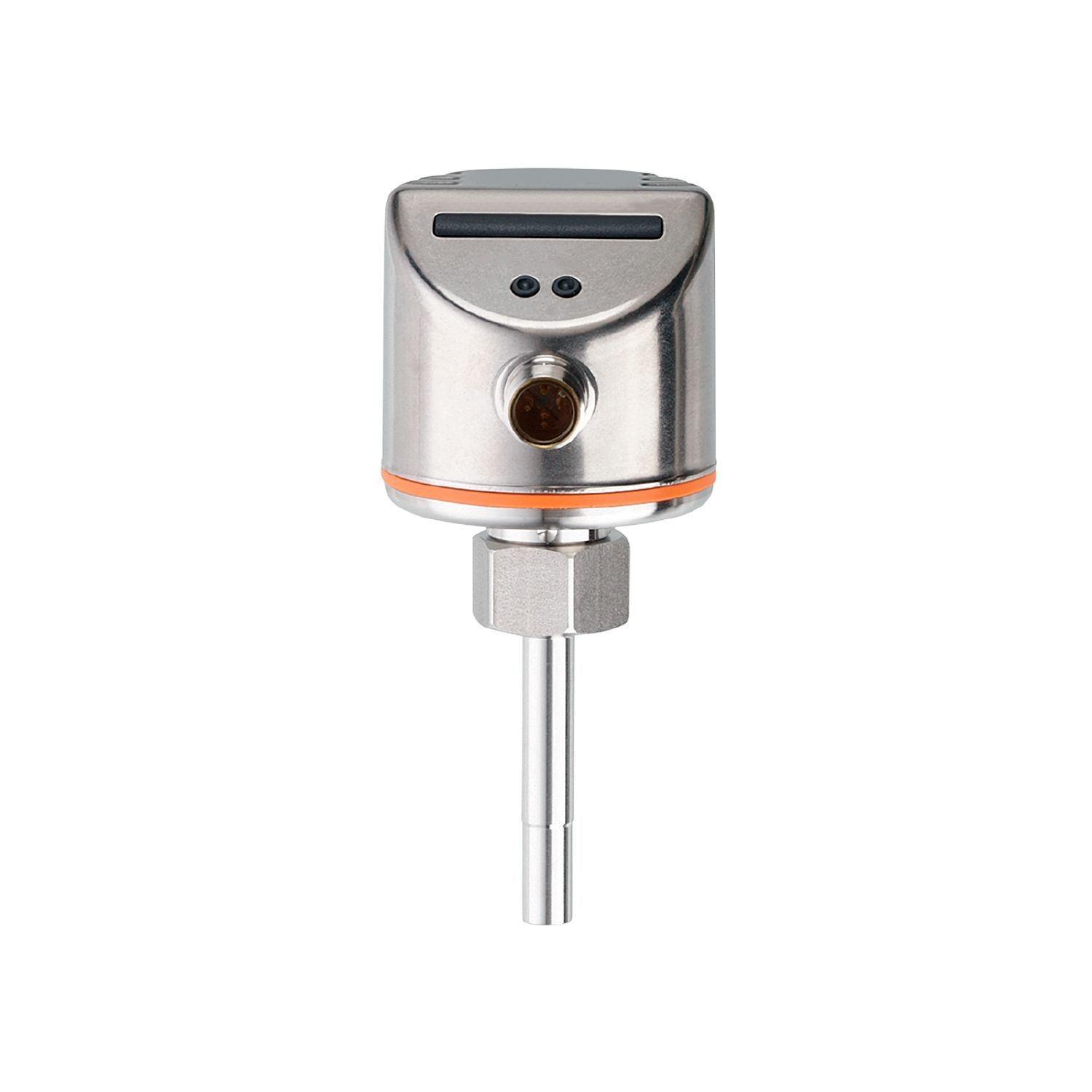

IFM Flow monitor SI5000 SID10ABBFPKG/US-100
- Reliable monitoring of liquids and gases in pipes
- Variable process connection using adapters
- Easy setting of the switch points for quick set-up
- Robust stainless steel housing for use in harsh industrial environments
- LED bar graph for indication of switch point and flow
| Product characteristics | ||
| Number of inputs and outputs | Number of digital outputs: 1 | |
| Process connection | threaded connection M18 x 1,5 internal thread | |
| Media | Liquids; Gases | |
| Medium temperature[C] | -25...80 | |
| Pressure rating | 30 bar | 3 MPa |
| Liquids | ||
| Medium temperature[C] | -25...80 | |
| Gases | ||
| Medium temperature[C] | -25...80 | |
| Operating voltage[V] | 19...36 DC | |
| Current consumption[mA] | < 60 | |
| Protection class | III | |
| Reverse polarity protection | yes | |
| Power-on delay time[s] | 10 | |
| Number of inputs and outputs | Number of digital outputs: 1 | |
| Total number of outputs | 1 | |
| Output signal | switching signal | |
| Electrical design | PNP | |
| Number of digital outputs | 1 | |
| Output function | normally open / normally closed; (parameterisable) | |
| Max. voltage drop switching output DC[V] | 2.5 | |
| Permanent current rating of switching output DC[mA] | 250 | |
| Short-circuit protection | yes | |
| Type of short-circuit protection | pulsed | |
| Overload protection | yes | |
| Probe length L[mm] | 45 | |
| Liquids | ||
| Setting range[cm/s] | 3...300 | |
| Greatest sensitivity[cm/s] | 3...100 | |
| Gases | ||
| Setting range[cm/s] | 200...3000 | |
| Greatest sensitivity[cm/s] | 200...800 | |
| Repeatability[cm/s] | 1...5 | |
| Note on repeatability | for water 5...100 cm/s; 25 C | |
| Factory setting | ||
| Temperature drift[cm/s x 1/K] | 0.1; (for water 5...100 cm/s; 10...70 C) | |
| Temperature gradient[K/min] | 300 | |
| Switch point accuracy[cm/s] | ± 2...± 10; (for water 5...100 cm/s; 25 °C; Factory setting) | |
| Hysteresis[cm/s] | 2...5; (for water 5...100 cm/s; 25C; Factory setting) | |
| Response time[s] | 1...10 | |
| Liquids | ||
| Response time[s] | 1...10 | |
| Gases | ||
| Response time[s] | 1...10 | |
